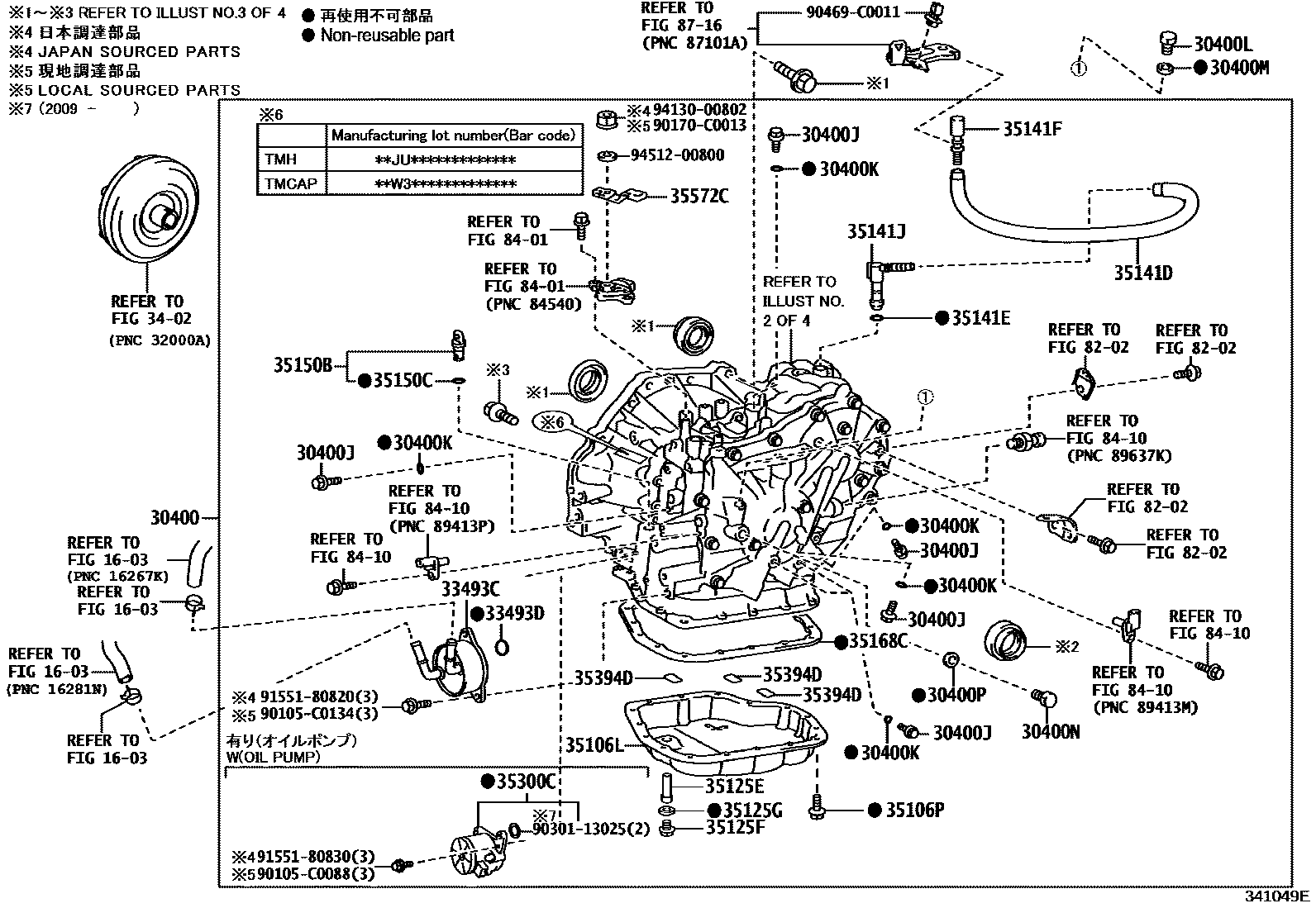

Toyota LEVIN/HYBRID — TRANSAXLE ASSY(CVT)
1603
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
K320,AISIN AW:REF.ILLUST
K321
K313,TMH:REFER TO ILLUST.
30400JPLUG, TRANSAXLE HOLE
30400KGASKET, TRANSAXLE HOLE PLUG
TMH:REFER TO ILLUST.
TMCAP:REFER ILLUST.
30400LPLUG , FILLER(CVT)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
(J)
(L)
30400MGASKET, FILLER PLUG(CVT)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
30400NPLUG, REFILL(CVT)
TMH:REFER TO ILLUST.
TMCAP:REFER ILLUST.
30400PGASKET, REFILL PLUG(CVT)
33493CCOOLER, TRANSMISSION OIL
(L)
(J)
33493DRING, O (FOR TRANSMISSION OIL COOLER)
(J)
(L)
3402
35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)
TMCAP:REFER ILLUST.
TMH:REFER TO ILLUST.
35106PBOLT(FOR TRANSAXLE OIL PAN)
35125TUBE, TRANSMISSION OIL FILLER, NO.1
35125ETUBE, OVERFLOW(CVT)
TMCAP:REFER ILLUST.
TMH:REFER TO ILLUST.
35125FPLUG, OVERFLOW(CVT)
TMCAP:REFER ILLUST.
TMH:REFER TO ILLUST.
35125GGASKET, OVERFLOW PLUG(CVT)
TMH:REFER TO ILLUST.
TMCAP:REFER ILLUST.
35141DHOSE(FOR BREATHER PLUG)
TMCAP:REFER ILLUST.
TMH:REFER TO ILLUST.
35141ERING, O(FOR BREATHER PLUG)
TMH:REFER TO ILLUST.
TMCAP:REFER ILLUST.
35141FPLUG, BREATHER, NO.1(CVT)
TMH:REFER TO ILLUST.
TMCAP:REFER ILLUST.
35141JPLUG, BREATHER, NO.2(CVT)
TMH:REFER TO ILLUST.
TMCAP:REFER ILLUST.
35150BPLUG ASSY, TRANSMISSION CASE
TMCAP:REFER ILLUST.
TMH:REFER TO ILLUST.
35150CRING, O (FOR TRANSMISSION CASE PLUG)
TMH:REFER TO ILLUST.
35168CGASKET, TRANSAXLE OIL PAN(CVT)
TMCAP:REFER ILLUST.
TMH:REFER TO ILLUST.
35300CPUMP ASSY, OIL W/MOTOR
35394DMAGNET, OIL CLEANER(CVT)
TMCAP:REFER ILLUST.
TMH:REFER TO ILLUST.
TMH:REFER TO ILLUST.
35572CLEVER, TRANSMISSION CONTROL SHAFT
TMH:REFER TO ILLUST.
TMCAP:REFER ILLUST.
8202
8401
8410
8716
90105C0088
main90105-C0088
90105C0134
main90105-C0134
90170C0013
main90170-C0013
9030113025
90469C0011
main90469-C0011
9155180820
9155180830
9413000802
9451200800
40 parts on this diagram · 16 diagrams in section
