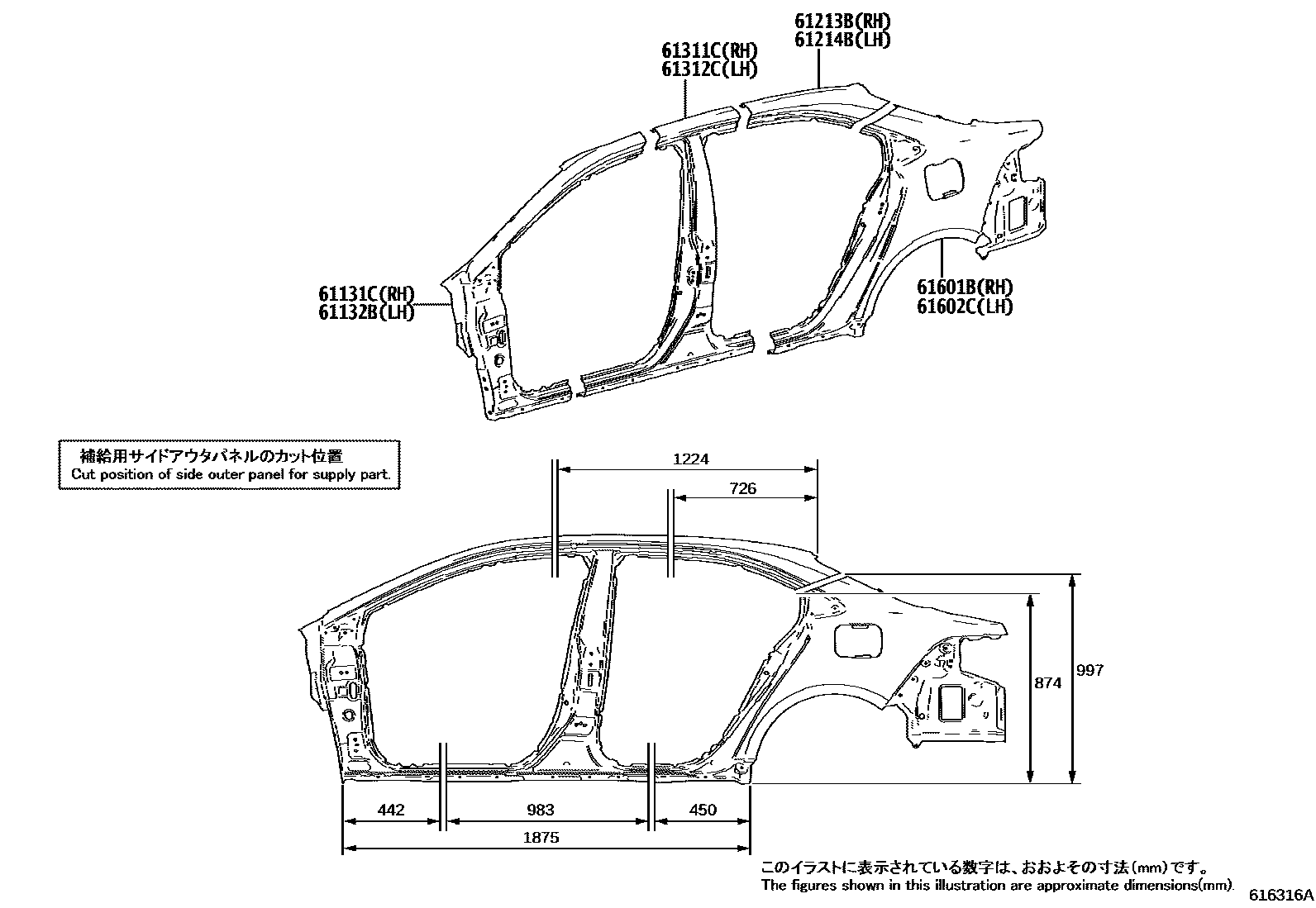

Toyota LEVIN/HYBRID — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

61131CPILLAR, FRONT BODY, OUTER RH

main61131-02460iNRE210,ZWE211201906-202003

sub61131-02461

main61131-02461iNRE210..G,N;MZEA11,ZWE211..CVT202004-202303

61132BPILLAR, FRONT BODY, OUTER LH

main61132-02480iNRE210,ZWE211201906-202003

sub61132-02481

main61132-02481iNRE210..G,N;MZEA11,ZWE211..CVT202004-202303

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-02290iNRE210,ZWE211201906-202003

sub61213-02291

main61213-02291iNRE210..G,N;MZEA11,ZWE211..CVT202004-202303

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-02300iNRE210,ZWE211201906-202003

sub61214-02301

main61214-02301iNRE210..G,N;MZEA11,ZWE211..CVT202004-202303

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-02400iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

61312CPANEL, REAR BODY FRONT OUTSIDE, LH

main61312-02400iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-02600iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-02630iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

8 parts on this diagram · 3 diagrams in section
