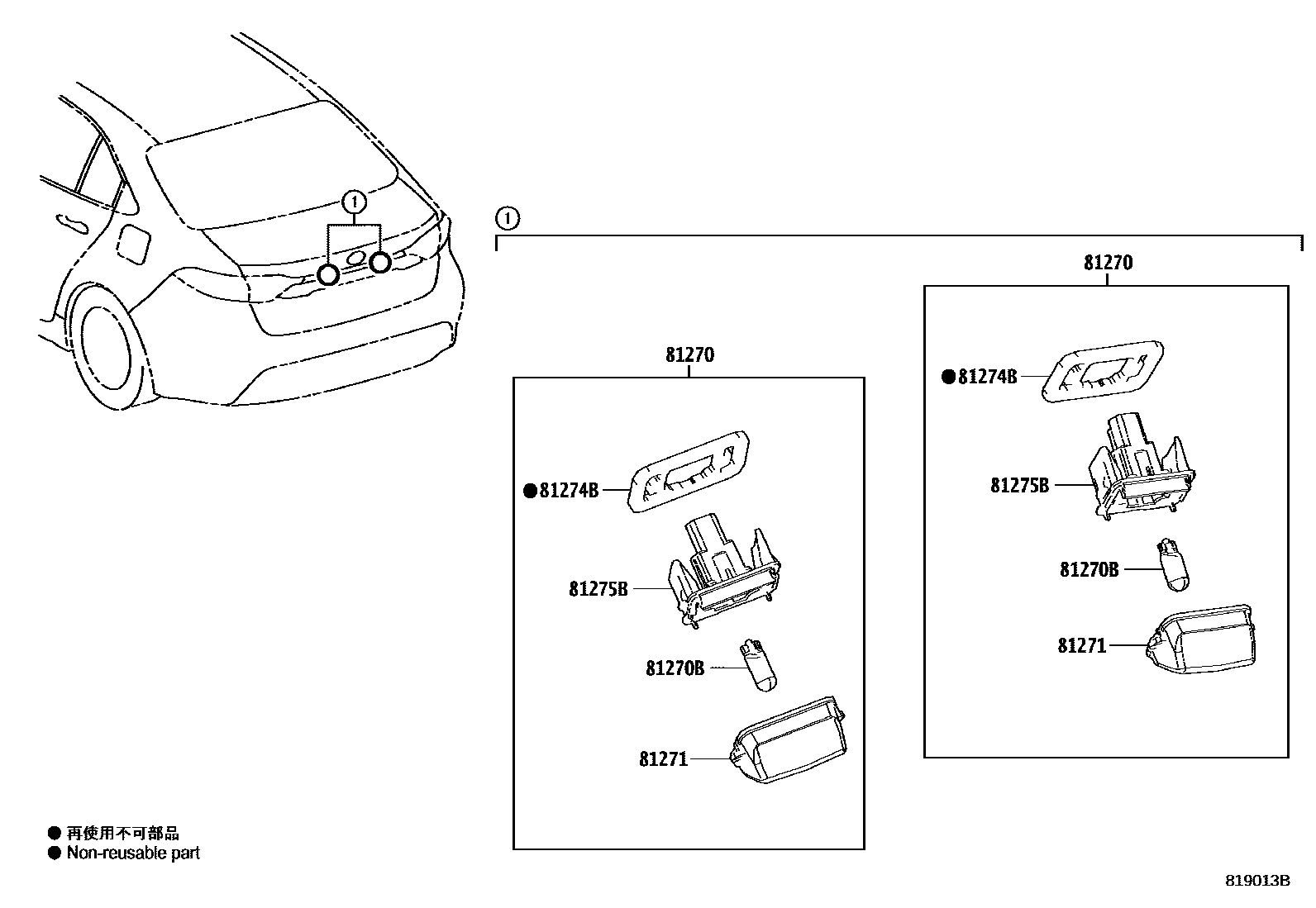

Toyota LEVIN/HYBRID — REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-0F020iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main81270-0F020iNRE210..E201906

main81270-0F020iMZEA17,ZWE219202304

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iNRE210..G,N;MZEA11,ZWE211..CVT¥110201906-202303

12V 5W

main99132-12050iNRE210..E¥110201906

12V 5W

main99132-12050iMZEA17,ZWE219¥110202304

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-0F020iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main81271-0F020iNRE210..E201906

main81271-0F020iMZEA17,ZWE219202304

81274BPACKING, LICENSE PLATE LAMP

main81274-0F020iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main81274-0F020iNRE210..E201906

main81274-0F020iMZEA17,ZWE219202304

81275BSOCKET PLUG, LICENSE PLATE LAMP

main81278-0F020iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main81278-0F020iNRE210..E201906

main81278-0F020iMZEA17,ZWE219202304

5 parts on this diagram · 1 diagram in section
