Toyota LEVIN/HYBRID — OIL COOLER & TUBE (HEV OR BEV OR FCEV)

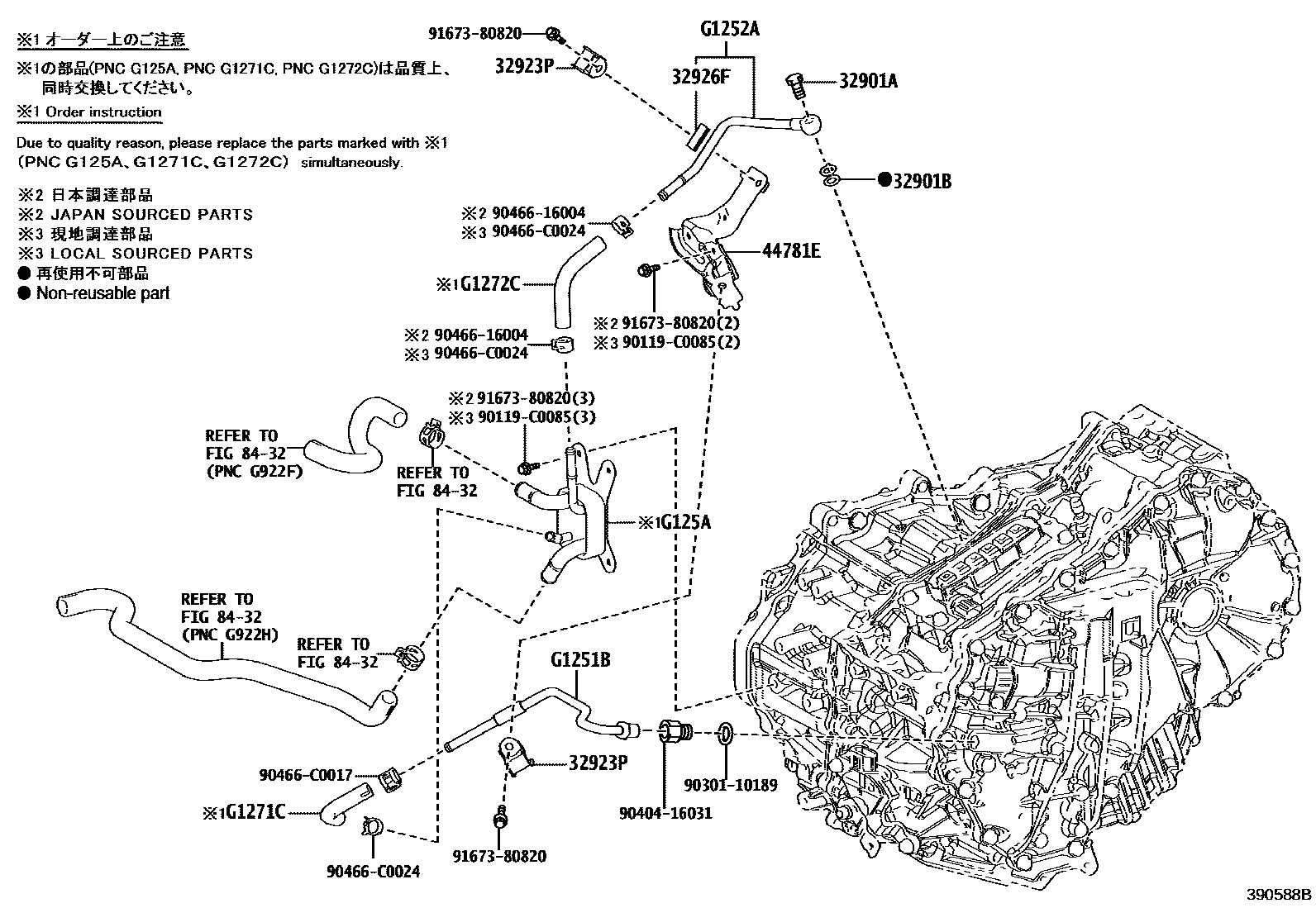

Parts diagram

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039i¥390201906-202303

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037i¥80201906-202303

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040i¥200201906-202303

32926FCUSHION, OIL COOLER TUBE

main32926-30020i¥170201906-202303

44781EBRACKET, HOSE

main44781-02020i201906-202303

8432

G1251BPIPE, MOTOR COOLING, NO.1

mainG125102020i201906-202303

G1252APIPE, MOTOR COOLING, NO.2

mainG125202020i201906-202303

G125ACOOLER, MOTOR COOLING

mainG125A02010i201906-202303

G1271CHOSE, MOTOR COOLING, NO.1

mainG127102020i201906-202303

G1272CHOSE, MOTOR COOLING, NO.2

mainG127202020i201906-202303

90119C0085

main90119-C0085

9030110189

main90301-10189¥170

9040416031

main90404-16031¥340

9046616004

main90466-16004¥180

90466C0017

main90466-C0017

90466C0024

main90466-C0024

9167380820

main91673-80820¥80

18 parts on this diagram · 1 diagram in section
