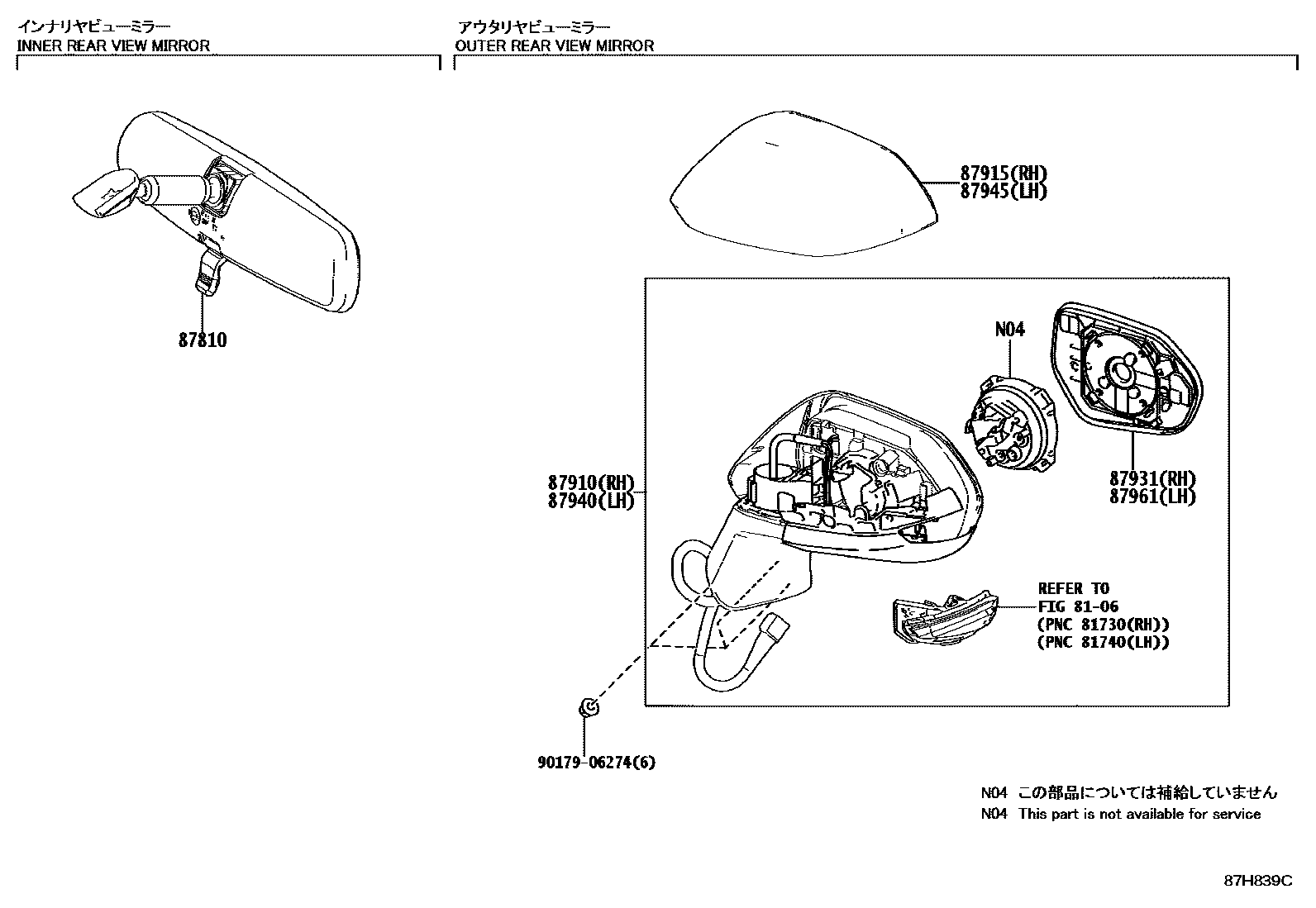

Toyota LEVIN/HYBRID — MIRROR

0001 1 0002 1

8106

87810MIRROR ASSY, INNER REAR VIEW

main87810-06220iMZEA11,NRE210,ZWE211..CVT..N201906-202303

main87810-06240iMZEA11,NRE210,ZWE211..CVT..N201906-202303

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

main87810-06240iNRE210..E201906

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-02P40-A0iNRE210,ZWE211201906-202007

WHITE PEARL CS.,070

main87910-02P40-A1iNRE210..E202007-202512

SUPER WHITE 2,040

main87910-02P40-A2iNRE210..E202007-202512

PLATINUM WHITE PEARL MC.,089

main87910-02P40-B0iNRE210..G,N;MZEA11,ZWE211201906-202304

SILVER ME.,1D4

main87910-02P40-B1iNRE210..E202304-202512

CELESTITE GRAY ME.,1K3

main87910-02P40-C0iNRE210,ZWE211201906-202007

ATTITUDE BLACK MC.,218

main87910-02P40-C1iMZEA17;ZWE219..G,N202304

BLACK MC.,040 ,089 ,209

main87910-02P40-C1iNRE210..G,N;MZEA11,ZWE211202007-202512

BLACK MC.,209

main87910-02P40-D0iNRE210..G,N;MZEA11,ZWE211201906-202512

RED M.M.,3R3

main87910-02P40-D1iMZEA17,ZWE219201906-202512

SCARLET ME.,3U4

main87910-02P40-E1iMZEA17,ZWE219202304-202512

STEEL BLONDE ME.,4X1

main87910-02P40-G0iNRE210..E201906-202304

CITRUS M.M.,6W2

main87910-02P40-J0iNRE210..G,N;MZEA11,ZWE211201906-202304

BLUE ME.,8X7

main87910-02P40-K0iZWE219201906-202407

DEEP AMETHYST M.M.,9AH

87915COVER, OUTER MIRROR, RH

main87915-02936iMZEA17,ZWE219202304

PAINT REQ.

main87915-02936iNRE210..E201906-202303

87931OUTER MIRROR, RH

main87902-02170iNRE210..G,N;MZEA11,ZWE211201906-202303

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-02P30-A0iNRE210,ZWE211201906-202007

WHITE PEARL CS.,070

main87940-02P30-A1iNRE210..G,N;MZEA11,ZWE211202007-202512

SUPER WHITE 2,040

main87940-02P30-A2iNRE210..E202007-202512

PLATINUM WHITE PEARL MC.,089

main87940-02P30-B0iNRE210..E201906-202304

SILVER ME.,1D4

main87940-02P30-B1iNRE210..E202304-202512

CELESTITE GRAY ME.,1K3

main87940-02P30-C0iNRE210,ZWE211201906-202007

ATTITUDE BLACK MC.,218

main87940-02P30-C1iNRE210..G,N;MZEA11,ZWE211202007-202512

BLACK MC.,209

main87940-02P30-C1iZWE219..E202304

BLACK MC.,040 ,089 ,209

main87940-02P30-D0iNRE210..G,N;MZEA11,ZWE211201906-202512

RED M.M.,3R3

main87940-02P30-D1iMZEA17,ZWE219201906-202512

SCARLET ME.,3U4

main87940-02P30-E1iNRE210..E202304-202512

STEEL BLONDE ME.,4X1

main87940-02P30-G0iNRE210..G,N;MZEA11,ZWE211201906-202304

CITRUS M.M.,6W2

main87940-02P30-J0iNRE210..G,N;MZEA11,ZWE211201906-202304

BLUE ME.,8X7

main87940-02P30-K0iZWE219201906-202407

DEEP AMETHYST M.M.,9AH

87945COVER, OUTER MIRROR, LH

main87945-02936iNRE210..G,N;MZEA11,ZWE211201906-202303

main87945-02936iMZEA17,ZWE219202304

PAINT REQ.

87961MIRROR OUTER, LH

main87907-02160iNRE210..G,N;MZEA11,ZWE211201906-202303

9017906274

main90179-06274¥70

9 parts on this diagram · 2 diagrams in section
