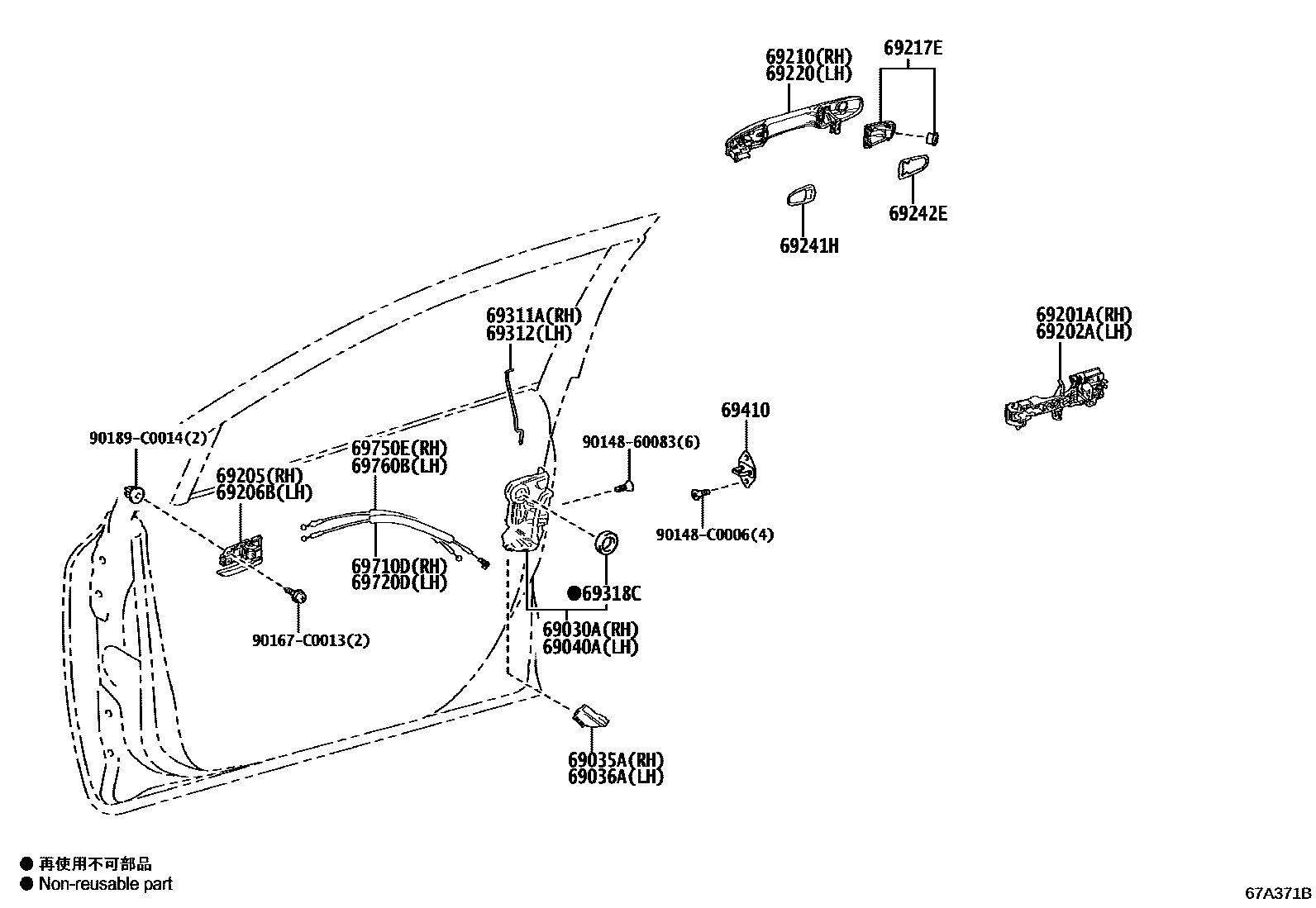

Toyota LEVIN/HYBRID — FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02540iMZEA17,ZWE219202304

main69030-02640iNRE210..E201906

main69030-02640iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02070iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69035-02070iNRE210..E201906

main69035-02090iMZEA17,ZWE219202304

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02070iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69036-02070iNRE210..E201906

main69036-02090iMZEA17,ZWE219202304

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02540iMZEA17,ZWE219202304

main69040-02600iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69040-02600iNRE210..E201906

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-02310iMZEA17,ZWE219..N202304

main69201-02410iMZEA17,ZWE219..E,G202304

main69201-02410iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69201-02410iNRE210..E201906

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-02250iMZEA17,ZWE219..N202304

main69202-02340iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69202-02340iMZEA17,ZWE219..E,G202304

main69202-02340iNRE210..E201906

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02470-B0iNRE210..E201906-202307

COOL GRAY,TRIM1#

main69205-02470-B0iNRE210..G,N;MZEA11,ZWE211201906-202303

COOL GRAY,TRIM1#

main69205-02470-C0iNRE210..E201906-202307

BLACK,TRIM2#

main69205-02470-C0iNRE210..G,N;MZEA11,ZWE211201906-202303

BLACK,TRIM2#

main69205-02500-B0iMZEA17,ZWE219..G202304

MD. GRAY,TRIM4#

main69205-02500-B1iNRE210..E202307

COOL GRAY,TRIM1#

main69205-02500-C0iNRE210..E202307

BLACK,TRIM2#

main69205-02500-C0iMZEA17,ZWE219202304

BLACK,TRIM2#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02450-B0iNRE210..G,N;MZEA11,ZWE211201906-202303

COOL GRAY,TRIM1#

main69206-02450-B0iNRE210..E201906-202307

COOL GRAY,TRIM1#

main69206-02450-C0iNRE210..G,N;MZEA11,ZWE211201906-202303

BLACK,TRIM2#

main69206-02450-C0iNRE210..E201906-202307

BLACK,TRIM2#

main69206-02480-B0iMZEA17,ZWE219..G202304

MD. GRAY,TRIM4#

main69206-02480-B1iNRE210..E202307

COOL GRAY,TRIM1#

main69206-02480-C0iMZEA17,ZWE219202304

BLACK,TRIM2#

main69206-02480-C0iNRE210..E202307

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-02460-A0iNRE210,ZWE211..E,G201906-202007

WHITE PEARL CS.,070

main69210-02460-A1iNRE210..E202007

PLATINUM WHITE PEARL MC.,089

main69210-02460-A1iNRE210..G;MZEA11,ZWE211..CVT..(E,G)202007-202303

PLATINUM WHITE PEARL MC.,089

main69210-02460-A2iNRE210..G;MZEA11,ZWE211..CVT..(E,G)202104-202303

SUPER WHITE 2,040

main69210-02460-A2iNRE210..E202104

SUPER WHITE 2,040

main69210-02460-B0iNRE210..G;MZEA11,ZWE211..CVT..(E,G)201906-202303

SILVER ME.,1D4

main69210-02460-B0iNRE210..E201906-202304

SILVER ME.,1D4

main69210-02460-B1iNRE210..E202304

CELESTITE GRAY ME.,1K3

main69210-02460-C0iNRE210,ZWE211..E,G201906-202007

ATTITUDE BLACK MC.,218

main69210-02460-C1iNRE210..E202007

BLACK MC.,209

main69210-02460-C1iNRE210..G;MZEA11,ZWE211..CVT..(E,G)202007-202303

BLACK MC.,209

main69210-02460-D0iNRE210..G;MZEA11,ZWE211..CVT..(E,G)201906-202303

RED M.M.,3R3

main69210-02460-D0iNRE210..E201906

RED M.M.,3R3

main69210-02460-D1iNRE210..G;MZEA11,ZWE211..CVT..(E,G)201906-202303

SCARLET ME.,3U4

main69210-02460-D1iNRE210..E201906

SCARLET ME.,3U4

main69210-02460-E1iNRE210..E202304

STEEL BLONDE ME.,4X1

main69210-02460-G0iNRE210..G;MZEA11,ZWE211..CVT..(E,G)201906-202303

CITRUS M.M.,6W2

main69210-02460-G0iNRE210..E201906-202304

CITRUS M.M.,6W2

main69210-02460-J0iNRE210..E201906-202304

BLUE ME.,8X7

main69210-02460-J0iNRE210..G;MZEA11,ZWE211..CVT..(E,G)201906-202303

BLUE ME.,8X7

main69210-02460-K0iZWE211..E,G201906-202303

DEEP AMETHYST M.M.,9AH

main69210-02520-A0iZWE219..G202304

SUPER WHITE 2,040

main69210-02520-A1iZWE219..G202304

PLATINUM WHITE PEARL MC.,089

main69210-02520-B0iZWE219..G202304

CELESTITE GRAY ME.,1K3

main69210-02520-C0iZWE219..G202304

BLACK MC.,209

main69210-02520-D0iZWE219..G202304

RED M.M.,3R3

main69210-02520-D1iZWE219..G202304-202407

SCARLET ME.,3U4

main69210-02520-E0iZWE219..G202304

STEEL BLONDE ME.,4X1

main69210-02520-K0iZWE219..G202304-202407

DEEP AMETHYST M.M.,9AH

main69210-0A120-A0iZWE219..E;MZEA17..E,G202304

PLATINUM WHITE PEARL MC.,089

main69210-0A120-A1iZWE219..E;MZEA17..E,G202304

SUPER WHITE 2,040

main69210-0A120-B3iZWE219..E;MZEA17..E,G202304

CELESTITE GRAY ME.,1K3

main69210-0A120-C0iZWE219..E202304

BLACK MC.,209

main69210-0A120-C0iMZEA17..E,G202304

BLACK MC.,040 ,089 ,209

main69210-0A120-D0iZWE219..E;MZEA17..E,G202304

RED M.M.,3R3

main69210-0A120-D2iZWE219..E;MZEA17..E,G202304-202407

SCARLET ME.,3U4

main69210-0A120-E2iZWE219..E;MZEA17..E,G202304

STEEL BLONDE ME.,4X1

main69210-0A120-K0iZWE219..E202304-202407

DEEP AMETHYST M.M.,9AH

main69211-06140-A0iMZEA11,NRE210,ZWE211..CVT..N202007-202303

PLATINUM WHITE PEARL MC.,089

main69211-06140-A1iNRE210,ZWE211..N201906-202007

WHITE PEARL CS.,070

main69211-06140-A2iMZEA11,NRE210,ZWE211..CVT..N202007-202303

SUPER WHITE 2,040

main69211-06140-B0iMZEA11,NRE210,ZWE211..CVT..N201906-202303

SILVER ME.,1D4

main69211-06140-C0iMZEA11,NRE210,ZWE211..CVT..N202007-202303

BLACK MC.,209

main69211-06140-C1iNRE210,ZWE211..N201906-202007

ATTITUDE BLACK MC.,218

main69211-06140-D1iMZEA11,NRE210,ZWE211..CVT..N201906-202303

RED M.M.,3R3

main69211-06140-D2iMZEA11,NRE210,ZWE211..CVT..N201906-202303

SCARLET ME.,3U4

main69211-06140-G0iMZEA11,NRE210,ZWE211..CVT..N201906-202303

CITRUS M.M.,6W2

main69211-06140-J0iMZEA11,NRE210,ZWE211..CVT..N201906-202303

BLUE ME.,8X7

main69211-06140-K0iZWE211..N201906-202303

DEEP AMETHYST M.M.,9AH

main69211-0E060-A0iMZEA17,ZWE219..N202304

PLATINUM WHITE PEARL MC.,089

main69211-0E060-A1iMZEA17,ZWE219..N202304

SUPER WHITE 2,040

main69211-0E060-B4iMZEA17,ZWE219..N202304

CELESTITE GRAY ME.,1K3

main69211-0E060-C0iMZEA17,ZWE219..N202304

BLACK MC.,209

main69211-0E060-D1iMZEA17,ZWE219..N202304

RED M.M.,3R3

main69211-0E060-D2iMZEA17,ZWE219..N202304-202407

SCARLET ME.,3U4

main69211-0E060-E0iMZEA17,ZWE219..N202304

STEEL BLONDE ME.,4X1

main69211-0E060-K0iZWE219..N202304-202407

DEEP AMETHYST M.M.,9AH

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-02600iMZEA17,ZWE219202304

BLACK,MARK = 6

main69217-06180iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69217-06180iNRE210..E201906

main69217-06180iMZEA17,ZWE219202304

MARK = FR

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-02510-A0iZWE219..G202304

SUPER WHITE 2,040

main69210-02510-A1iZWE219..G202304

PLATINUM WHITE PEARL MC.,089

main69210-02510-B0iZWE219..G202304

CELESTITE GRAY ME.,1K3

main69210-02510-C0iZWE219..G202304

BLACK MC.,209

main69210-02510-D0iZWE219..G202304

RED M.M.,3R3

main69210-02510-D1iZWE219..G202304-202407

SCARLET ME.,3U4

main69210-02510-E0iZWE219..G202304

STEEL BLONDE ME.,4X1

main69210-02510-K0iZWE219..G202304-202407

DEEP AMETHYST M.M.,9AH

main69210-06160-A0iNRE210..G;MZEA11,ZWE211..CVT..(E,G)202007-202303

PLATINUM WHITE PEARL MC.,089

main69210-06160-A0iNRE210..E202007

PLATINUM WHITE PEARL MC.,089

main69210-06160-A1iNRE210,ZWE211..E,G201906-202007

WHITE PEARL CS.,070

main69210-06160-A2iNRE210..E202104

SUPER WHITE 2,040

main69210-06160-A2iNRE210..G;MZEA11,ZWE211..CVT..(E,G)202104-202303

SUPER WHITE 2,040

main69210-06160-B0iNRE210..G;MZEA11,ZWE211..CVT..(E,G)201906-202303

SILVER ME.,1D4

main69210-06160-B0iNRE210..E201906-202304

SILVER ME.,1D4

main69210-06160-B3iNRE210..E202304

CELESTITE GRAY ME.,1K3

main69210-06160-C0iNRE210..G;MZEA11,ZWE211..CVT..(E,G)202007-202303

BLACK MC.,209

main69210-06160-C0iNRE210..E202007

BLACK MC.,209

main69210-06160-C1iNRE210,ZWE211..E,G201906-202007

ATTITUDE BLACK MC.,218

main69210-06160-D1iNRE210..G;MZEA11,ZWE211..CVT..(E,G)201906-202303

RED M.M.,3R3

main69210-06160-D1iNRE210..E201906

RED M.M.,3R3

main69210-06160-D2iNRE210..E201906

SCARLET ME.,3U4

main69210-06160-D2iNRE210..G;MZEA11,ZWE211..CVT..(E,G)201906-202303

SCARLET ME.,3U4

main69210-06160-E1iNRE210..E202304

STEEL BLONDE ME.,4X1

main69210-06160-G0iNRE210..E201906-202304

CITRUS M.M.,6W2

main69210-06160-G0iNRE210..G;MZEA11,ZWE211..CVT..(E,G)201906-202303

CITRUS M.M.,6W2

main69210-06160-J0iNRE210..G;MZEA11,ZWE211..CVT..(E,G)201906-202303

BLUE ME.,8X7

main69210-06160-J0iNRE210..E201906-202304

BLUE ME.,8X7

main69210-06160-K0iZWE211..E,G201906-202303

DEEP AMETHYST M.M.,9AH

main69210-0A110-A0iZWE219..E;MZEA17..E,G202304

PLATINUM WHITE PEARL MC.,089

main69210-0A110-A1iZWE219..E;MZEA17..E,G202304

SUPER WHITE 2,040

main69210-0A110-B3iZWE219..E;MZEA17..E,G202304

CELESTITE GRAY ME.,1K3

main69210-0A110-C0iMZEA17..E,G202304

BLACK MC.,040 ,089 ,209

main69210-0A110-C0iZWE219..E202304

BLACK MC.,209

main69210-0A110-D0iZWE219..E;MZEA17..E,G202304

RED M.M.,3R3

main69210-0A110-D2iZWE219..E;MZEA17..E,G202304-202407

SCARLET ME.,3U4

main69210-0A110-E2iZWE219..E;MZEA17..E,G202304

STEEL BLONDE ME.,4X1

main69210-0A110-K0iZWE219..E202304-202407

DEEP AMETHYST M.M.,9AH

main69211-02480-A0iMZEA17,ZWE219..N202304

SUPER WHITE 2,040

main69211-02480-A1iMZEA17,ZWE219..N202304

PLATINUM WHITE PEARL MC.,089

main69211-02480-B0iMZEA17,ZWE219..N202304

CELESTITE GRAY ME.,1K3

main69211-02480-C0iMZEA17,ZWE219..N202304

BLACK MC.,209

main69211-02480-D0iMZEA17,ZWE219..N202304

RED M.M.,3R3

main69211-02480-D1iMZEA17,ZWE219..N202304-202407

SCARLET ME.,3U4

main69211-02480-E0iMZEA17,ZWE219..N202304

STEEL BLONDE ME.,4X1

main69211-02480-K0iZWE219..N202304-202407

DEEP AMETHYST M.M.,9AH

main69211-06150-A0iMZEA11,NRE210,ZWE211..CVT..N202007-202303

PLATINUM WHITE PEARL MC.,089

main69211-06150-A1iNRE210,ZWE211..N201906-202007

WHITE PEARL CS.,070

main69211-06150-A2iMZEA11,NRE210,ZWE211..CVT..N202007-202303

SUPER WHITE 2,040

main69211-06150-B0iMZEA11,NRE210,ZWE211..CVT..N201906-202303

SILVER ME.,1D4

main69211-06150-C0iMZEA11,NRE210,ZWE211..CVT..N202007-202303

BLACK MC.,209

main69211-06150-C1iNRE210,ZWE211..N201906-202007

ATTITUDE BLACK MC.,218

main69211-06150-D0iMZEA11,NRE210,ZWE211..CVT..N201906-202303

RED M.M.,3R3

main69211-06150-D1iMZEA11,NRE210,ZWE211..CVT..N201906-202303

SCARLET ME.,3U4

main69211-06150-G0iMZEA11,NRE210,ZWE211..CVT..N201906-202303

CITRUS M.M.,6W2

main69211-06150-J0iMZEA11,NRE210,ZWE211..CVT..N201906-202303

BLUE ME.,8X7

main69211-06150-K0iZWE211..N201906-202303

DEEP AMETHYST M.M.,9AH

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-02270iMZEA17,ZWE219202304

MARK = F1

main69241-06120iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69241-06120iNRE210..E201906

main69241-06120iMZEA17,ZWE219202304

MARK = 015

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-02260iMZEA17,ZWE219202304

MARK = F2

main69242-06120iMZEA17,ZWE219202304

MARK = 015

main69242-06120iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69242-06120iNRE210..E201906

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-02400iNRE210..E201906

main69311-02400iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69311-02400iMZEA17,ZWE219202304

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-02400iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69312-02400iNRE210..E201906

main69312-02400iMZEA17,ZWE219202304

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-02030iMZEA17,ZWE219202304

main69318-51010iNRE210..G,N;MZEA11,ZWE211..CVT¥120201906-202303

main69318-51010iNRE210..E¥120201906

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0D020iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69410-0D020iNRE210..E201906

main69410-0D020iMZEA17,ZWE219202304

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-02410iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69710-02410iNRE210..E201906

main69710-02430iMZEA17,ZWE219202304

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-02410iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69710-02410iNRE210..E201906

main69710-02430iMZEA17,ZWE219202304

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-02440iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69750-02440iNRE210..E201906

main69750-02460iMZEA17,ZWE219202304

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-02440iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69750-02440iNRE210..E201906

main69750-02460iMZEA17,ZWE219202304

9014860083

main90148-60083¥60

90148C0006

main90148-C0006

90167C0013

main90167-C0013

90189C0014

main90189-C0014

25 parts on this diagram · 2 diagrams in section
