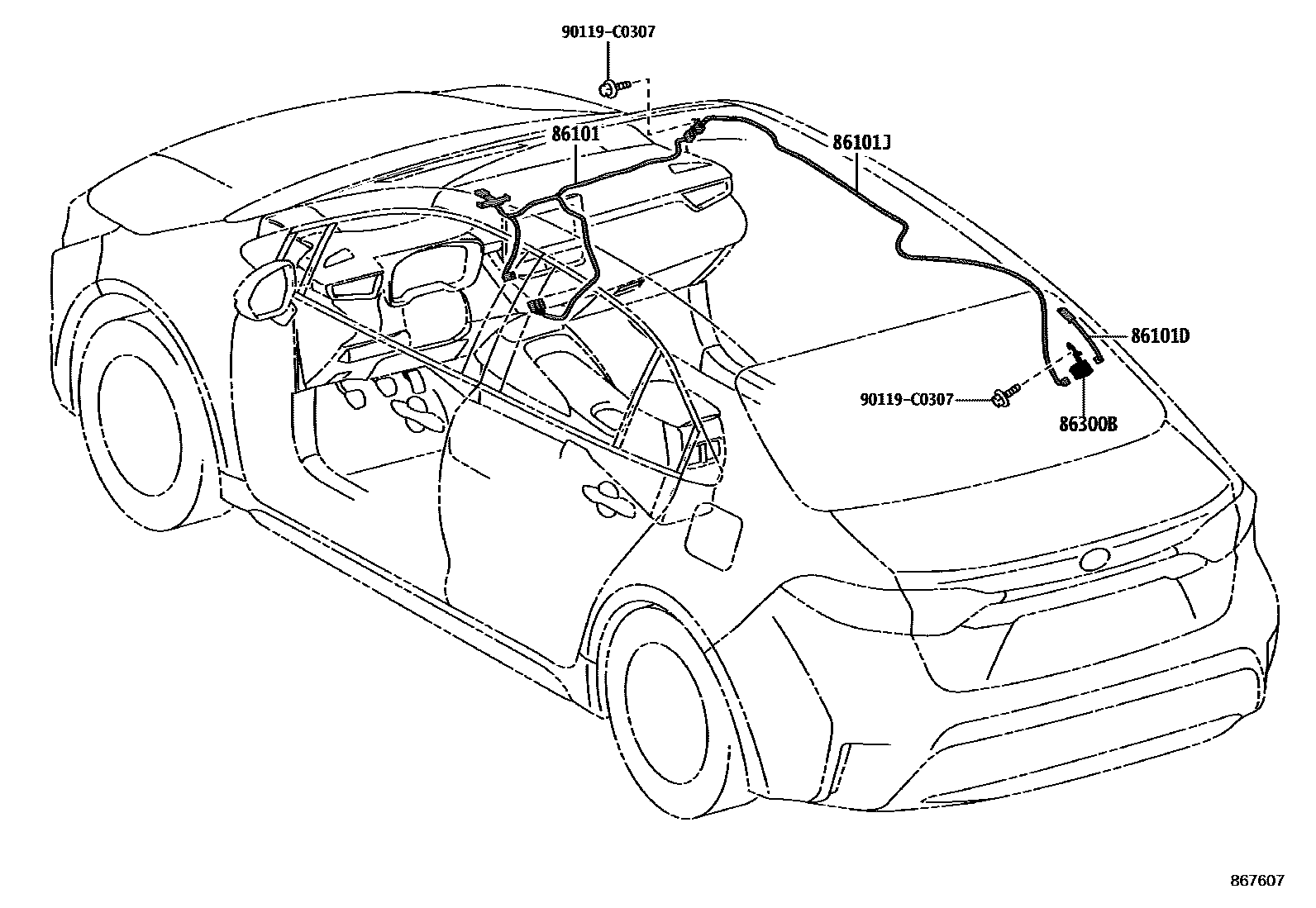

Toyota LEVIN/HYBRID — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-02780iNRE210..G,N;MZEA11,ZWE211201906-202403

main86101-02P70iNRE210..E202403

main86101-0Z110iMZEA17,ZWE219202304

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-02J20iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-02J30iMZEA11,NRE210,ZWE211..CVT..N201906-202303

main86101-02L80iNRE210..G;MZEA11,ZWE211..CVT..(E,G)201906-202303

main86101-02W60iMZEA17,ZWE219..N202304

main86101-02W70iMZEA17,ZWE219..E,G202304

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-02630iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main86300-02670iMZEA17,ZWE219202304

90119C0307

main90119-C0307

5 parts on this diagram · 1 diagram in section
