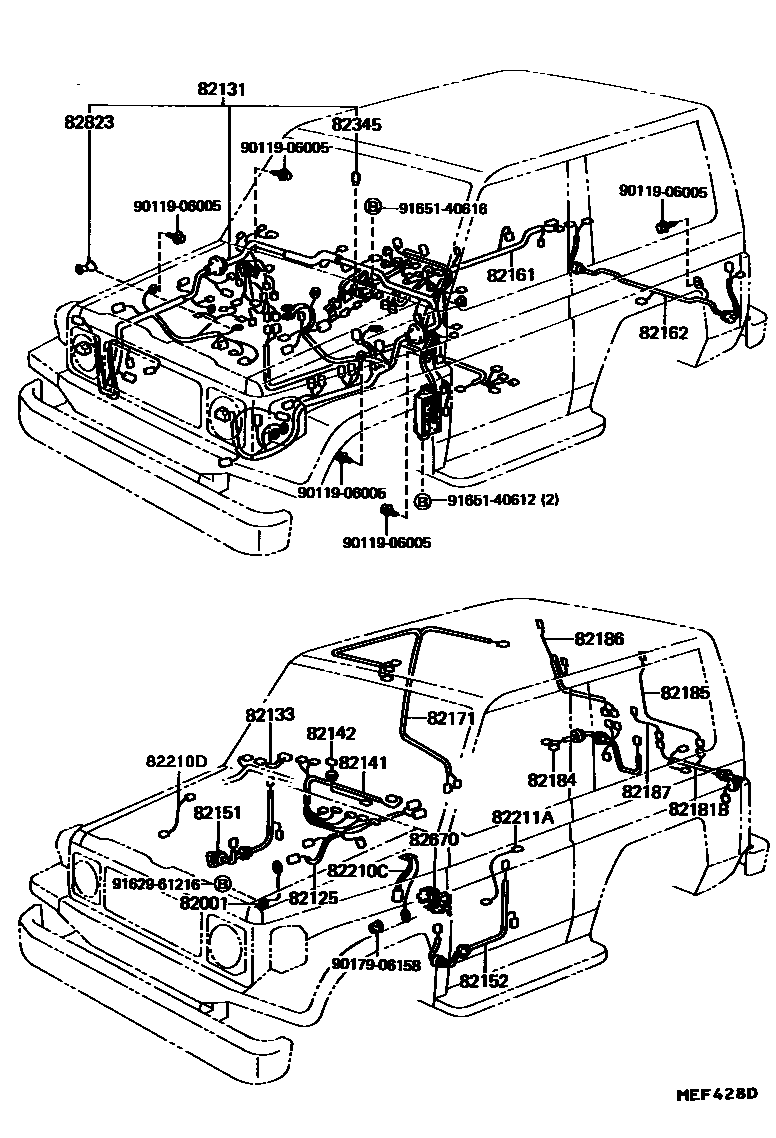

Toyota LAND CRUISER — WIRING & CLAMP
82001CABLE, BOND, NO.1
82125WIRE, TRANSMISSION
82131WIRE, COWL
82133WIRE, COWL, NO.3
82141WIRE, INSTRUMENT PANEL
82142WIRE, INSTRUMENT PANEL, NO.2
82151WIRE, FRONT DOOR, RH
82152WIRE, FRONT DOOR, LH
82161WIRE, FLOOR
W/SUN ROOF
82162WIRE, FLOOR, NO.2
W/*RWD
W/*RWD
W/*RWD
82171WIRE, ROOF, NO.1
W/SUN ROOF
82181BWIRE, LUGGAGE ROOM, NO.3
W/*RWD
W/*RWD
82184WIRE, BACK DOOR, NO.1
W/*RW OR W/*RW & *RWD
W/*RWD(W/O *RW)
W/*RW OR W/*RW & *RWD
W/*RWD(W/O *RW)
W/*RW OR W/*RW & *RWD
W/*RWD(W/O *RW)
82185WIRE, BACK DOOR, NO.2
82186WIRE, REAR WINDOW, NO.1
82187WIRE, REAR WINDOW, NO.2
82210CFUSIBLE LINK
82210DFUSIBLE LINK
82211AWIRE, REAR HEATER
82670BLOCK ASSY, JUNCTION, NO.1
82823CAP, TERMINAL, NO.1
ALTERNATOR
9011906005
9017906158
9162961216
9165140612
9165140616
27 parts on this diagram · 4 diagrams in section
