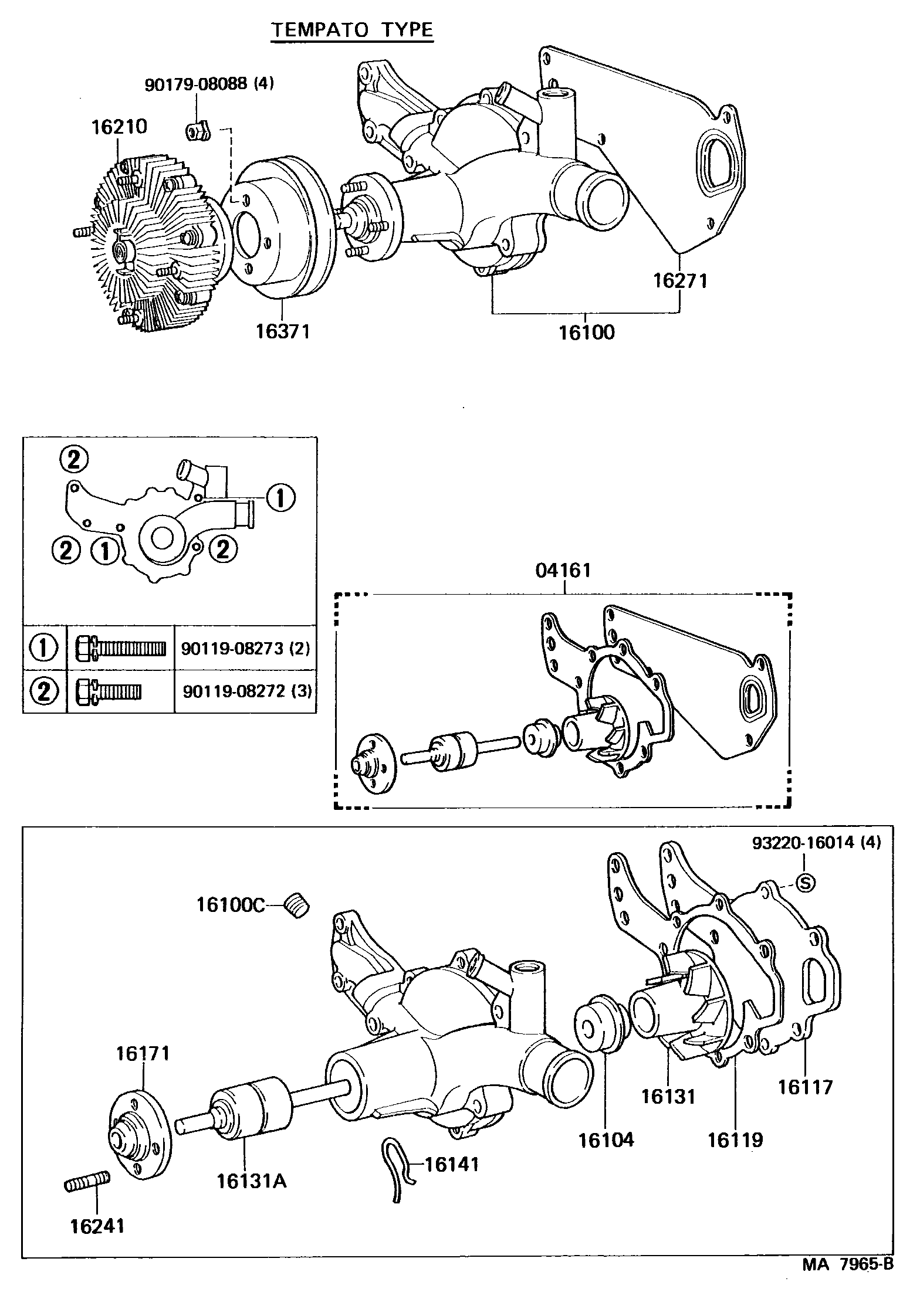

Toyota LAND CRUISER — WATER PUMP

04161PUMP KIT, WATER

main04161-56080i3B..BJ70¥6,600198411-198707

sub04161-56081

16100PUMP ASSY, ENGINE WATER

main16100-59105i3B..BJ70¥16,600198411-198707

16100CPLUG, W/HEAD TAPER SCREW

main15184-15010i3B..BJ70¥450198411-198707

16104SEAL SET, WATER PUMP

main16104-52011i3B..BJ70¥4,920198411-198507

sub16104-52012¥4,650

main16104-52013i3B..BJ70¥4,710198507-198707

16117PLATE, WATER PUMP

main16117-56040i3B..BJ70¥1,650198411-198707

16119GASKET, WATER PUMP BODY

main16119-56040i3B..BJ70¥640198411-198707

sub16119-56041¥550

16131ROTOR, WATER PUMP

main16131-56040i3B..BJ70198411-198707

16131ABEARING, WATER PUMP

main90369-38001i3B..BJ70¥3,050198411-198707

16141WIRE, WATER PUMP BEARING RETAINING

main16141-76010i3B..BJ70¥330198411-198707

16171SEAT, WATER PUMP PULLEY

main16171-61071i3B..BJ70¥1,780198411-198707

16210COUPLING ASSY, FLUID

main16210-56040i3B..BJ70¥32,400198411-198707

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16198-41170i3B..BJ70¥230198411-198707

16271GASKET, WATER PUMP

main16271-56020i3B..BJ70¥1,470198411-198707

sub16271-56030¥930

16371PULLEY, FAN

main16371-56040i3B..BJ70¥3,370198411-198707

9011908272

main90119-08272¥190

9011908273

main90119-08273¥210

9017908088

main90179-08088¥160

9322016014

main93220-16014¥80

18 parts on this diagram · 1 diagram in section
