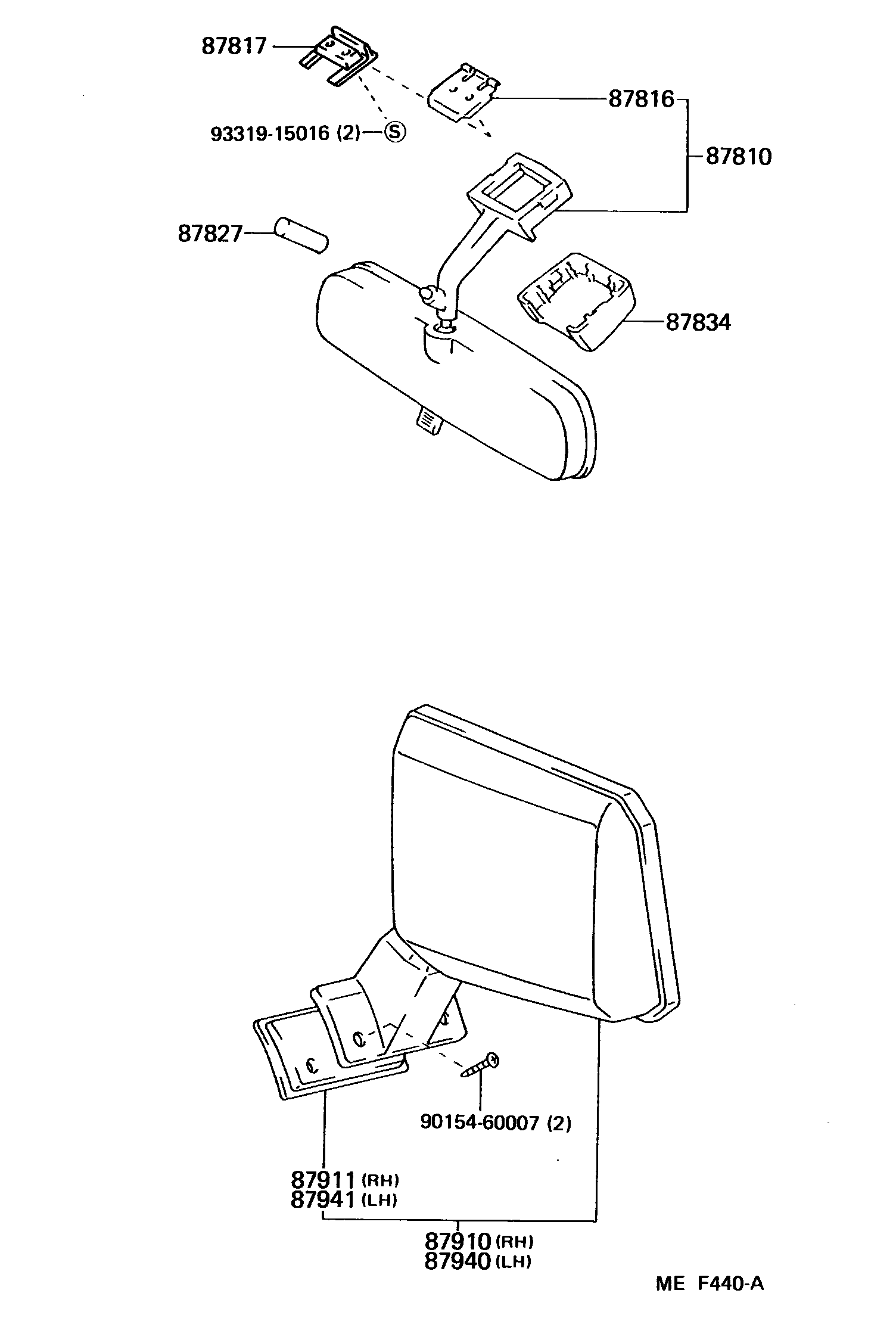

Toyota LAND CRUISER — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-90K00iBJ70¥7,200198411-198510

main87810-90K02iBJ70¥7,100198510-198608

main87810-90K04iBJ70¥7,100198608-198707

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iBJ70¥190198510-198707

main74372-90A00iBJ70¥710198411-198510

87817SPACER, INNER REAR VIEW MIRROR

main87817-90K00iBJ70¥410198411-198510

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-30010iBJ70¥220198411-198707

L=44

main87828-87005iBJ70¥440198411-198707

L=49

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-18iBJ70198411-198707

IVORY

sub87834-20080¥260

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-90K00iBJ70¥6,200198411-198707

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-90K00iBJ70¥630198411-198707

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-90K00iBJ70¥6,200198411-198707

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87911-90K00iBJ70¥630198411-198707

9015460007

main90154-60007¥120

9331915016

main93319-15016¥140

11 parts on this diagram · 1 diagram in section
