Toyota LAND CRUISER — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-22070-08iBJ70198411-198510

IVORY,IVORY

sub81240-22070¥3,140

main81240-22080-08iBJ70198411-198510

W/SUN ROOF,IVORY,IVORY

sub81240-22081¥3,110

main81240-90K00iBJ70¥1,700198510-198707

main81240-90K01iBJ70¥2,700198510-198607

W/SUN ROOF

sub81240-90K04¥3,150

main81240-90K04iBJ70¥3,150198607-198707

W/SUN ROOF

81240BBULB, ROOM LAMP, NO.1

main90981-16019iBJ70¥220198510-198707

24V 10W,24V 10W

main99132-12100iBJ70¥150198411-198510

12V 10W,12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-20060iBJ70¥640198411-198707

81260ALAMP ASSY, MAP

main81260-90K00iBJ70¥17,500198411-198510

main81260-90K01iBJ70¥17,400198510-198707

81260CBULB(FOR MAP LAMP)

main90981-12005iBJ70¥140198411-198510

12V 8W,12V 8W

main99134-13060iBJ70¥150198510-198707

24V 6W,24V 6W

81261LENS AND COVER, MAP LAMP

main81261-90K00iBJ70¥2,490198411-198707

9354044514

main93540-44514¥110

9354044516

main93540-44516¥70

9356024014

main93560-24014¥80

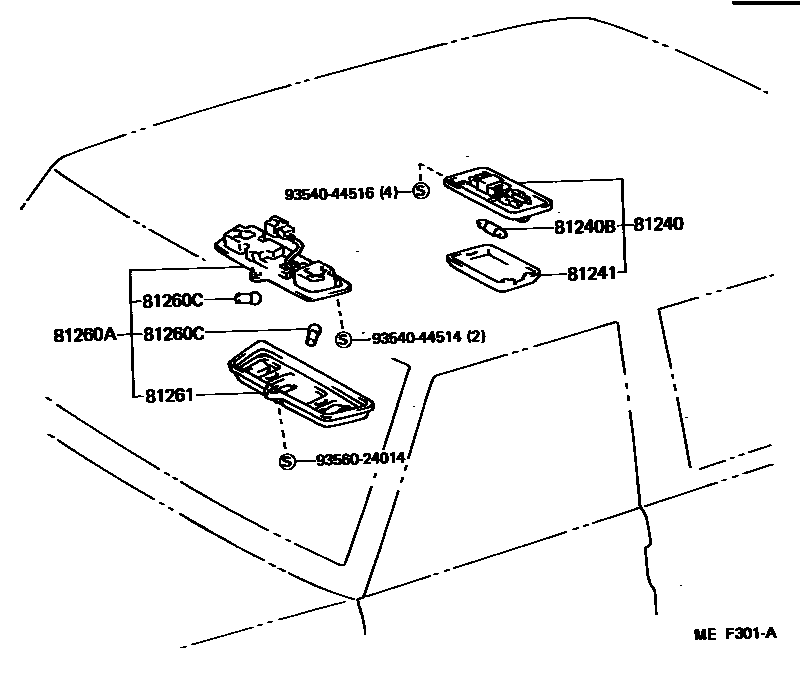

9 parts on this diagram · 1 diagram in section
