Toyota LAND CRUISER — HEATING & AIR CONDITIONING - SET

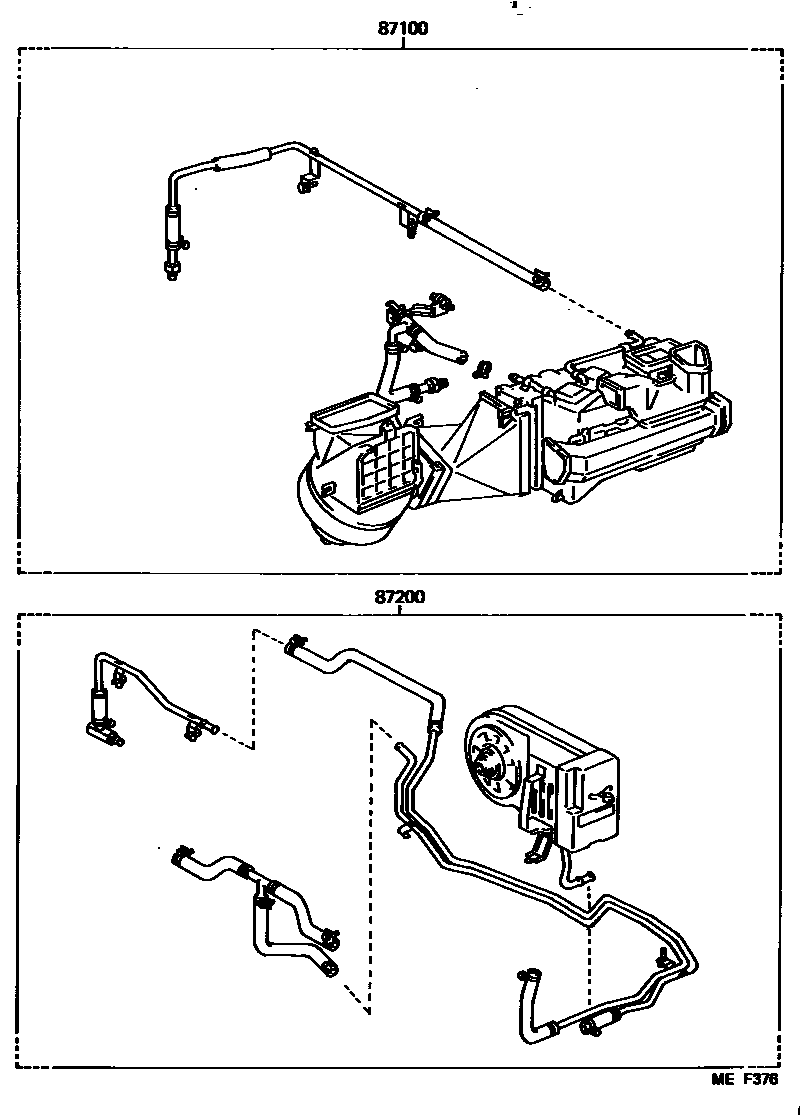

Parts diagram

87100HEATER AND ACCESSORY ASSY

main87100-90K09i198411-198510

main87100-90K24i198510-198608

87200HEATER & ACCESSORY, REAR

main87200-90K02i198411-198510

main87200-90K11i198510-198608

2 parts on this diagram · 1 diagram in section
