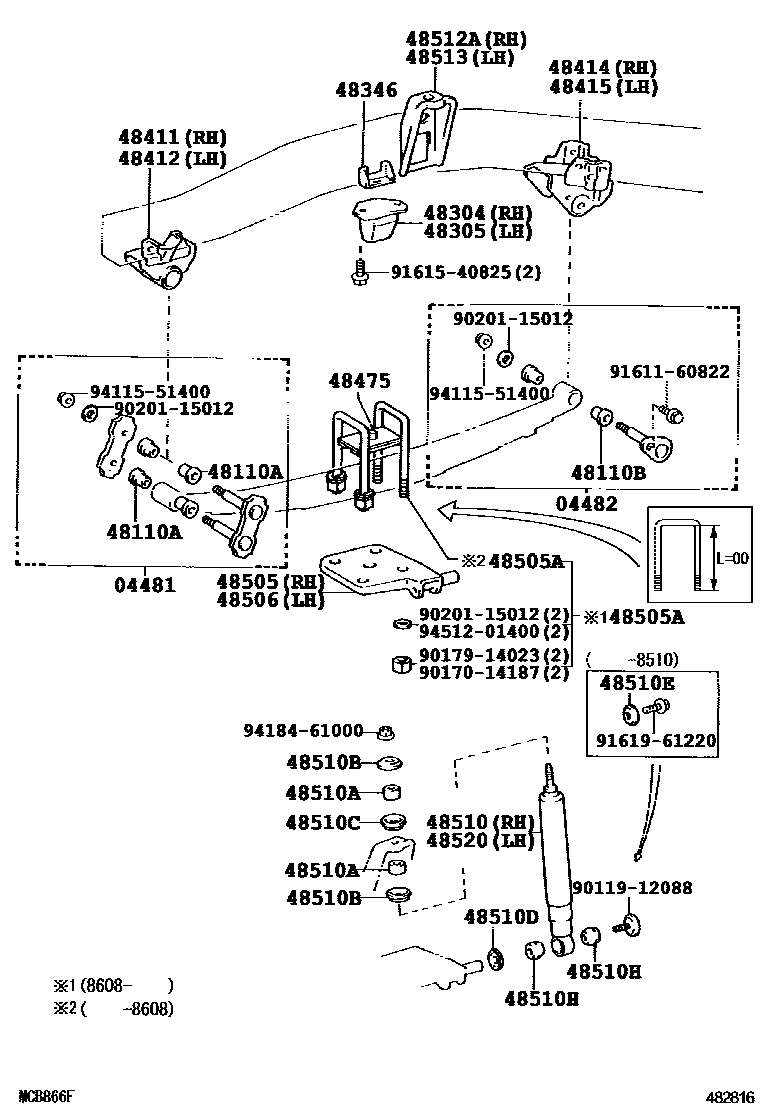

Toyota LAND CRUISER — FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

04481SHACKLE KIT, FRONT SPRING

main04481-60020iBJ70¥4,300198411-198608

main04481-60030iBJ70¥4,130198608-198707

04482PIN KIT, FRONT SPRING

main04482-60040iBJ70¥2,630198411-198707

48110SPRING ASSY, FRONT, RH

main48110-60230iBJ70¥37,300198411-198510

main48110-60231iBJ70¥37,400198510-198707

sub48110-60440¥36,900

48110ABUSH(FOR FRONT SPRING SHACKLE)

main90389-18002iBJ70¥410198411-198707

48110BBUSH(FOR FRONT SPRING PIN)

main90389-18002iBJ70¥410198411-198707

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-60050iBJ70¥4,090198411-198707

48305BUMPER SUB-ASSY, FRONT SPRING, NO.2

main48305-60020iBJ70¥4,090198411-198707

48346STOPPER, BUMPER, FRONT

main48346-60010iBJ70¥440198411-198707

48411BRACKET, FRONT SPRING(FOR FRONT RH)

main48411-60050iBJ70¥4,330198411-198707

48412BRACKET, FRONT SPRING(FOR FRONT LH)

main48412-60010iBJ70¥4,330198411-198707

48414BRACKET, FRONT SPRING(FOR REAR RH)

main48433-60020iBJ70¥3,720198411-198707

48415BRACKET, FRONT SPRING(FOR REAR LH)

main48434-60020iBJ70¥3,720198411-198707

48475PLATE, DISTANCE(FOR FRONT)

main48475-60020iBJ70¥2,100198411-198707

48505SEAT, FRONT SPRING, RH

main48048-60020iBJ70¥3,370198411-198708

sub48048-60021¥3,720

48505ABOLT, U(FOR FRONT SPRING)

main90117-14016iBJ70¥1,870198608-198707

L=195,W/DISTANCE PLATE

sub90117-14051¥1,870

main90117-14017iBJ70¥1,220198608-198707

L=190

sub90117-14036¥1,340

main90118-14187iBJ70¥2,240198411-198608

L=195,W/DISTANCE PLATE

sub90117-14016¥1,870

main90118-14188iBJ70¥2,130198411-198608

L=185

sub90117-14017¥1,220

48506SEAT, FRONT SPRING, LH

main48049-60020iBJ70¥3,370198411-198708

sub48049-60021¥3,720

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-60120iBJ70¥7,100198411-198707

sub48511-69125¥7,100

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003iBJ70¥220198411-198707

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02002iBJ70¥170198411-198707

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02017iBJ70¥320198411-198707

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90948-03011iBJ70¥130198411-198707

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03015iBJ70¥200198411-198510

48510HBUSH(FOR FRONT SHOCK ABSORBER)

main90385-19057iBJ70¥400198411-198707

48512ABRACKET, FRONT SHOCK ABSORBER, UPPER RH

main48512-60040iBJ70¥1,830198411-198707

sub48512-60041¥2,010

48513BRACKET, FRONT SHOCK ABSORBER, UPPER LH

main48512-60040iBJ70¥1,830198411-198707

sub48512-60041¥2,010

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-60120iBJ70¥7,100198411-198707

sub48511-69125¥7,100

9011912088

main90119-12088¥190

9017014187

main90170-14187¥180

9017914023

main90179-14023¥180

9020115012

main90201-15012¥110

9161160822

main91611-60822¥170

9161540825

main91615-40825¥160

9161961220

main91619-61220¥250

9411551400

main94115-51400¥200

9418461000

main94184-61000¥160

9451201400

main94512-01400¥100

36 parts on this diagram · 3 diagrams in section
