Toyota LAND CRUISER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

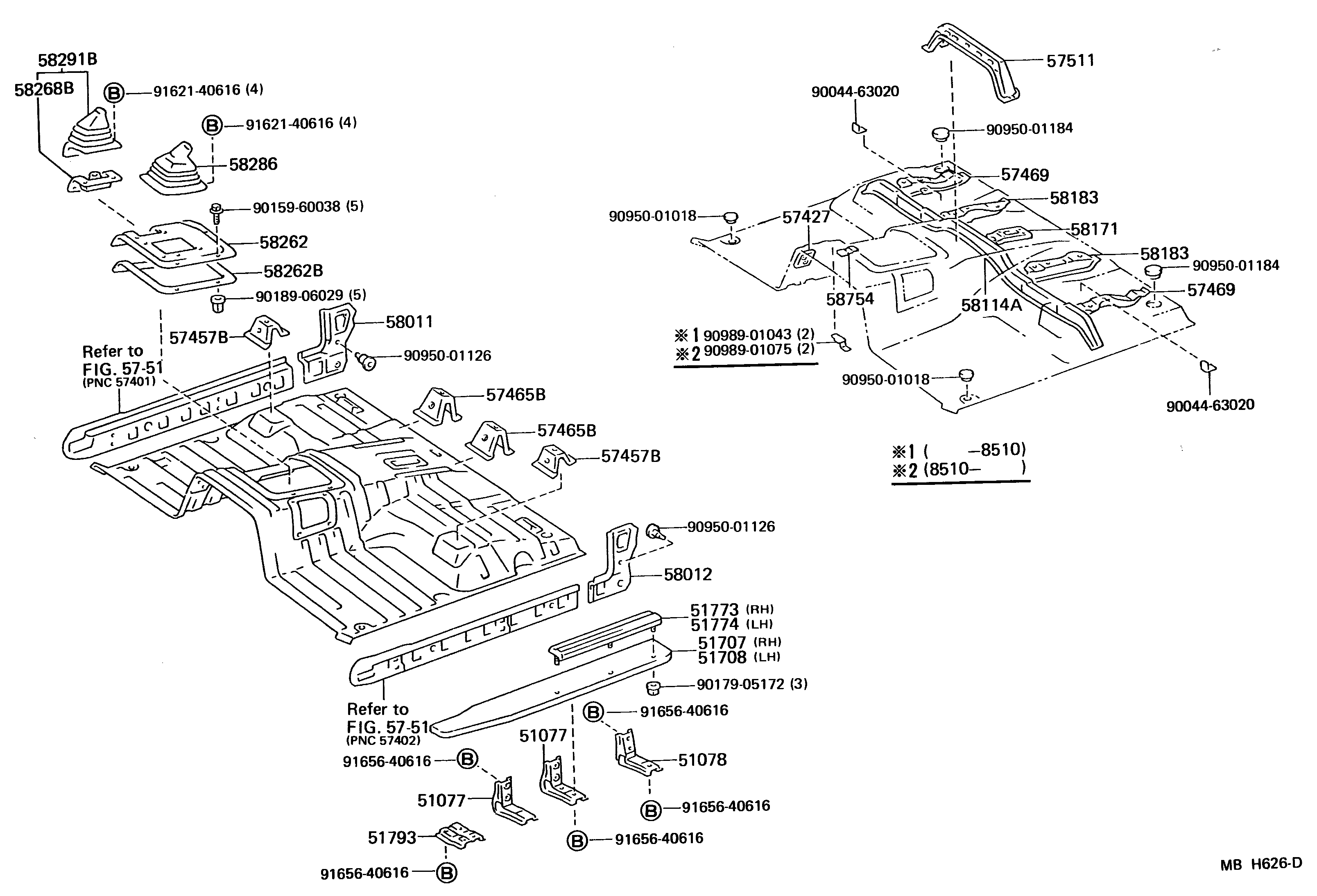

Parts diagram
51077BRACKET SUB-ASSY, SIDE STEP, NO.2
main51077-90K00i¥2,270198411-198707
51078BRACKET SUB-ASSY, SIDE STEP, NO.3
main51078-90K00i¥1,420198411-198707
51707STEP SUB-ASSY, RH
main51707-90K00i¥11,600198411-198707
main51707-90K02i¥15,200198411-198707
CHROME PLATED
51708STEP SUB-ASSY, LH
main51708-90K00i¥11,600198411-198707
main51708-90K02i¥15,200198411-198707
CHROME PLATED
51773COVER, STEP PLATE, OUTER RH
main51773-90K00i¥3,540198411-198707
51774COVER, STEP PLATE, OUTER LH
main51773-90K00i¥3,540198411-198707
51793BRACKET, SIDE STEP, NO.1
main51793-90K00i¥780198411-198707
57427REINFORCEMENT, FRONT FLOOR TO BRACE
main57427-90K00i¥700198411-198707
57457BBRACKET, FRONT SEAT, FRONT
main57457-90K00i¥720198411-198707
57465BBRACKET, FRONT SEAT, INNER
main57465-90K00i¥1,000198411-198707
57469BRACKET, FRONT SEAT, OUTSIDE
main57468-90K00i¥1,980198411-198707
RH
main57469-90K00i¥1,980198411-198707
LH
5751
57511REINFORCEMENT, FRONT FLOOR, CENTER
main57511-90K00i¥3,650198411-198707
main57511-90K01i¥4,490198411-198707
*SUS
58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH
main58011-90K00i¥4,350198411-198707
58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH
main58012-90K00i¥7,100198411-198707
sub58012-60010¥4,350
58114AREINFORCEMENT, FRONT FLOOR PANEL
main58114-90K00i¥8,700198411-198510
sub58114-90K03¥8,800
main58114-90K03i¥8,800198510-198707
sub58102-60020¥6,600
58171REINFORCEMENT, PARKING BRAKE BASE
main58171-90K00i¥3,480198411-198707
58183BRACKET, FRONT SEAT MOUNTING, INNER
main58183-90K00i¥1,600198411-198707
RH
main58184-90K00i¥1,580198411-198510
LH
sub58184-90K02¥1,600
main58184-90K02i¥1,600198510-198707
LH
58262COVER, TRANSMISSION
main58261-90K01i¥8,500198411-198707
58262BPACKING, TRANSMISSION COVER
main58263-90K00i¥2,710198411-198707
58268BSEAL, TRANSFER LEVER BOOT
main58268-90K00i198411-198510
58286BOOT, SHIFT & SELECT LEVER, NO.1
main58280-90K00i¥5,900198411-198604
sub58280-90K02¥6,100
main58280-90K02i¥6,100198604-198707
sub58280-60060¥4,640
58291BBOOT, TRANSFER SHIFT LEVER
main58290-90K02i¥6,300198411-198604
sub58290-90K06¥6,300
main58290-90K06i¥6,300198604-198610
sub58290-90K08¥6,400
main58290-90K08i¥6,400198610-198707
sub58290-60070¥4,320
58754PLATE, ENGINE SERVICE COVER CATCH
main58754-90K00i¥520198411-198707
9004463020
main90044-63020¥350
9015960038
main90159-60038¥190
9017905172
main90179-05172¥110
9018906029
main90189-06029¥100
9095001018
main90950-01018¥200
9095001126
main90950-01126¥360
9095001184
main90950-01184¥520
9098901043
main90989-01043¥300
9098901075
main90989-01075¥380
9162140616
main91621-40616¥80
9165640616
main91656-40616¥100

35 parts on this diagram · 1 diagram in section
