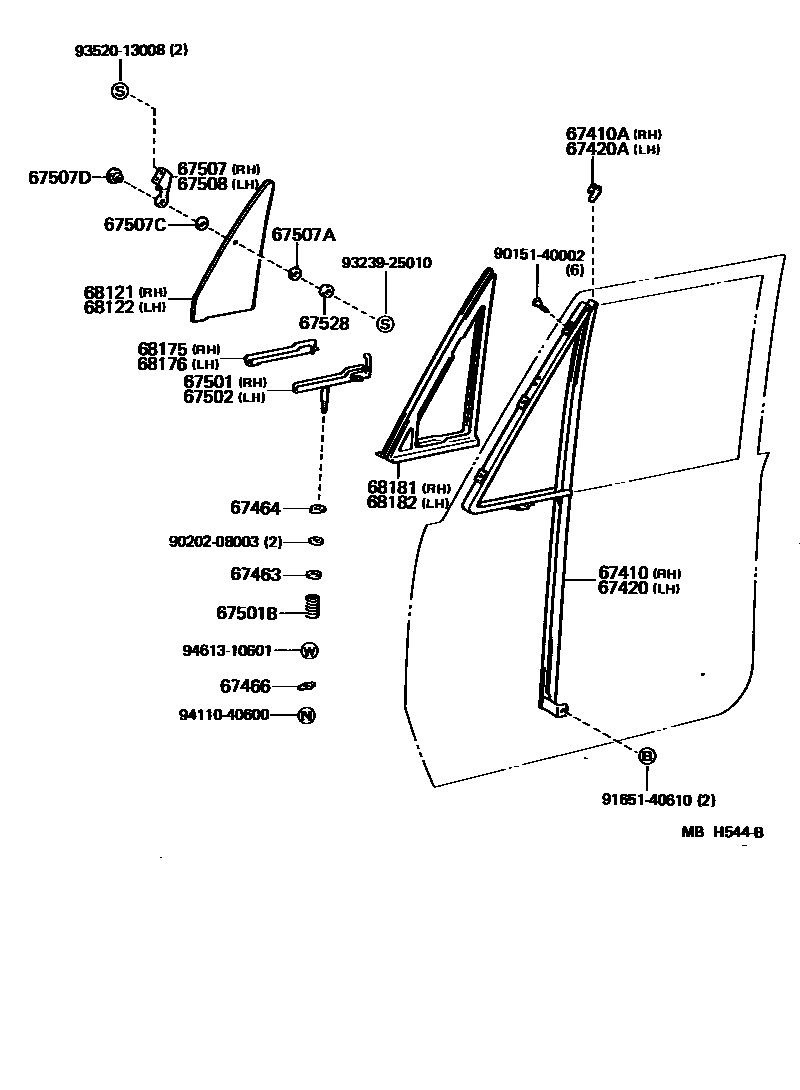

Toyota LAND CRUISER — FRONT DOOR VENTILATOR WINDOW

67410BAR ASSY, FRONT DOOR WINDOW DIVISION, RH

main67503-90K00iBJ70¥3,970198411-198707

67410ASEAL, FRONT DOOR DIVISION BAR, RH NO.1

main67533-90K00iBJ70¥230198411-198707

67420BAR ASSY, FRONT DOOR WINDOW DIVISION, LH

main67504-90K00iBJ70¥3,970198411-198707

67420ASEAL, FRONT DOOR DIVISION BAR, LH NO.1

main67534-90K00iBJ70¥180198411-198707

67463WASHER, FRONT DOOR VENTILATING WIHDOW LOWER PIVOT

main67463-20011iBJ70¥130198411-198707

67464STOPPER, FRONT DOOR VENTILATING WINDOW OPENING

main67577-90A00iBJ70¥240198411-198707

67466WASHER, LOCK(FOR VENT WINDOW GLASS FRAME)

main67466-89101iBJ70¥140198411-198707

67501FRAME SUB-ASSY, VENT WINDOW GLASS, RH

main67505-90K00iBJ70¥3,340198411-198707

67501BSPRING, COMPRESSION(FOR VENT WINDOW GLASS FRAME)

main90501-40205iBJ70¥160198411-198707

67502FRAME SUB-ASSY, VENT WINDOW GLASS, LH

main67506-90K00iBJ70¥3,340198411-198707

67507PIVOT SUB-ASSY, VENT WINDOW, UPPER RH

main67507-90K00iBJ70¥720198411-198707

67507AGASKET, VENT WINDOW PIVOT, UPPER NO.1

main90430-07001iBJ70¥160198411-198707

67507CGASKET, VENT WINDOW PIVOT, UPPER NO.2

main90430-04003iBJ70¥90198411-198707

67507DRETAINER, VENT WINDOW PIVOT, UPPER

main62735-89101iBJ70¥390198411-198707

67508PIVOT SUB-ASSY, VENT WINDOW, UPPER LH

main67508-90K00iBJ70¥720198411-198707

67528PLATE, VENT WINDOW UPPER PIVOT

main67528-89101iBJ70¥200198411-198707

68121GLASS, VENT WINDOW, RH

main68121-90K00iBJ70¥4,370198411-198707

*TEM,T=4.0,*TEM,T=4.0

sub68121-60050¥2,800

68122GLASS, VENT WINDOW, LH

main68122-90K00iBJ70¥4,370198411-198707

*TEM,T=4.0,*TEM,T=4.0

sub68122-60010¥2,800

68175WEATHERSTRIP, VENT WINDOW FRAME, RH

main68175-90K00iBJ70¥500198411-198707

68176WEATHERSTRIP, VENT WINDOW FRAME, LH

main68176-90K00iBJ70¥500198411-198707

68181WEATHERSTRIP, VENT WINDOW, NO.1 RH

main68181-90K00iBJ70¥1,880198411-198707

68182WEATHERSTRIP, VENT WINDOW, NO.1 LH

main68182-90K00iBJ70¥1,880198411-198707

9015140002

main90151-40002¥70

9020208003

main90202-08003¥90

9165140610

main91651-40610¥160

9323925010

main93239-25010¥70

9352013008

main93520-13008¥70

9411040600

main94110-40600¥80

9461310601

main94613-10601¥70

29 parts on this diagram · 1 diagram in section
