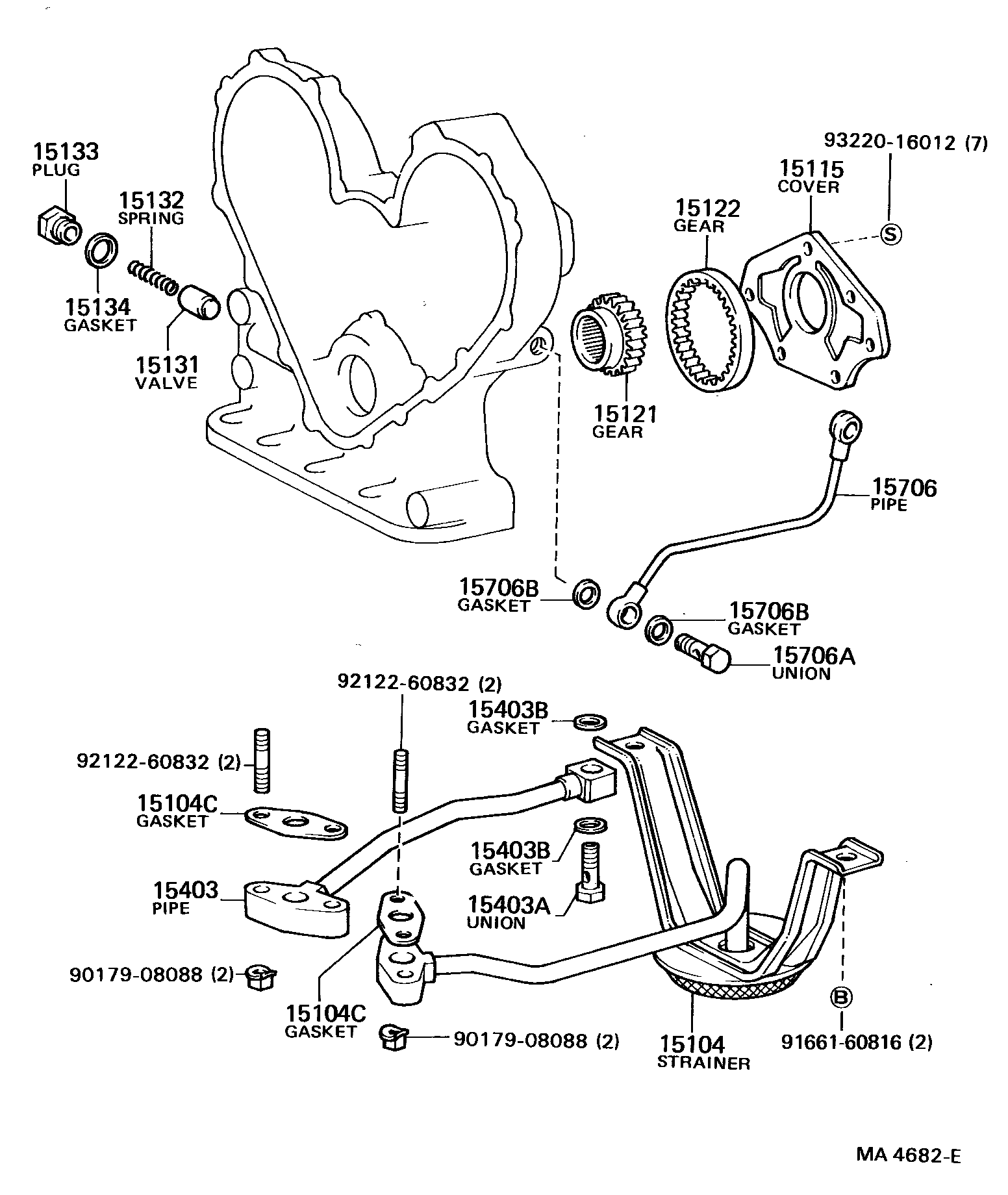

Toyota LAND CRUISER — ENGINE OIL PUMP

15104STRAINER SUB-ASSY, OIL

main15104-56050i3B..BJ70¥13,600198411-198707

sub15104-56061¥8,800

15104CGASKET(FOR OIL STRAINER)

main15193-56020i3B..BJ70¥520198411-198707

sub15149-56020¥500

15115COVER, OIL PUMP

main15115-56030i3B..BJ70¥3,350198411-198707

15121GEAR, OIL PUMP DRIVE

main15121-56030i3B..BJ70¥4,020198411-198707

15122GEAR, OIL PUMP DRIVEN

main15122-56030i3B..BJ70¥4,800198411-198707

15131VALVE, OIL PUMP RELIEF

main15131-24010i3B..BJ70¥340198411-198707

15132SPRING, OIL PUMP RELIEF VALVE

main15132-76011i3B..BJ70¥380198411-198707

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i3B..BJ70¥340198411-198707

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i3B..BJ70¥350198411-198707

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-56041i3B..BJ70¥10,500198411-198707

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-18002i3B..BJ70¥1,000198411-198707

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-18012i3B..BJ70¥140198411-198707

15706PIPE SUB-ASSY, OIL, INJECTION PUMP OUTLET

main15077-56010i3B..BJ70¥2,780198411-198707

15706AUNION(FOR INJECTION PUMP OUTLET PIPE)

main90044-01010i3B..BJ70¥370198411-198707

15706BGASKET(FOR INJECTION PUMP OUTLET PIPE)

main90044-30026i3B..BJ70¥190198411-198707

9017908088

main90179-08088¥160

9166160816

main91661-60816¥130

9212260832

main92122-60832¥120

9322016012

main93220-16012¥180

19 parts on this diagram · 1 diagram in section
