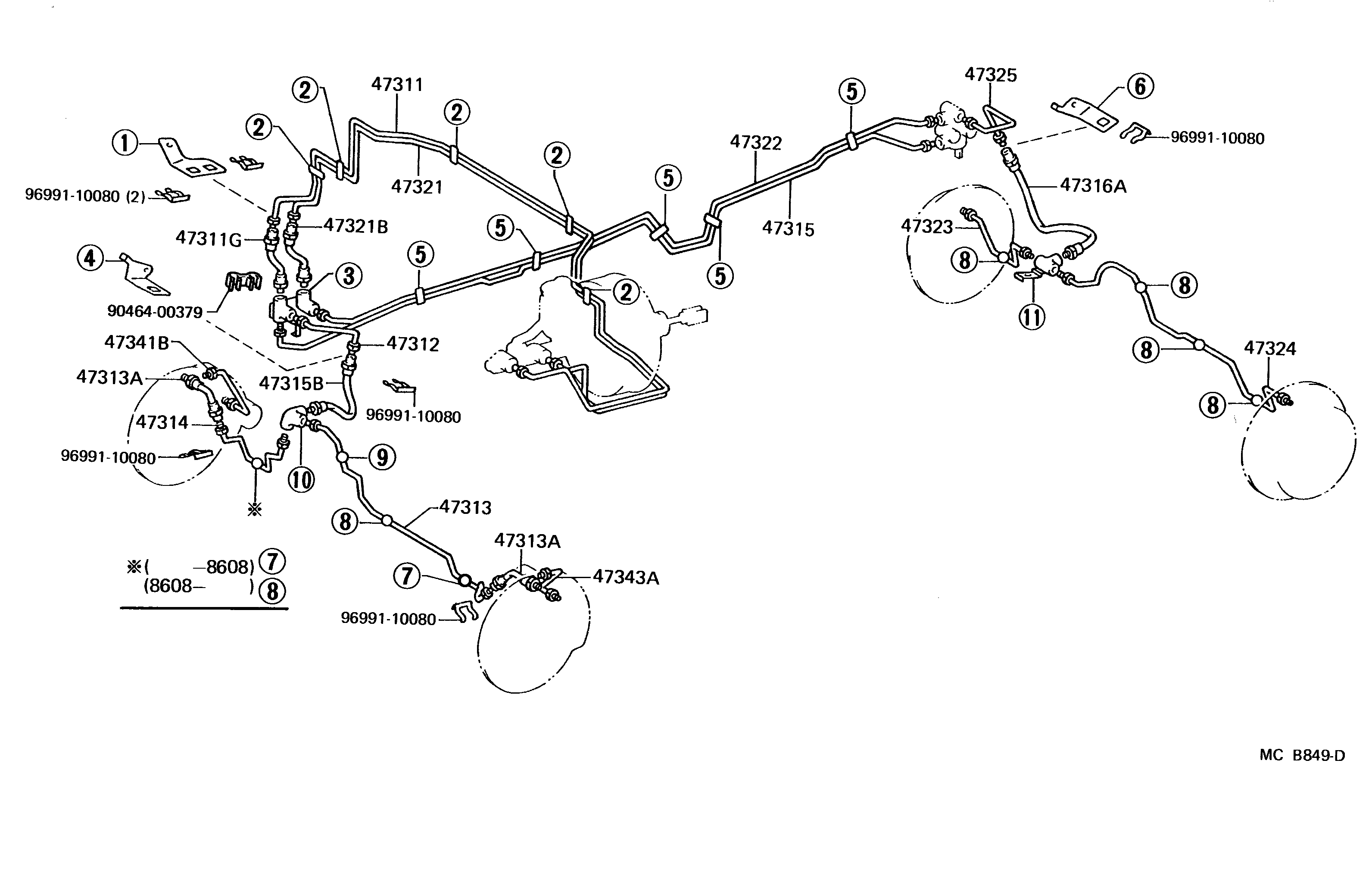

Toyota LAND CRUISER — BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

47311TUBE, FRONT BRAKE, NO.1

main47312-60490iBJ70¥2,160198411-198707

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main96940-33005iBJ70¥1,060198411-198707

47312TUBE, FRONT BRAKE, NO.2

main47313-60140iBJ70¥430198411-198608

main47313-60141iBJ70¥480198608-198707

47313TUBE, FRONT BRAKE, NO.3

main47314-60160iBJ70¥950198411-198608

main47314-60161iBJ70¥980198608-198707

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main96940-39855iBJ70¥920198411-198707

47314TUBE, FRONT BRAKE, NO.4

main47315-60320iBJ70¥580198411-198608

main47315-60321iBJ70¥590198608-198707

47315TUBE, FRONT BRAKE, NO.5

main47316-60190iBJ70¥2,060198411-198707

47315BHOSE, FLEXIBLE(FOR BRAKE TUBE)

main96940-33505iBJ70¥1,260198411-198707

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-33605iBJ70¥1,320198411-198707

sub90947-02492¥1,680

47321TUBE, REAR BRAKE, NO.1

main47322-60380iBJ70¥2,030198411-198707

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-33005iBJ70¥1,060198411-198707

47322TUBE, REAR BRAKE, NO.2

main47323-60200iBJ70¥2,060198411-198707

47323TUBE, REAR BRAKE, NO.3

main47324-60090iBJ70¥580198411-198608

main47324-60091iBJ70¥600198608-198707

47324TUBE, REAR BRAKE, NO.4

main47325-60080iBJ70¥1,320198411-198608

main47325-60081iBJ70¥1,340198608-198707

47325TUBE, REAR BRAKE, NO.5

main47326-60080iBJ70¥600198411-198707

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-60031iBJ70¥450198411-198707

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-60021iBJ70¥450198411-198707

9046400379

main90464-00379¥140

9699110080

main96991-10080¥100

19 parts on this diagram · 3 diagrams in section
