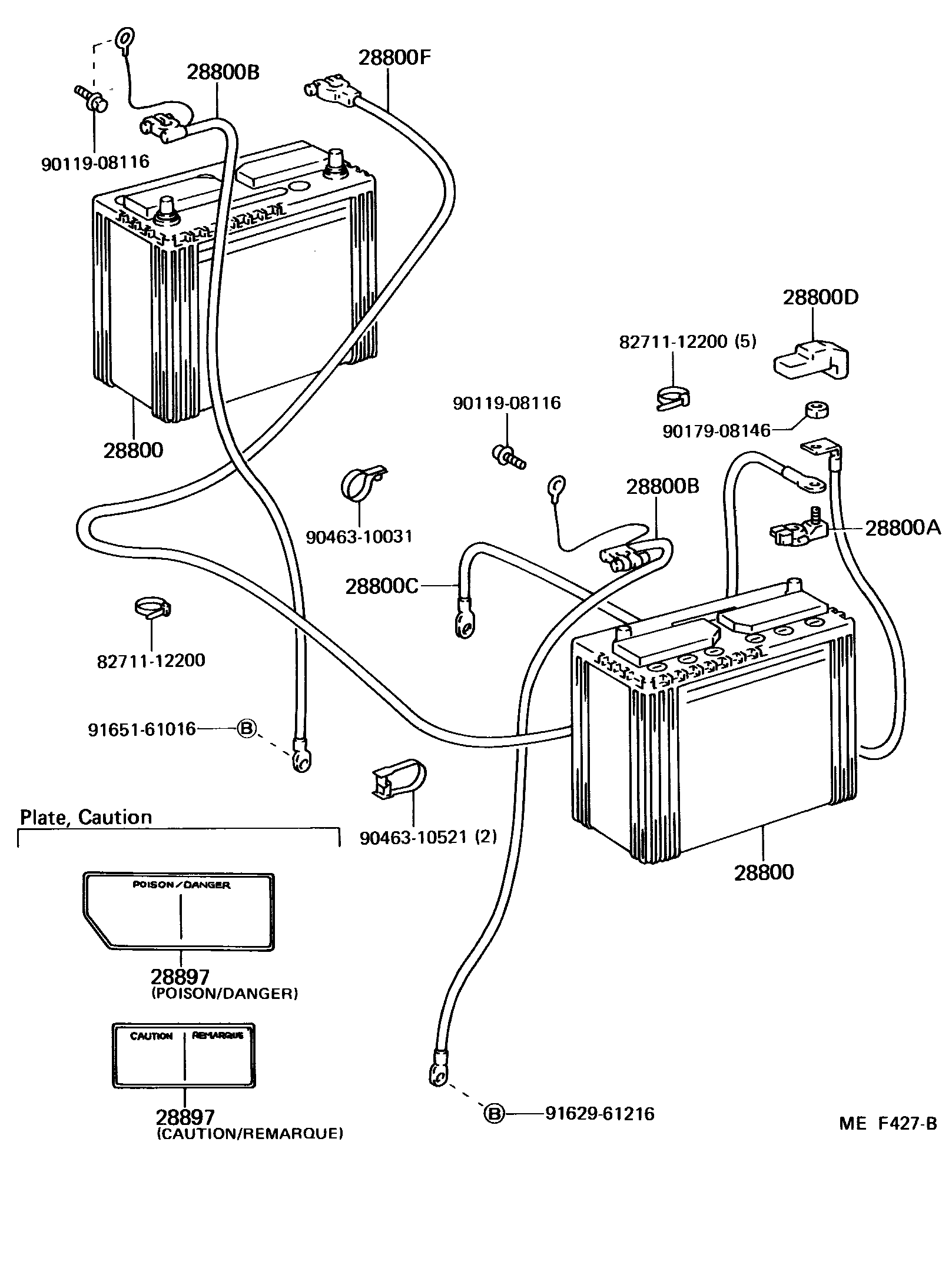

Toyota LAND CRUISER — BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-45030i3B..BJ70198411-198501

75D31R-MF(N70Z-MF)

main28800-45050i3B..BJ70198501-198707

75D31L,75D31L-MF(N70ZL-MF)

sub28800-42130

main28800-61010i3B..BJ70198411-198501

75D31L-MF(N70ZL-MF)

sub28800-46012

main28800-61030i3B..BJ70198501-198707

75D31R,75D31R-MF(N70Z-MF)

sub28800-46012

28800ATERMINAL, BATTERY POSITIVE

main90982-05031i3B..BJ70¥910198504-198707

sub82675-60030¥520

main99142-87175i3B..BJ70¥940198411-198504

sub82675-30020¥1,080

28800BCABLE, BATTERY TO GROUND

main82123-90K00i3B..BJ70¥4,140198411-198707

RH

main82123-90K03i3B..BJ70¥4,140198411-198510

LH

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-90K06i3B..BJ70¥9,400198411-198707

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i3B..BJ70¥310198411-198707

28800FCABLE, BATTERY TO BATTERY

main82122-90K05i3B..BJ70¥39,100198411-198510

main82122-90K09i3B..BJ70¥38,900198510-198707

28897PLATE, BATTERY CAUTION

main28897-38010i3B..BJ70¥210198501-198707

POISON/DANGER

main28897-45040i3B..BJ70¥240198411-198501

POISON/DANGER

sub28897-35010¥230

main28897-54020i3B..BJ70¥210198411-198510

CAUTION/REMARQUE

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200¥120

9011908116

main90119-08116¥200

9017908146

main90179-08146¥180

9046310031

main90463-10031¥130

9046310521

main90463-10521¥200

9162961216

main91629-61216¥120

9165161016

main91651-61016¥130

14 parts on this diagram · 2 diagrams in section
