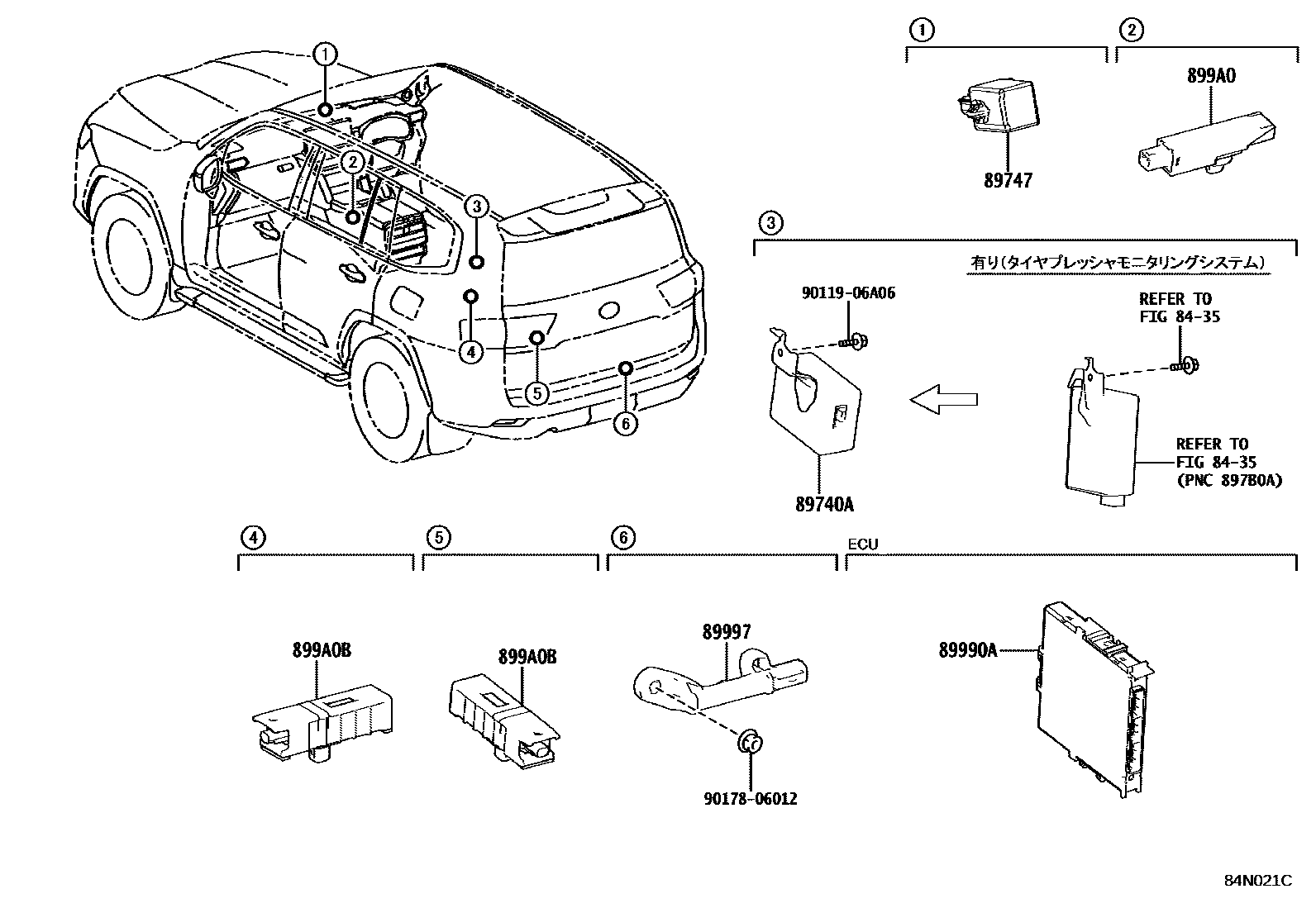

Toyota LAND CRUISER — WIRELESS DOOR LOCK

8435

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-60320iFJA300,VJA300¥12,900202107-202411

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iFJA300,VJA300¥2,900202107-202411

89990ACOMPUTER ASSY, SMART KEY

main899H0-60040iFJA300,VJA300¥49,400202107-202305

sub899H0-60041¥49,400

main899H0-60041iFJA300,VJA300¥49,400202306-202411

89997ANTENNA, ELECTRICAL KEY

main89997-30100iFJA300,VJA300¥1,800202107-202411

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12130iFJA300,VJA300¥1,410202107-202411

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-60070iFJA300,VJA300¥1,410202107-202411

9011906A06

main90119-06A06¥60

9017806012

main90178-06012¥80

9 parts on this diagram · 1 diagram in section
