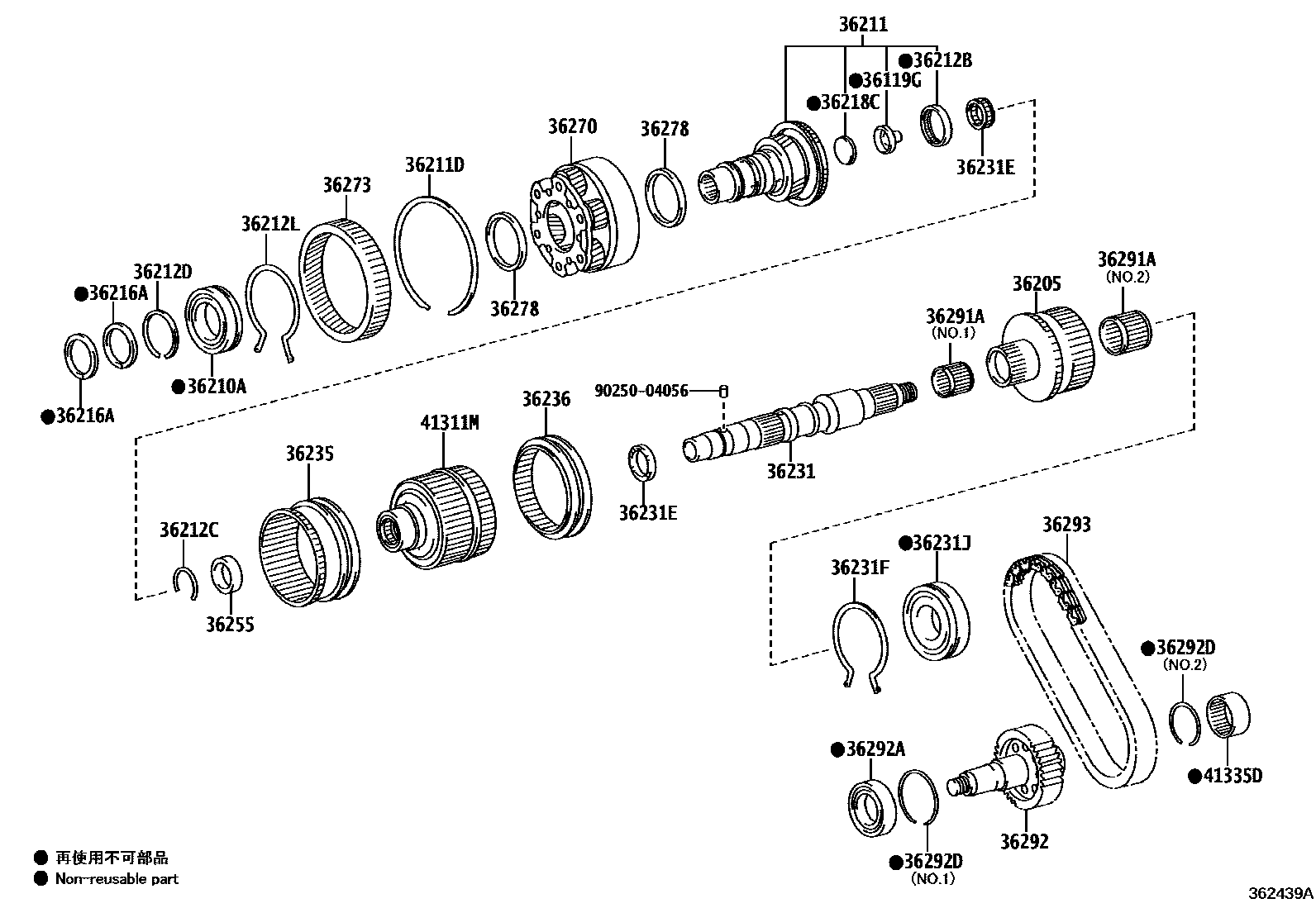

Toyota LAND CRUISER — TRANSFER GEAR
36119GRECEIVER, TRANSFER OIL
36205SPROCKET SUB-ASSY, TRANSFER DRIVE
36210ABEARING (FOR TRANSFER INPUT SHAFT)
36211SHAFT, TRANSFER INPUT
36211DRING, HOLE SNAP (FOR TRANSFER INPUT SHAFT)
36212BBEARING, NEEDLE ROLLER (FOR TRANSFER INPUT GEAR)
36212CRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR)
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
36212LRING, SHAFT SNAP
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
36218CPLUG, TRANSFER INPUT SHAFT
36231SHAFT, TRANSFER OUTPUT, REAR
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36236SLEEVE, FRONT DRIVE CLUTCH
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
36270GEAR ASSY, TRANSFER LOW PLANETARY
36273GEAR, TRANSFER LOW PLANETARY RING
36278WASHER, MANUAL TRANSFER PLANETARY CARRIER
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
36292SPROCKET, TRANSFER DRIVEN
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
36292DRING SHAFT SNAP(FOR TRANSFER DRIVEN SPROCKET)
36293CHAIN, TRANSFER FRONT DRIVE
41311MCASE, CENTER DIFFERENTIAL
41335DBEARING (FOR SIDE GEAR SHAFT HOLDER)
9025004056
29 parts on this diagram · 1 diagram in section
