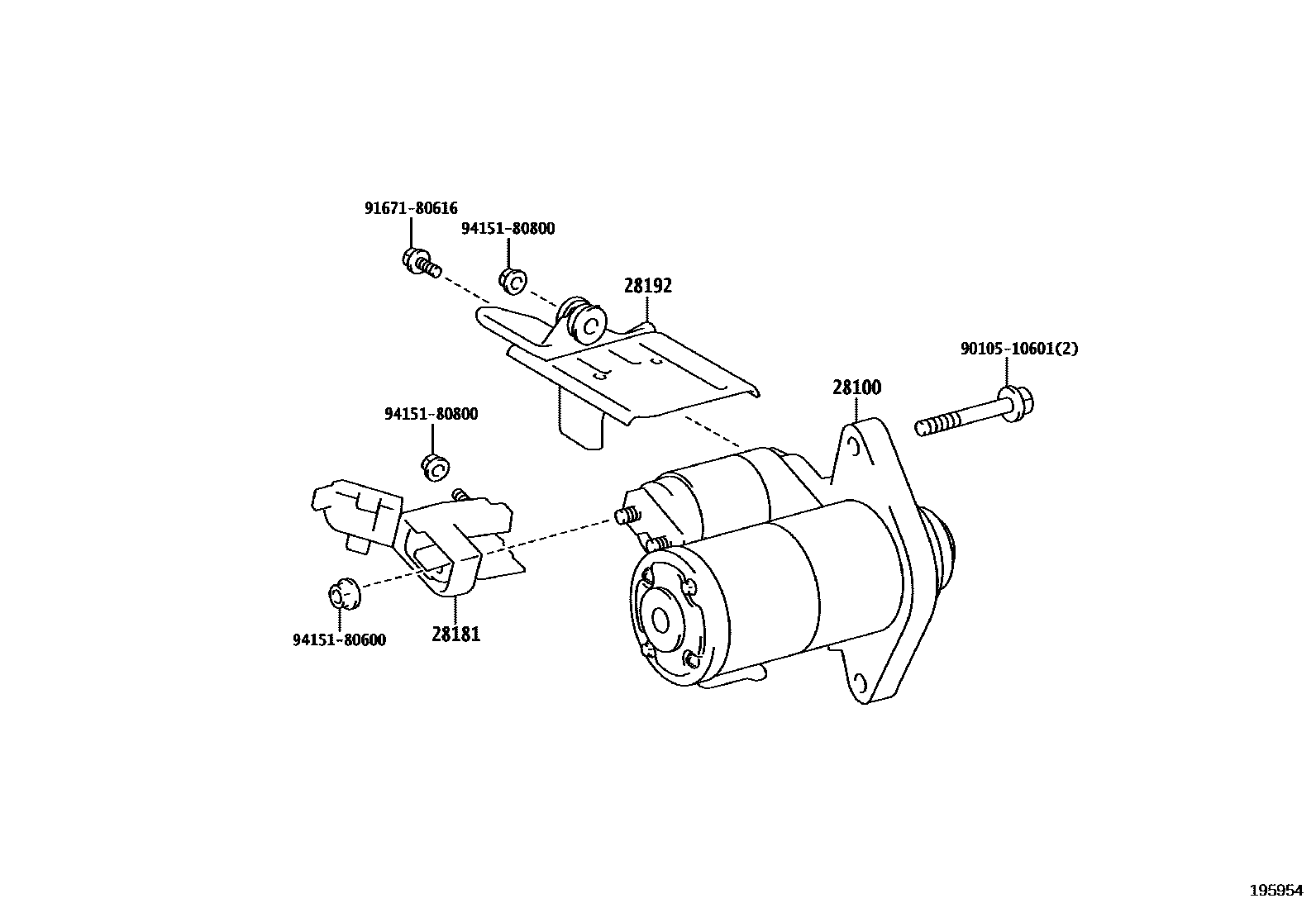

Toyota LAND CRUISER — STARTER

0001 112V 1.7KW 0002 112V 2.0KW 0003 112V 2.7KW

28100STARTER ASSY

main28100-52011iF33AFTV..FJA300¥76,600202107-202411

main28100-70090iV35AFTS..VJA300¥65,700202107-202411

28181TERMINAL, STARTER

main28181-70011iV35AFTS..VJA300¥2,330202107-202411

28192COVER, STARTER

main28192-70020iV35AFTS..VJA300¥1,200202107-202411

9010510601

main90105-10601¥190

9167180616

main91671-80616¥60

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

7 parts on this diagram · 3 diagrams in section
