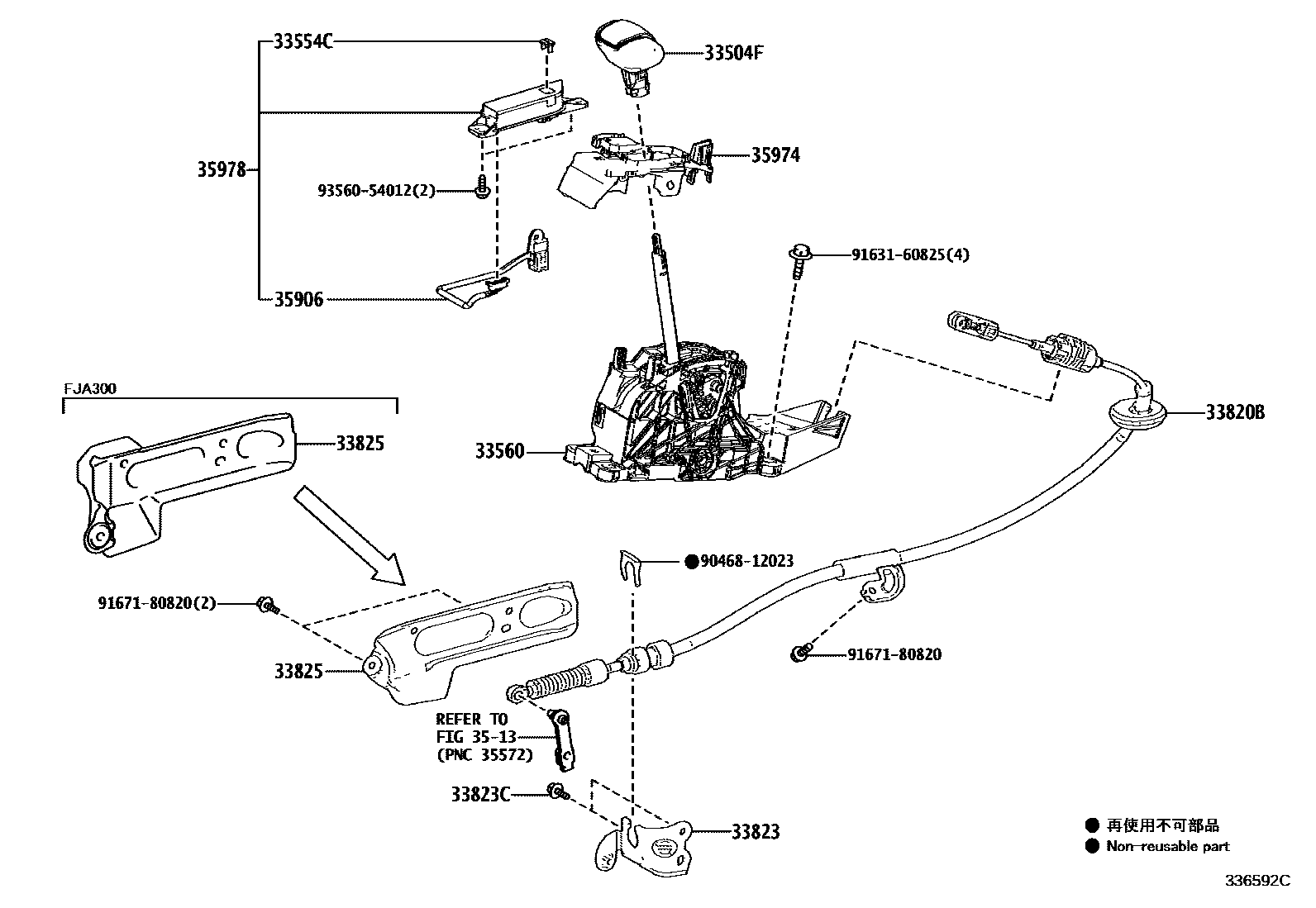

Toyota LAND CRUISER — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-60590-C0iFJA300,VJA300..GRS202107-202411

BLACK,TRIM2#,3#

main33504-60590-C0iFJA300,VJA300..GRS202107-202411

BLACK,TRIM2#,4#

main33504-60590-C0iFJA300,VJA300..GRS202107-202411

BLACK,TRIM2#,3#,4#

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-60220iFJA300,VJA300¥90202107-202411

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-60260iFJA300,VJA300¥18,400202107-202411

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-60230iFJA300,VJA300¥9,400202107-202411

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-60040iFJA300,VJA300¥620202107-202411

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main91671-80820iFJA300,VJA300¥80202107-202411

33825INSULATOR, TRANSMISSION CONTROL CABLE

main33825-60010iFJA300¥1,590202107-202411

main33825-60020iVJA300¥1,410202107-202411

3513

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-60190iFJA300,VJA300¥1,140202107-202411

35974HOUSING, POSITION INDICATOR, LOWER

main35974-60210iFJA300,VJA300¥2,260202107-202411

35978INDICATOR, SHIFT POSITION

main35978-60120iFJA300,VJA300¥6,600202107-202411

9046812023

main90468-12023¥170

9163160825

main91631-60825¥80

9167180820

main91671-80820¥80

9356054012

main93560-54012¥60

15 parts on this diagram · 1 diagram in section
