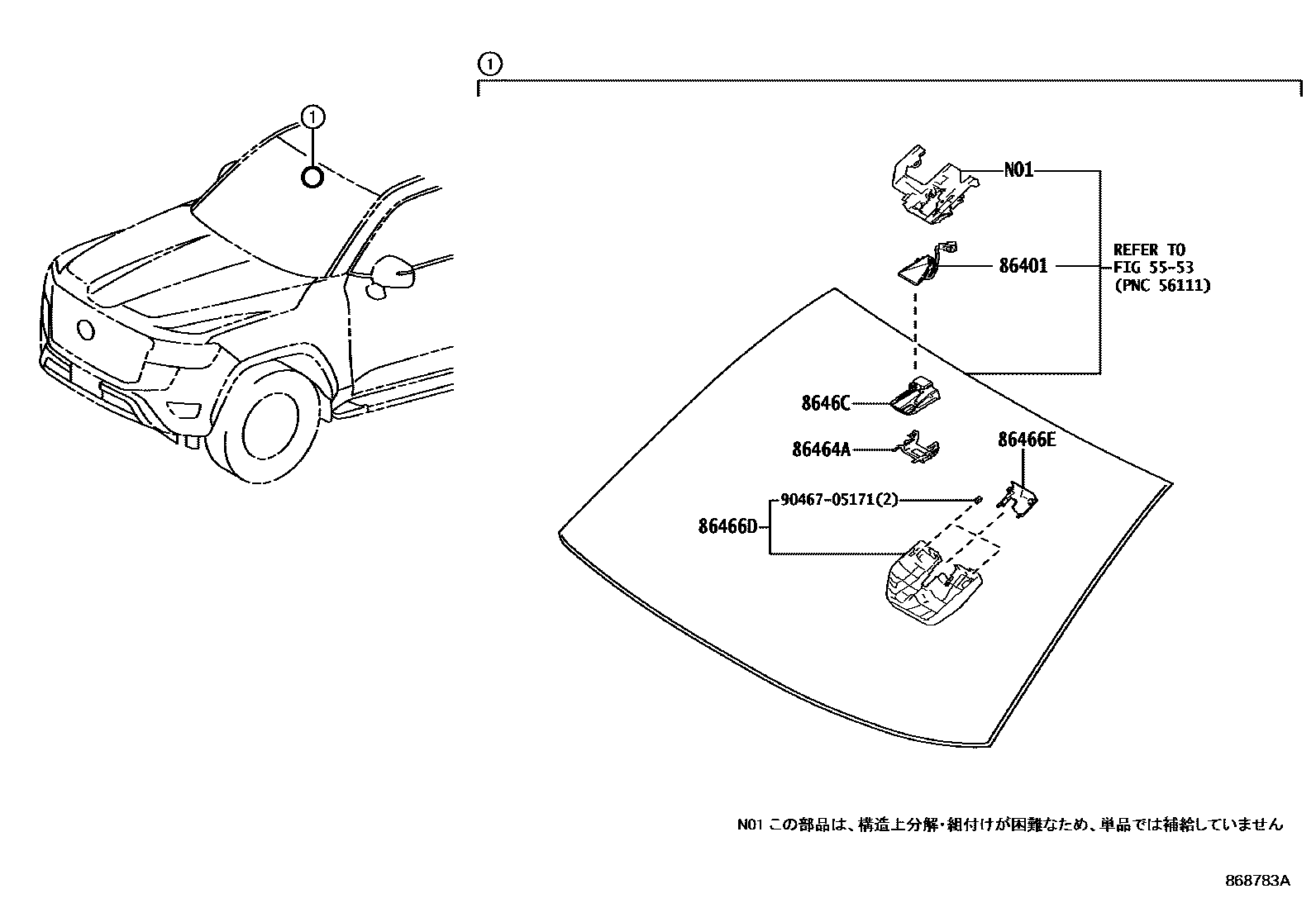

Toyota LAND CRUISER — PRE-COLLISION SYSTEM

0001 1 0002 1

5553

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-60030iFJA300,VJA300¥4,540202107-202411

86464ALATCH, FORWARD RECOGNITION

main86464-26010iFJA300,VJA300¥500202107-202411

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-60080iFJA300,VJA300¥3,400202107-202411

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-60100iFJA300,VJA300¥630202107-202411

8646CCAMERA, FORWARD RECOGNITION

main8646C-60060iFJA300,VJA300..GRS,VX,ZX¥47,300202107-202211

main8646C-60061iFJA300,VJA300..GRS,VX,ZX¥47,300202211-202310

main8646C-60062iFJA300,VJA300..GRS,VX,ZX¥47,300202310-202411

main8646C-60100iVJA300..AX,STD¥47,300202107-202211

main8646C-60101iVJA300..AX,STD¥47,300202211-202310

main8646C-60102iVJA300..AX,STD¥47,300202310-202411

9046705171

main90467-05171¥60

7 parts on this diagram · 2 diagrams in section
