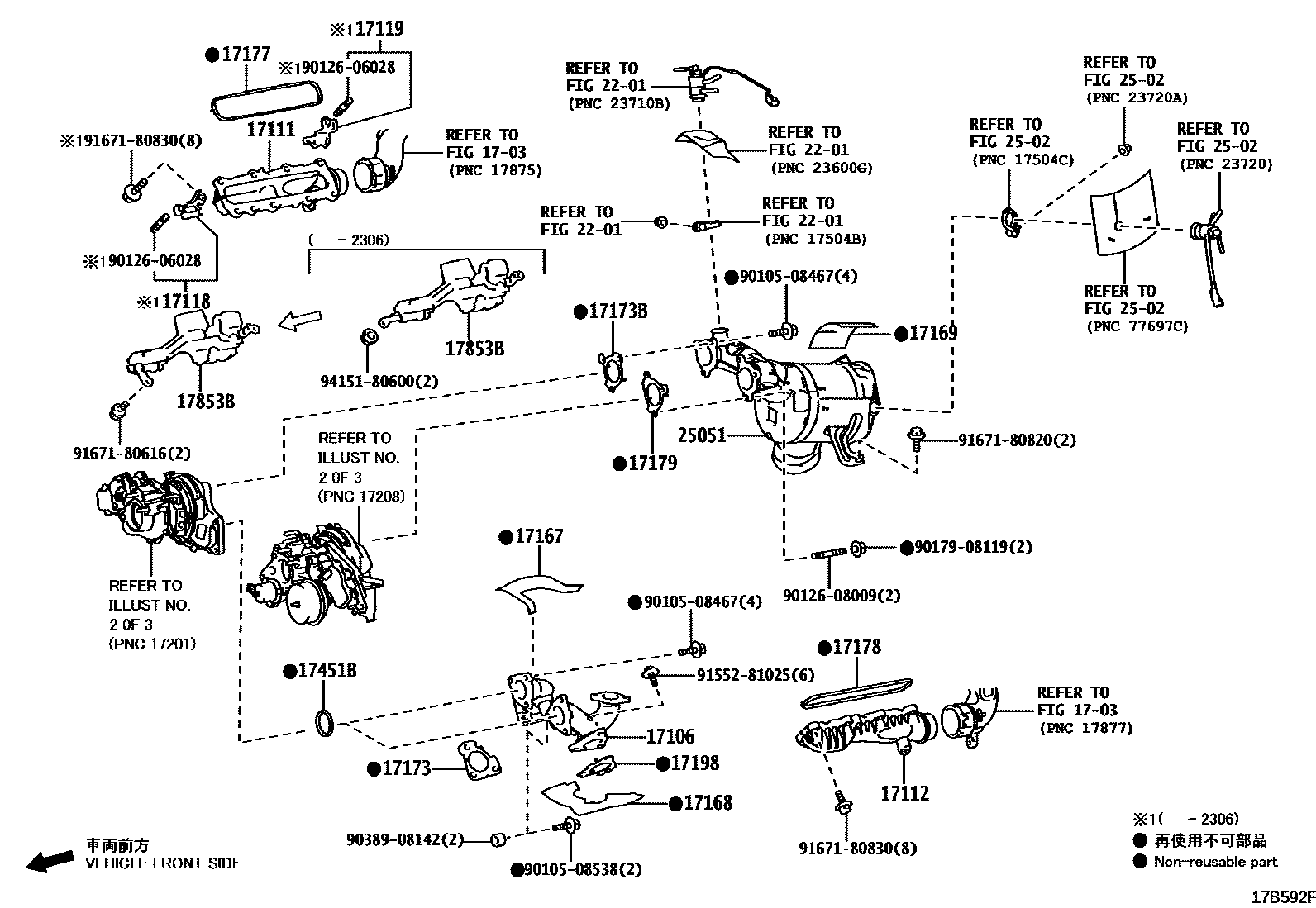

Toyota LAND CRUISER — MANIFOLD
1703
17106PIPE SUB-ASSY, EXHAUST CROSSOVER
17111MANIFOLD, INTAKE
17112MANIFOLD, INTAKE, NO.2
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173BGASKET, EXHAUST MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17179GASKET, EXHAUST MANIFOLD, NO.2
17198GASKET, EXHAUST MANIFOLD, NO.2
17451BGASKET, EXHAUST PIPE
17853BINSULATOR, INTAKE MANIFOLD
2201
2502
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
9010508467
9010508538
9012606028
9012608009
9017908119
9038908142
9155281025
9167180616
9167180820
9167180830
9415180600
31 parts on this diagram · 7 diagrams in section
