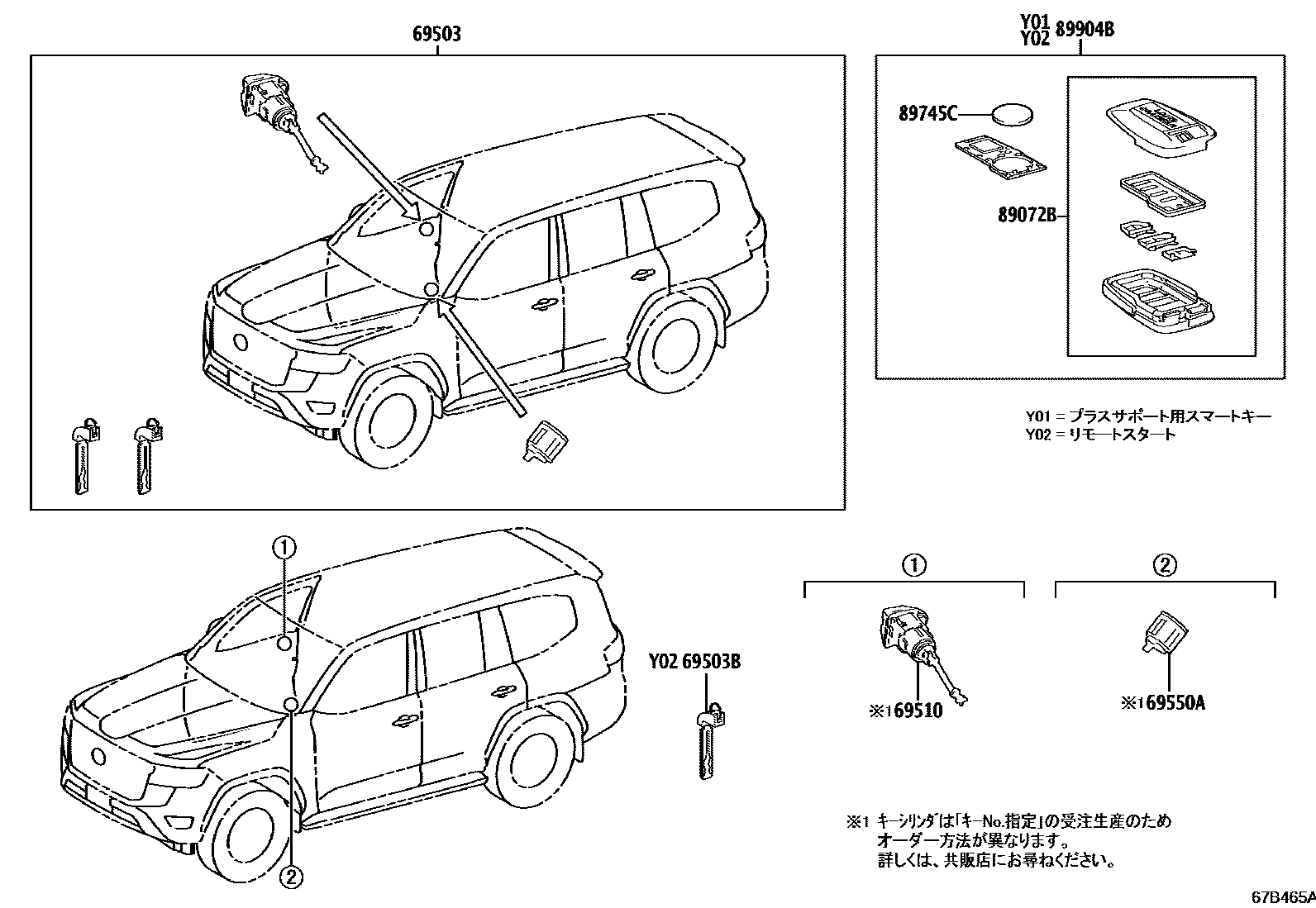

Toyota LAND CRUISER — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-60P00iFJA300,VJA300¥9,700202107-202411

69503BKEY, CUT

main69515-K0010iFJA300,VJA300¥7,100202107-202411

�}�X�^�[�L�[�C�v�i���U�W�j

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-60380iFJA300,VJA300¥10,400202107-202411

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iFJA300,VJA300¥10,000202107-202411

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-48E60iVJA300..AX,STD¥3,980202107-202411

main89072-60N80iVJA300..VX¥6,900202107-202411

main89072-60N90iFJA300,VJA300..ZX¥6,900202107-202411

�o�b�N�h�A�|�L���i�n���Y�t���[�p���[�o�b�N�h�A�j

main89072-60S70iFJA300,VJA300..GRS¥5,400202107-202411

89745CBATTERY, TRANSMITTER

main89745-K0010iFJA300,VJA300¥440202107-202411

�b�q�Q�S�T�O

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-48010iVJA300..AX,STD¥13,300202107-202206

sub8990H-48011¥13,200

main8990H-48011iVJA300..AX,STD¥13,200202207-202405

sub8990H-48012¥12,000

main8990H-48012iVJA300..AX,STD¥12,000202406-202411

main8990H-60320iVJA300..VX¥15,700202107-202201

sub8990H-60321¥15,700

main8990H-60321iVJA300..VX¥15,700202202-202405

main8990H-60322iVJA300..VX¥15,700202406-202411

main8990H-60330iVJA300..VX¥17,100202107-202201

�o�b�N�h�A�|�L���i�n���Y�t���[�p���[�o�b�N�h�A�j

sub8990H-60331¥17,100

main8990H-60331iVJA300..VX¥17,100202202-202405

�o�b�N�h�A�|�L���i�n���Y�t���[�p���[�o�b�N�h�A�j

sub8990H-60332¥17,100

main8990H-60332iFJA300,VJA300..ZX¥17,100202406-202411

�o�b�N�h�A�|�L���i�n���Y�t���[�p���[�o�b�N�h�A�j

main8990H-60360iFJA300,VJA300..GRS¥15,300202107-202201

sub8990H-60361¥15,300

main8990H-60361iFJA300,VJA300..GRS¥15,300202202-202405

sub8990H-60362¥15,300

main8990H-60362iFJA300,VJA300..GRS¥15,300202406-202411

7 parts on this diagram · 1 diagram in section
