Toyota LAND CRUISER — INSIDE TRIM BOARD

0001 1 0002 1 0003 1������� 0004 1��������

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iFJA300,VJA300¥90202107-202411

62111CBOARD, COWL SIDE TRIM, RH

main62111-60200-C0iVJA300..AX,STD,VX202107-202411

BLACK,TRIM2#

main62111-60200-C0iVJA300..AX,STD,VX202107-202411

BLACK,TRIM2#,3#

main62111-60200-E0iFJA300,VJA300..AX,STD,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-60300-C0iVJA300..AX,STD,VX202107-202411

BLACK,TRIM2#

main62112-60300-C0iVJA300..AX,STD,VX202107-202411

BLACK,TRIM2#,3#

main62112-60300-E0iFJA300,VJA300..AX,STD,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iFJA300,VJA300¥80202107-202411

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-60170iVJA300..7S¥70,800202107-202411

main62170-60180iFJA300,VJA300..5S¥52,400202107-202411

62170BBOLT, W/WASHER

main91673-80616iFJA300,VJA300..5S¥60202107-202411

62170CCLIP, CURTAIN SHIELD AIRBAG

main90467-10167iVJA300..7S¥90202107-202411

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-60150iVJA300..7S¥70,800202107-202411

main62180-60160iFJA300,VJA300..5S¥52,400202107-202411

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iFJA300,VJA300¥90202107-202411

62211UGARNISH ASSY, FRONT PILLAR, RH

main62210-60350-C1iVJA300..STD202107-202411

BLACK,TRIM2#

main62210-60350-E1iVJA300..STD202107-202411

NEUTRAL BEIGE,TRIM4#

main62210-60360-C2iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#,3#

main62210-60360-C2iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#

main62210-60360-E1iFJA300,VJA300..AX,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

62212BGARNISH ASSY, FRONT PILLAR, LH

main62220-60350-C1iVJA300..STD202107-202411

BLACK,TRIM2#

main62220-60350-E1iVJA300..STD202107-202411

NEUTRAL BEIGE,TRIM4#

main62220-60360-C2iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#,3#

main62220-60360-C2iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#

main62220-60360-E1iFJA300,VJA300..AX,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

62217HCLIP, CENTER PILLER GARNISH

main90467-10216iFJA300,VJA300¥100202107-202411

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-60180iFJA300,VJA300¥5,800202107-202411

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-60180iFJA300,VJA300¥5,800202107-202411

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-60110iFJA300,VJA300¥5,800202107-202411

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-60110iFJA300,VJA300¥5,800202107-202411

62411GARNISH, CENTER PILLAR, RH

main62410-60240-C1iVJA300..STD202107-202411

BLACK,TRIM2#

main62410-60240-E1iVJA300..STD202107-202411

NEUTRAL BEIGE,TRIM4#

main62410-60250-C2iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#,3#

main62410-60250-C2iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#

main62410-60250-E1iFJA300,VJA300..AX,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

62411FCLIP, CENTER PILLAR GARNISH, RH

main90467-10161iFJA300,VJA300¥90202107-202411

62412GARNISH, CENTER PILLAR, LH

main62420-60240-C1iVJA300..STD202107-202411

BLACK,TRIM2#

main62420-60240-E1iVJA300..STD202107-202411

NEUTRAL BEIGE,TRIM4#

main62420-60250-C2iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#,3#

main62420-60250-C2iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#

main62420-60250-E1iFJA300,VJA300..AX,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

62412ECLIP, CENTER PILLAR GARNISH, LH

main90467-10161iFJA300,VJA300¥90202107-202411

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-60110-C0iVJA300..AX,STD,VX202107-202411

BLACK,TRIM2#

main62413-60110-C0iVJA300..AX,STD,VX202107-202411

BLACK,TRIM2#,3#

main62413-60110-E0iFJA300,VJA300..AX,STD,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iFJA300,VJA300¥90202107-202411

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-60110-C0iVJA300..AX,STD,VX202107-202411

BLACK,TRIM2#

main62414-60110-C0iVJA300..AX,STD,VX202107-202411

BLACK,TRIM2#,3#

main62414-60110-E0iFJA300,VJA300..AX,STD,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

62430ACLIP, ROOF SIDE RAIL GARNISH

main90467-09245iFJA300,VJA300¥80202107-202411

62431BGARNISH, ROOF SIDE RAIL, NO.1 RH

main62431-60020-C0iVJA300..AX,STD,VX202107-202411

BLACK,TRIM2#

main62431-60020-C0iVJA300..AX,STD,VX202107-202411

BLACK,TRIM2#,3#

main62431-60020-E0iFJA300,VJA300..AX,STD,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

62432BGARNISH, ROOF SIDE RAIL, NO.1 LH

main62432-60070-C0iVJA300..AX,STD,VX202107-202411

BLACK,TRIM2#

main62432-60070-C0iVJA300..AX,STD,VX202107-202411

BLACK,TRIM2#,3#

main62432-60070-E0iFJA300,VJA300..AX,STD,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-10161iFJA300,VJA300¥90202107-202411

62471AGARNISH, ROOF SIDE, INNER RH

main62471-60650-C0iFJA300202107-202411

BLACK,TRIM2#,3#

main62471-60650-C0iFJA300202107-202411

BLACK,TRIM2#

main62471-60650-E0iFJA300,VJA300..5S..(STD,ZX)202107-202411

NEUTRAL BEIGE,TRIM4#

main62471-60660-C0iVJA300..GRS,ZX202107-202411

BLACK,TRIM2#,3#

main62471-60660-C0iVJA300..GRS,ZX202107-202411

BLACK,TRIM2#

main62471-60660-E0iVJA300..AX,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

62471GCLIP, ROOF SIDE INNER GARNISH

main90467-09245iFJA300,VJA300¥80202107-202411

62472AGARNISH, ROOF SIDE, INNER LH

main62472-60650-C0iFJA300202107-202411

BLACK,TRIM2#,3#

main62472-60650-C0iFJA300202107-202411

BLACK,TRIM2#

main62472-60650-E0iFJA300,VJA300..5S..(STD,ZX)202107-202411

NEUTRAL BEIGE,TRIM4#

main62472-60660-C0iVJA300..GRS,ZX202107-202411

BLACK,TRIM2#,3#

main62472-60660-C0iVJA300..GRS,ZX202107-202411

BLACK,TRIM2#

main62472-60660-E0iVJA300..AX,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-48020iFJA300,VJA300¥170202107-202411

62581EGARNISH, QUARTER PILLAR, RH

main62638-60310-C0iVJA300..STD202107-202411

BLACK,TRIM2#

main62638-60310-E0iVJA300..STD202107-202411

NEUTRAL BEIGE,TRIM4#

main62638-60330-C1iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#,3#

main62638-60330-C1iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#

main62638-60330-C1iFJA300,VJA300..GRS,ZX202107-202411

main62638-60330-C1iFJA300,VJA300..GRS,ZX202107-202411

main62638-60330-E1iFJA300,VJA300..AX,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

main62638-60330-E1iFJA300,VJA300..AX,VX,ZX202107-202411

main62638-60330-E1iFJA300,VJA300..AX,VX,ZX202107-202411

62582EGARNISH, QUARTER PILLAR, LH

main62639-60310-C0iVJA300..STD202107-202411

BLACK,TRIM2#

main62639-60310-E0iVJA300..STD202107-202411

NEUTRAL BEIGE,TRIM4#

main62639-60330-C1iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#,3#

main62639-60330-C1iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#

main62639-60330-C1iFJA300,VJA300..GRS,ZX202107-202411

main62639-60330-C1iFJA300,VJA300..GRS,ZX202107-202411

main62639-60330-E1iFJA300,VJA300..AX,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

main62639-60330-E1iFJA300,VJA300..AX,VX,ZX202107-202411

main62639-60330-E1iFJA300,VJA300..AX,VX,ZX202107-202411

62638BCLIP

main90467-09245iFJA300,VJA300¥80202107-202411

67913BPLATE, FRONT DOOR SCUFF, RH

main67910-60110-C0iVJA300..VX202107-202411

BLACK,TRIM2#

main67910-60110-C0iVJA300..VX202107-202411

main67910-60110-C0iVJA300..VX202107-202411

main67910-60110-E0iVJA300..VX202107-202411

NEUTRAL BEIGE,TRIM4#

main67910-60110-E0iVJA300..VX202107-202411

main67910-60110-E0iVJA300..VX202107-202411

main67910-60120-C0iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#,3#

main67910-60120-C0iFJA300,VJA300..GRS,ZX202107-202411

main67910-60120-E0iFJA300,VJA300..ZX202107-202411

NEUTRAL BEIGE,TRIM4#

main67910-60120-E0iFJA300,VJA300..ZX202107-202411

main67913-60240-C0iVJA300..AX,STD202107-202411

BLACK,TRIM2#

main67913-60240-C0iVJA300..AX,STD202107-202411

main67913-60240-E0iVJA300..AX,STD202107-202411

NEUTRAL BEIGE,TRIM4#

main67913-60240-E0iVJA300..AX,STD202107-202411

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-60220-C0iVJA300..AX,STD202107-202411

BLACK,TRIM2#

main67914-60220-C0iVJA300..AX,STD202107-202411

main67914-60220-E0iVJA300..AX,STD202107-202411

NEUTRAL BEIGE,TRIM4#

main67914-60220-E0iVJA300..AX,STD202107-202411

main67920-60110-C0iVJA300..VX202107-202411

BLACK,TRIM2#

main67920-60110-C0iVJA300..VX202107-202411

main67920-60110-C0iVJA300..VX202107-202411

main67920-60110-E0iVJA300..VX202107-202411

NEUTRAL BEIGE,TRIM4#

main67920-60110-E0iVJA300..VX202107-202411

main67920-60110-E0iVJA300..VX202107-202411

main67920-60120-C0iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#,3#

main67920-60120-C0iFJA300,VJA300..GRS,ZX202107-202411

main67920-60120-E0iFJA300,VJA300..ZX202107-202411

NEUTRAL BEIGE,TRIM4#

main67920-60120-E0iFJA300,VJA300..ZX202107-202411

67917CPLATE, REAR DOOR SCUFF, RH

main67917-60230-C0iVJA300..AX,STD202107-202411

BLACK,TRIM2#

main67917-60230-C0iVJA300..AX,STD202107-202411

main67917-60230-E0iVJA300..AX,STD202107-202411

NEUTRAL BEIGE,TRIM4#

main67917-60230-E0iVJA300..AX,STD202107-202411

main67930-60100-C0iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#,3#

main67930-60100-C0iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#

main67930-60100-C0iFJA300,VJA300..GRS,ZX202107-202411

main67930-60100-C0iFJA300,VJA300..GRS,ZX202107-202411

main67930-60100-C0iFJA300,VJA300..GRS,ZX202107-202411

main67930-60100-E0iFJA300,VJA300..VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

main67930-60100-E0iFJA300,VJA300..VX,ZX202107-202411

main67930-60100-E0iFJA300,VJA300..VX,ZX202107-202411

67918DPLATE, REAR DOOR SCUFF, LH

main67918-60220-C0iVJA300..AX,STD202107-202411

BLACK,TRIM2#

main67918-60220-C0iVJA300..AX,STD202107-202411

main67918-60220-E0iVJA300..AX,STD202107-202411

NEUTRAL BEIGE,TRIM4#

main67918-60220-E0iVJA300..AX,STD202107-202411

main67940-60060-C0iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#,3#

main67940-60060-C0iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#

main67940-60060-C0iFJA300,VJA300..GRS,ZX202107-202411

main67940-60060-C0iFJA300,VJA300..GRS,ZX202107-202411

main67940-60060-C0iFJA300,VJA300..GRS,ZX202107-202411

main67940-60060-E0iFJA300,VJA300..VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

main67940-60060-E0iFJA300,VJA300..VX,ZX202107-202411

main67940-60060-E0iFJA300,VJA300..VX,ZX202107-202411

7152

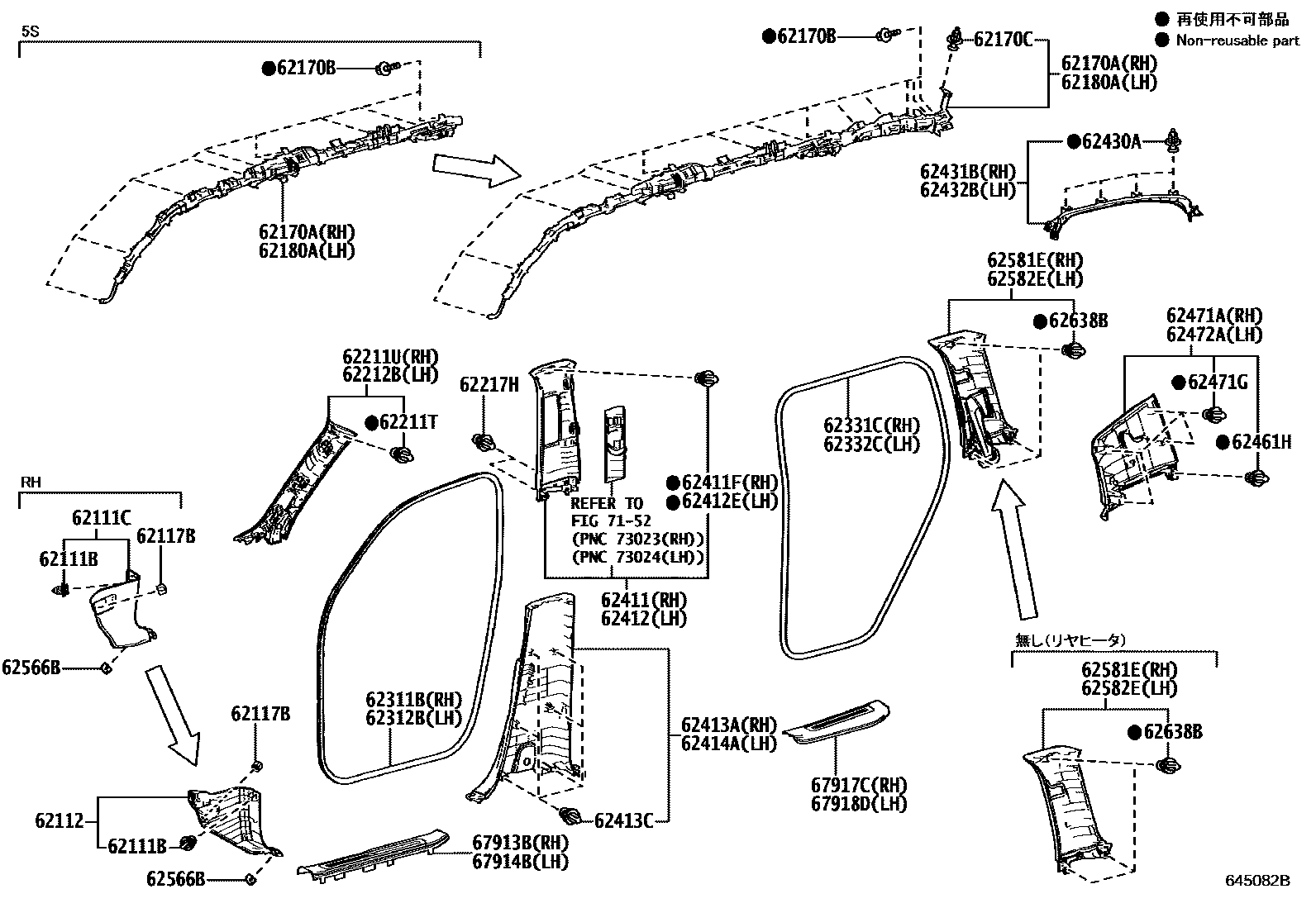

39 parts on this diagram · 4 diagrams in section
