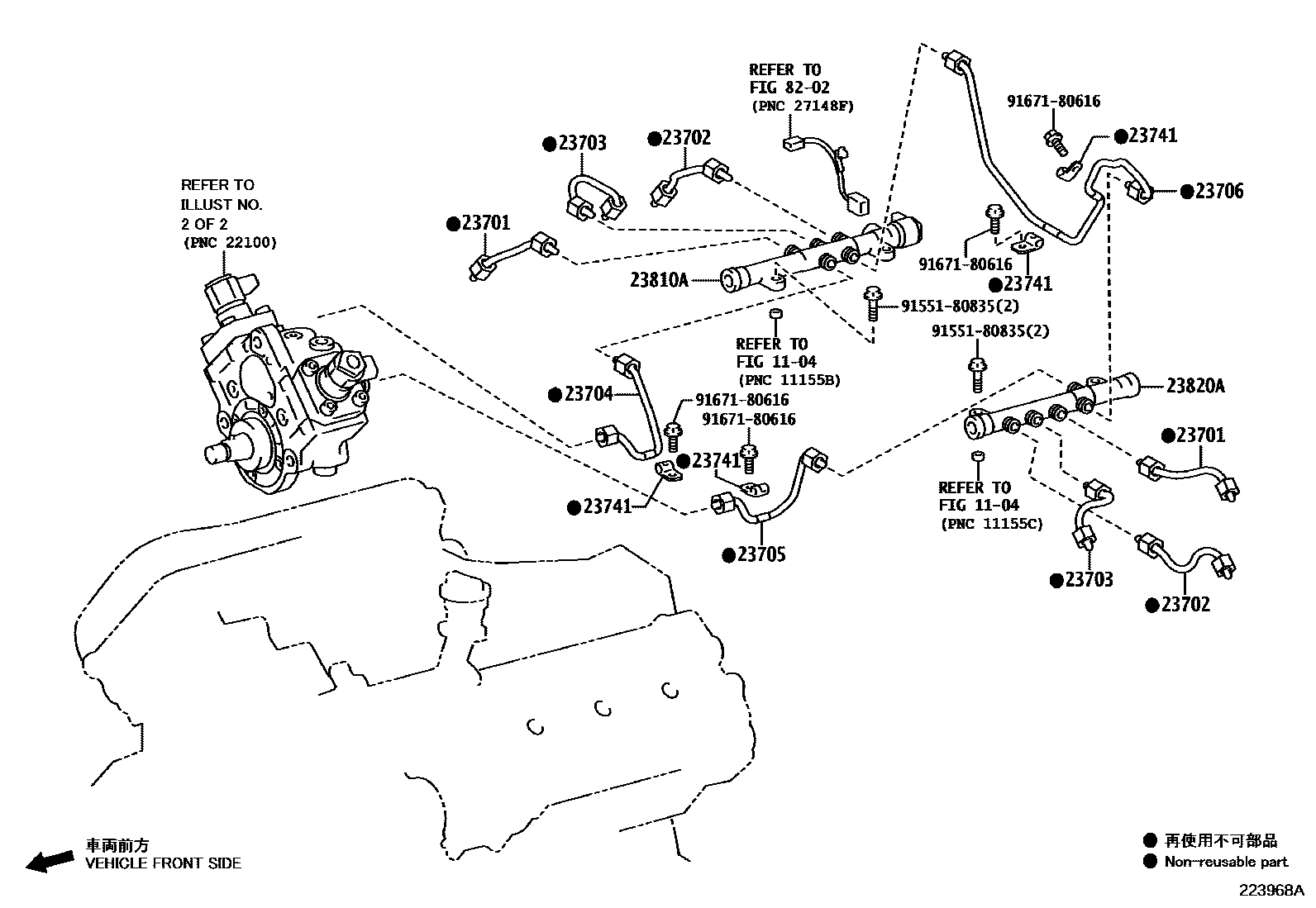

Toyota LAND CRUISER — INJECTION PUMP ASSEMBLY

0001 1 0002 1

1104

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-52010iF33AFTV..FJA300¥1,800202107-202411

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-52010iF33AFTV..FJA300¥1,800202107-202411

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-52010iF33AFTV..FJA300¥1,800202107-202411

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-52010iF33AFTV..FJA300¥2,510202107-202411

23705PIPE SUB-ASSY, INJECTION, NO.5

main23705-52010iF33AFTV..FJA300¥2,510202107-202411

23706PIPE SUB-ASSY, INJECTION, NO.6

main23706-52020iF33AFTV..FJA300¥4,100202107-202411

23741CLAMP, INJECTION PIPE, NO.1

main23741-30010iF33AFTV..FJA300¥300202107-202411

23810ARAIL ASSY, COMMON

main23810-52010iF33AFTV..FJA300¥30,500202107-202411

23820ARAIL ASSY, COMMON

main23820-52010iF33AFTV..FJA300¥8,100202107-202411

8202

9155180835

main91551-80835¥80

9167180616

main91671-80616¥60

13 parts on this diagram · 2 diagrams in section
