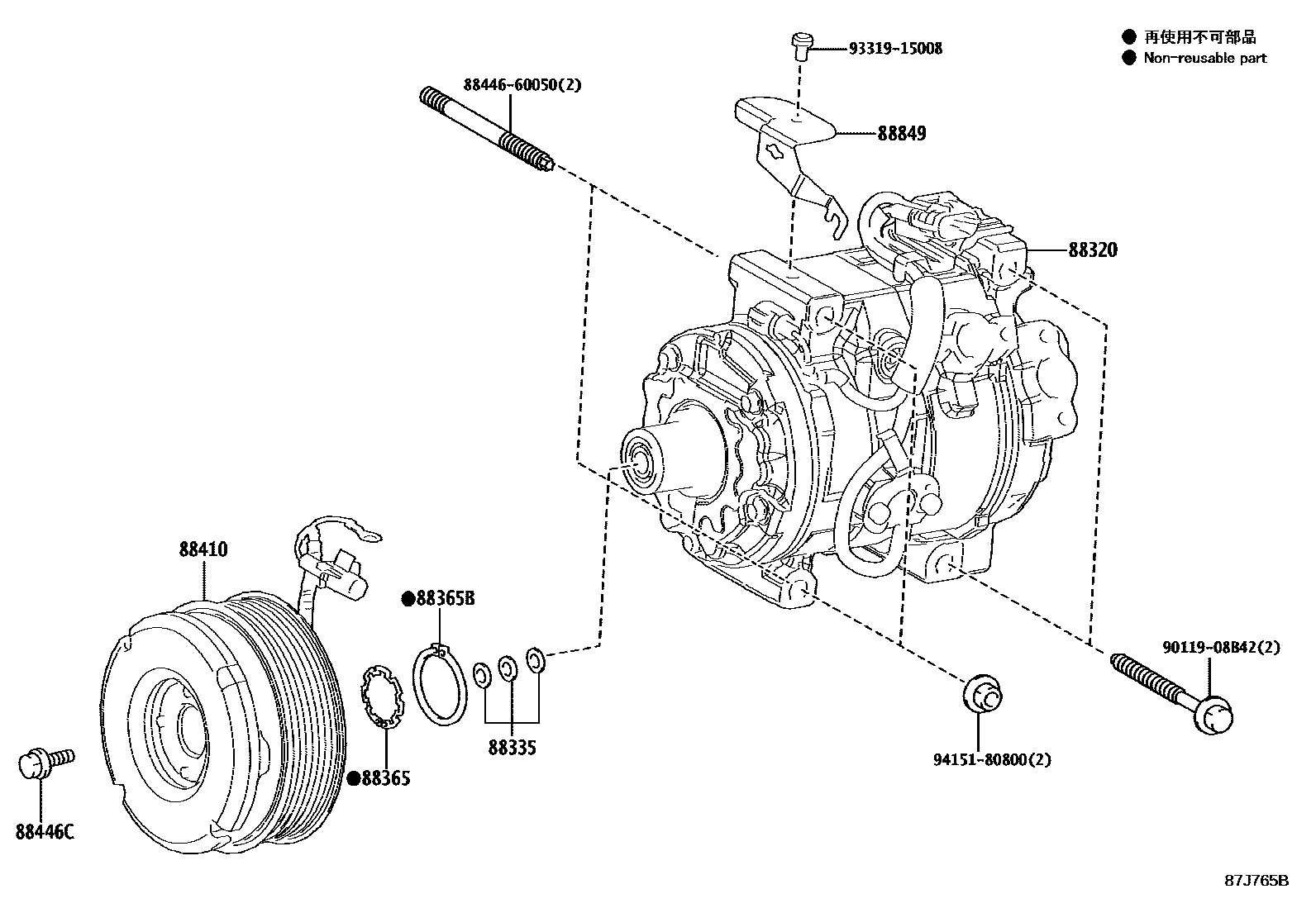

Toyota LAND CRUISER — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88320COMPRESSOR ASSY, COOLER

main88320-60C30iVJA300202107-202411

main88320-60C70iFJA300202107-202411

88335GASKET KIT, OVERHAUL

main88335-14020iFJA300,VJA300202107-202411

88365RING, SNAP

main90099-07065iFJA300,VJA300¥90202107-202411

88365BRING, SNAP, NO.2

main90099-07114iFJA300,VJA300202107-202411

88410CLUTCH ASSY, MAGNET

main88410-60490iFJA300¥24,300202107-202411

main88410-60510iVJA300¥23,000202107-202411

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iFJA300,VJA300202107-202411

88849BRACKET, COOLER COMPRESSOR, NO.2

main88849-60030iFJA300,VJA300202107-202411

8844660050BOLT, IDLE PULLEY

main88446-60050¥0

9011908B42

main90119-08B42¥0

9331915008

main93319-15008¥170

9415180800

main94151-80800¥80

11 parts on this diagram · 2 diagrams in section
