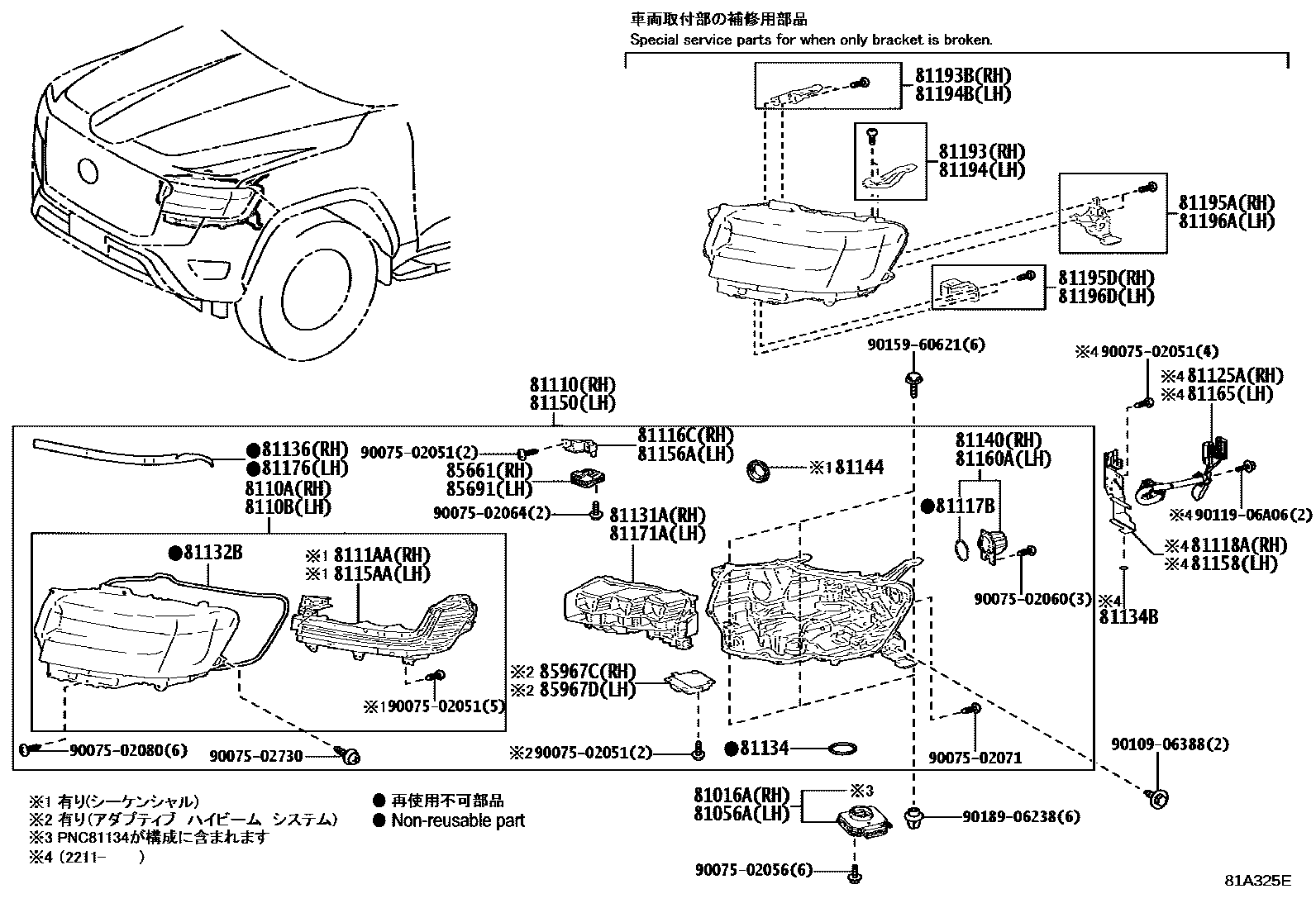

Toyota LAND CRUISER — HEADLAMP

81016ACOMPUTER SUB-ASSY, HEADLAMP, RH

main81016-60Q30iFJA300,VJA300..GRS,ZX¥22,300202211-202411

main81016-60Q50iFJA300,VJA300..GRS,ZX¥22,300202107-202211

main81016-60Q60iVJA300..AX,STD,VX¥20,300202211-202411

main81016-60Q70iVJA300..AX,STD,VX¥20,200202107-202211

81056ACOMPUTER SUB-ASSY, HEADLAMP, LH

main81056-60Q30iFJA300,VJA300..GRS,ZX¥22,300202211-202411

main81056-60Q50iFJA300,VJA300..GRS,ZX¥22,300202107-202211

main81056-60Q60iVJA300..AX,STD,VX¥20,300202211-202411

main81056-60Q70iVJA300..AX,STD,VX¥20,200202107-202211

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-60Q50iFJA300,VJA300..GRS,ZX¥29,800202107-202411

main8110A-60Q90iVJA300..AX,STD,VX¥20,900202107-202411

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-60Q50iFJA300,VJA300..GRS,ZX¥29,800202107-202411

main8110B-60Q90iVJA300..AX,STD,VX¥20,900202107-202411

81110HEADLAMP ASSY, RH

main81145-60Q30iFJA300,VJA300..GRS,ZX¥217,000202107-202110

sub81145-60Q31¥217,000

main81145-60Q31iFJA300,VJA300..GRS,ZX¥217,000202111-202211

main81145-60Q32iFJA300,VJA300..GRS,ZX¥217,000202211-202411

main81145-60Q80iVJA300..AX,STD,VX¥117,000202107-202110

sub81145-60Q81¥117,000

main81145-60Q81iVJA300..AX,STD,VX¥117,000202111-202211

main81145-60Q82iVJA300..AX,STD,VX¥106,000202211-202411

81116CBRACKET, HEADLAMP, RH

main81116-48F80iFJA300,VJA300¥910202107-202403

main81116-60Q32iFJA300,VJA300202403-202411

81117BGASKET

main90075-23006iFJA300,VJA300¥220202107-202411

81118ABRACKET, HEADLAMP, RH

main81146-60Q30iFJA300,VJA300¥900202211-202411

8111AAUNIT, HEADLAMP TURN SIGNAL LED, RH

main8112A-60Q50iFJA300,VJA300..GRS,ZX¥17,800202107-202411

81125ACORD, HEADLAMP, RH

main82214-60100iFJA300,VJA300¥2,140202211-202411

81131AUNIT, HEADLAMP, RH

main81130-60Q30iFJA300,VJA300..GRS,ZX¥89,700202107-202411

main81130-60Q60iVJA300..AX,STD,VX¥47,800202107-202411

81132BGASKET, HEADLAMP LENS

main81132-30E40iFJA300,VJA300¥2,230202107-202411

81134GASKET, HEADLAMP

main90075-23003iFJA300,VJA300¥200202107-202411

81134BTAPE, HEADLAMP PLATE

main81134-60R20iFJA300,VJA300¥170202211-202411

81136PROTECTOR, HEADLAMP, NO.1 RH

main81117-60Q50iFJA300,VJA300¥460202107-202110

sub81117-60Q51¥410

main81117-60Q51iFJA300,VJA300¥410202111-202411

81140UNIT ASSY, HEADLAMP LED, RH

main81140-60Q50iFJA300,VJA300¥17,800202107-202411

81144COVER, HEADLAMP, NO.1

main90075-66016iFJA300,VJA300..GRS,ZX¥610202107-202411

81150HEADLAMP ASSY, LH

main81185-60Q30iFJA300,VJA300..GRS,ZX¥217,000202107-202110

sub81185-60Q31¥217,000

main81185-60Q31iFJA300,VJA300..GRS,ZX¥217,000202111-202211

main81185-60Q32iFJA300,VJA300..GRS,ZX¥217,000202211-202411

main81185-60Q80iVJA300..AX,STD,VX¥117,000202107-202110

sub81185-60Q81¥117,000

main81185-60Q81iVJA300..AX,STD,VX¥117,000202111-202211

main81185-60Q82iVJA300..AX,STD,VX¥106,000202211-202411

81156ABRACKET, HEADLAMP, LH

main81156-48F80iFJA300,VJA300¥910202107-202403

main81156-60Q32iFJA300,VJA300202403-202411

81158BRACKET, HEADLAMP, LH

main81186-60Q30iFJA300,VJA300¥900202211-202411

8115AAUNIT, HEADLAMP TURN SIGNAL LED, LH

main8116A-60Q50iFJA300,VJA300..GRS,ZX¥17,800202107-202411

81160AUNIT ASSY, HEADLAMP LED, LH

main81160-60Q50iFJA300,VJA300¥17,800202107-202411

81165CORD, HEADLAMP, LH

main82225-60050iFJA300,VJA300¥2,140202211-202411

81171AUNIT, HEADLAMP, LH

main81170-60Q30iFJA300,VJA300..GRS,ZX¥89,700202107-202411

main81170-60Q60iVJA300..AX,STD,VX¥47,800202107-202411

81176PROTECTOR, HEADLAMP, NO.1 LH

main81157-60Q50iFJA300,VJA300¥460202107-202110

sub81157-60Q51¥410

main81157-60Q51iFJA300,VJA300¥410202111-202411

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-60200iFJA300,VJA300¥700202107-202411

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-60210iFJA300,VJA300¥550202107-202411

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-60200iFJA300,VJA300¥700202107-202411

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-60210iFJA300,VJA300¥550202107-202411

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-60200iFJA300,VJA300¥1,110202107-202411

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-60210iFJA300,VJA300¥700202107-202411

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-60200iFJA300,VJA300¥1,110202107-202411

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-60210iFJA300,VJA300¥700202107-202411

85661MOTOR, HEADLAMP LEVELING, RH

main85661-45010iFJA300,VJA300¥10,500202107-202411

85691MOTOR, HEADLAMP LEVELING, LH

main85691-45010iFJA300,VJA300¥10,500202107-202411

85967CCOMPUTER, LIGHT CONTROL LED, RH

main85967-48100iFJA300,VJA300..GRS,ZX¥21,700202107-202411

85967DCOMPUTER, LIGHT CONTROL LED, LH

main85967-48090iFJA300,VJA300..GRS,ZX¥21,700202107-202411

9007502051

main90075-02051¥60

9007502056

main90075-02056¥60

9007502060

main90075-02060¥60

9007502064

main90075-02064¥60

9007502071

main90075-02071¥90

9007502080

main90075-02080¥60

9007502730

main90075-02730¥70

9010906388

main90109-06388¥70

9011906A06

main90119-06A06¥60

9015960621

main90159-60621¥60

9018906238

main90189-06238¥100

48 parts on this diagram · 1 diagram in section
