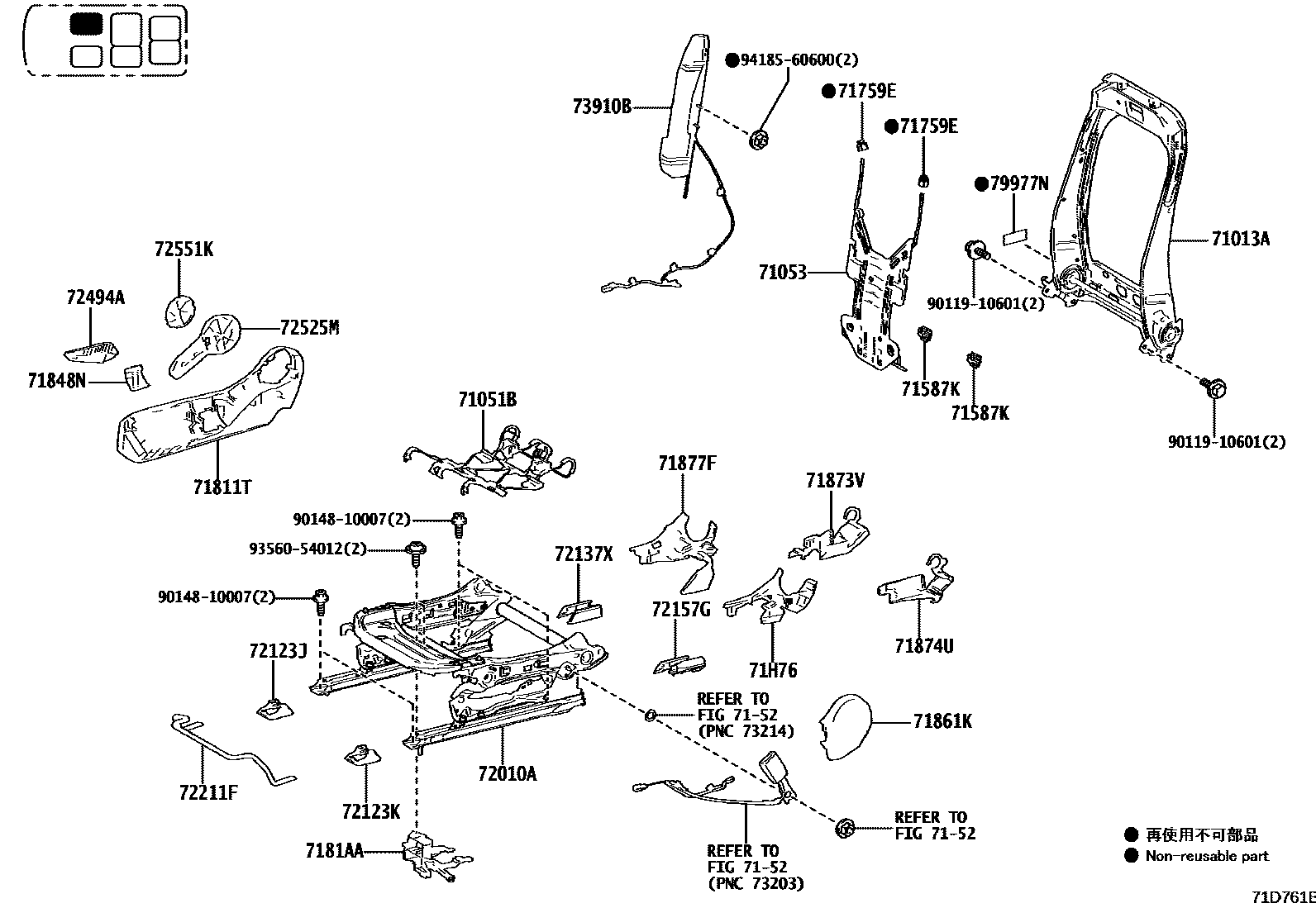

Toyota LAND CRUISER — FRONT SEAT & SEAT TRACK

0001 1������,�������� 0002 1������,�������� 0003 1�������,�������� 0004 1�������,�������� 0005 1������,������� 0006 1������,������� 0007 1������(���������),������� 0008 1�������,������� 0009 1�������,������� 0010 1�������(���������),�������

71013AFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-60740iVJA300..AX¥30,300202107-202411

main71013-60750iFJA300,VJA300..GRS,VX,ZX¥30,300202107-202411

�V�[�g�\���|�{�v�i�X���[�X�j

main71013-60A10iVJA300..STD¥15,500202107-202411

71051BSPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47090iFJA300,VJA300¥4,110202107-202411

71053SPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-47050iVJA300..STD¥5,200202107-202411

7152

71587KPROTECTOR, FRONT SEATBACK EDGE, RH

main71587-47010iFJA300,VJA300¥200202107-202411

71759EHOOK, FRONT SEATBACK, RH

main71759-50040iFJA300,VJA300¥130202107-202411

71811TSHIELD, FRONT SEAT CUSHION, RH

main71811-26510-C0iVJA300..STD202107-202411

BLACK,TRIM2#

main71811-26510-E0iVJA300..STD202107-202411

NEUTRAL BEIGE,TRIM4#

main71811-42200-C0iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#,3#

main71811-42200-C0iFJA300,VJA300..GRS,ZX202107-202411

BLACK,TRIM2#

main71811-42200-E0iFJA300,VJA300..AX,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

7181AAHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-42010iFJA300,VJA300..AX,GRS,VX,ZX¥3,000202107-202411

main7181A-47010iVJA300..STD¥1,220202107-202411

71848NCAP, FRONT SEAT ADJUSTER COVER, RH NO.1

main71848-42020-C0iVJA300..STD202107-202411

BLACK,TRIM2#

main71848-42020-E1iVJA300..STD202107-202411

NEUTRAL BEIGE,TRIM4#

71861KSHIELD, FRONT SEAT CUSHION, INNER RH

main71861-47070-C1iVJA300..AX,STD,VX202107-202411

BLACK,TRIM2#

sub71861-47070¥1,090

main71861-47070-C1iVJA300..AX,STD,VX202107-202411

BLACK,TRIM2#,3#

sub71861-47070¥1,090

main71861-47070-E0iFJA300,VJA300..AX,STD,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

sub71861-47070¥1,090

71873VSHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-60160iFJA300,VJA300..AX,GRS,VX,ZX¥740202107-202411

�E���V�[�g�@�m�n�D�P

main71873-60220iVJA300..STD¥1,090202107-202411

�E���V�[�g�@�m�n�D�Q

main71874-42050iFJA300,VJA300..GRS,VX,ZX¥740202107-202411

�����V�[�g

main71874-42050iFJA300,VJA300..GRS,VX,ZX¥740202107-202411

�V�[�g�\���|�{�v�i�X���[�X�j,�����V�[�g

71874USHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-42060iVJA300..STD¥740202107-202411

�E���V�[�g

main71874-60130iFJA300,VJA300..GRS,VX,ZX¥740202107-202411

�����V�[�g�@�m�n�D�P

main71874-60130iFJA300,VJA300..GRS,VX,ZX¥740202107-202411

�V�[�g�\���|�{�v�i�X���[�X�j,�����V�[�g�@�m�n�D�P

main71874-60180iFJA300,VJA300..GRS,VX,ZX¥1,090202107-202411

�����V�[�g�@�m�n�D�Q

main71874-60180iFJA300,VJA300..GRS,VX,ZX¥1,090202107-202411

�V�[�g�\���|�{�v�i�X���[�X�j,�����V�[�g�@�m�n�D�Q

71877FCOVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT)

main71875-60330-C0iVJA300..AX,STD,VX202107-202411

BLACK,TRIM2#

main71875-60330-C0iVJA300..AX,STD,VX202107-202411

BLACK,TRIM2#,3#

main71875-60330-E0iFJA300,VJA300..AX,STD,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

71H76COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

main71875-42100-C0iVJA300..AX,STD,VX202107-202411

BLACK,TRIM2#,3#

main71875-42100-C0iVJA300..AX,STD,VX202107-202411

BLACK,TRIM2#

main71875-42100-E1iFJA300,VJA300..AX,STD,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

72010AADJUSTER ASSY, FRONT SEAT, RH

main72010-60630iVJA300..STD¥26,300202107-202411

main72010-60650iVJA300..AX¥71,100202107-202411

main72010-60670iFJA300,VJA300..GRS,VX,ZX¥71,100202107-202411

�V�[�g�\���|�{�v�i�X���[�X�j

72123JCOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-10100iFJA300,VJA300¥340202107-202411

72123KCOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-10100iFJA300,VJA300¥340202107-202411

72137XCOVER, SEAT TRACK BRACKET, OUTER REAR RH

main72137-47060iFJA300,VJA300¥430202107-202411

72157GCOVER, SEAT TRACK BRACKET, INNER REAR RH

main72157-47080iFJA300,VJA300¥460202107-202411

72211FHANDLE, SEAT TRACK ADJUSTING, RH

main72211-60240iVJA300..STD¥1,170202107-202411

72494AHANDLE, FRONT SEAT VERTICAL ADJUSTER, RH

main72494-26020-C0iVJA300..STD202107-202411

BLACK,TRIM2#

main72494-26020-E1iVJA300..STD202107-202411

NEUTRAL BEIGE,TRIM4#

72525MHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-26160-C0iVJA300..STD202107-202411

BLACK,TRIM2#

main72525-26160-E1iVJA300..STD202107-202411

NEUTRAL BEIGE,TRIM4#

72551KCOVER, RECLINING HINGE, RH

main72551-47030-C1iVJA300..STD202107-202411

BLACK,TRIM2#

sub72551-47030¥650

main72551-47030-E0iVJA300..STD202107-202411

NEUTRAL BEIGE,TRIM4#

sub72551-47030¥650

73910BAIRBAG ASSY, FRONT SEAT, RH

main73910-60040iFJA300,VJA300¥20,000202107-202411

79977NFELT, SEATBACK

main79977-12090iVJA300..AX¥540202107-202411

�����V�[�g�p

main79977-76010iVJA300..AX¥1,080202107-202411

�E���V�[�g�p

main79977-76010iVJA300..AX¥1,080202107-202411

�V�[�g�\���|�{�v�i�X���[�X�j

9011910601

main90119-10601¥90

9014810007

main90148-10007¥60

9356054012

main93560-54012¥60

9418560600

main94185-60600¥70

29 parts on this diagram · 10 diagrams in section
