Toyota LAND CRUISER — FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-52040iFJA300,VJA300¥2,230202107-202411

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-52030iFJA300,VJA300¥2,230202107-202411

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-52040iFJA300,VJA300¥2,230202107-202411

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-52030iFJA300,VJA300¥2,230202107-202411

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-60110iFJA300,VJA300¥5,100202107-202212

sub69801-60111¥4,560

main69801-60111iFJA300,VJA300¥4,560202301-202411

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-60110iFJA300,VJA300¥5,100202107-202212

sub69802-60111¥4,560

main69802-60111iFJA300,VJA300¥4,560202301-202411

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-60390iFJA300,VJA300¥13,900202107-202411

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-60370iFJA300,VJA300¥13,900202107-202411

9010508448

main90105-08448¥80

9010508504

main90105-08504¥80

9010508519

main90105-08519¥80

9011906984

main90119-06984¥60

9016850040

main90168-50040¥70

9415180640

main94151-80640¥60

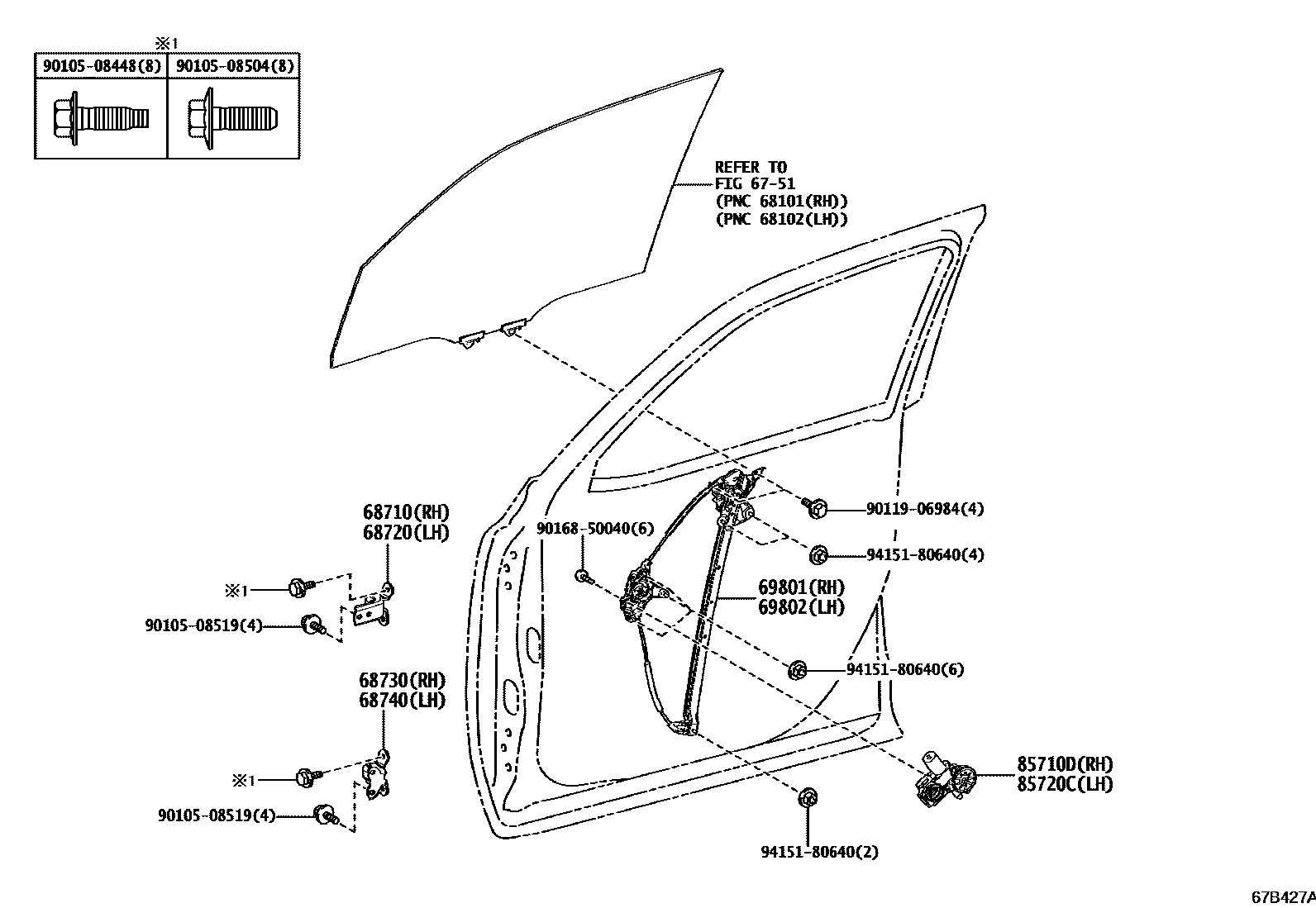

15 parts on this diagram · 1 diagram in section
