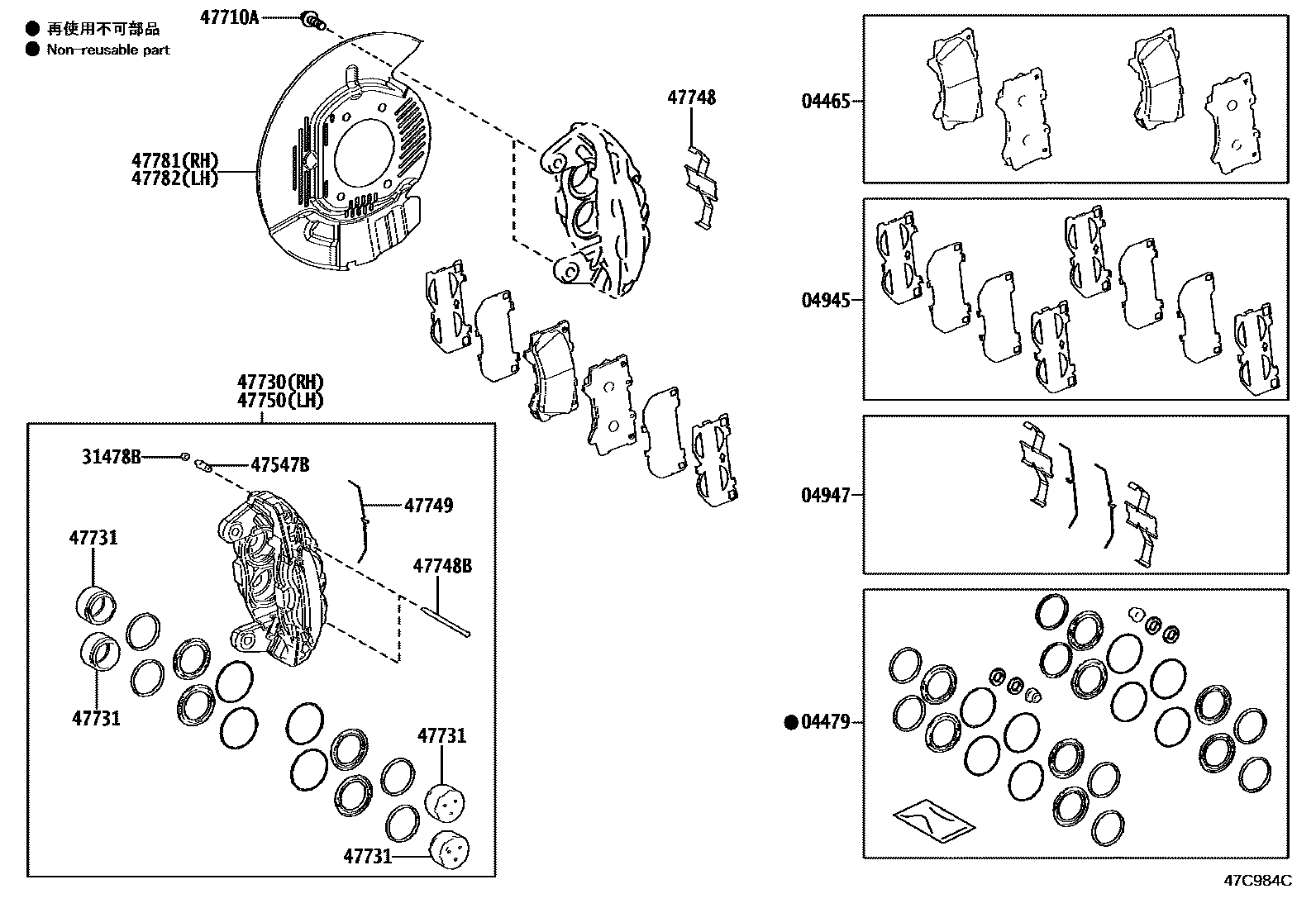

Toyota LAND CRUISER — FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-60380iFJA300,VJA300¥11,400202107-202411

�}�[�N�@�`�c�u�h�b�r�@�u�b�O�W�S�g

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-60070iFJA300,VJA300¥3,690202107-202411

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-60100iFJA300,VJA300¥1,220202107-202411

04947FITTING KIT, DISC BRAKE, FRONT

main04947-60150iFJA300,VJA300¥1,470202107-202411

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iFJA300,VJA300¥160202107-202411

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030iFJA300,VJA300¥230202107-202411

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14216iFJA300,VJA300¥240202107-202411

���P�S�|�P�D�T�o�w�S�O�|�R�S

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-60440iFJA300,VJA300¥36,700202107-202411

47731PISTON, FRONT DISC BRAKE

main47731-60440iFJA300,VJA300¥1,080202107-202411

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-60440iFJA300,VJA300¥570202107-202411

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06024iFJA300,VJA300¥70202107-202411

47749CLIP, PIN HOLD

main47743-60280iFJA300,VJA300¥180202107-202411

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-60440iFJA300,VJA300¥36,700202107-202411

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-60230iFJA300,VJA300¥3,060202107-202411

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-60200iFJA300,VJA300¥3,060202107-202411

15 parts on this diagram · 1 diagram in section
