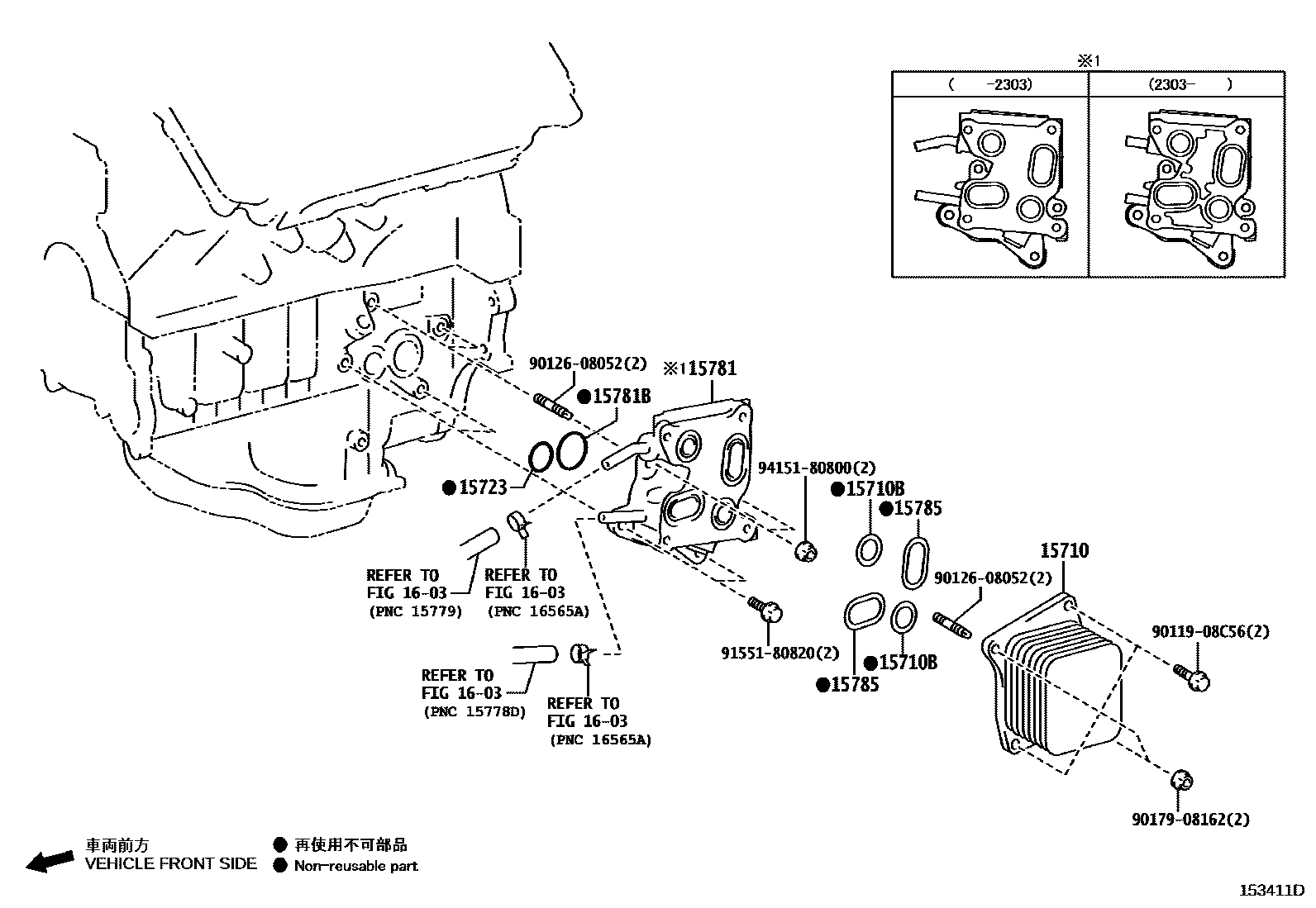

Toyota LAND CRUISER — ENGINE OIL COOLER

0001 1 0002 1

15710COOLER ASSY, OIL

main15710-52020iF33AFTV..FJA300¥36,800202107-202411

main15710-70060iV35AFTS..VJA300¥28,900202107-202411

15710BRING, O(FOR OIL COOLER)

main96762-31025iF33AFTV..FJA300¥130202107-202411

15723RING, O

main12151-62010iF33AFTV..FJA300¥200202306-202411

main96743-35035iF33AFTV..FJA300¥220202107-202305

sub12151-62010¥200

15781BRACKET, OIL COOLER, NO.1

main15781-52010iF33AFTV..FJA300¥12,100202107-202303

sub15781-62010¥10,600

sub15778-62040¥730

main15781-62010iF33AFTV..FJA300¥10,600202303-202411

15781BRING,O(FOR OIL COOLER BRACKET NO.1)

main12152-62010iF33AFTV..FJA300¥170202306-202411

main96743-35025iF33AFTV..FJA300¥190202107-202305

sub12152-62010¥170

15785GASKET, OIL COOLER

main15785-52010iF33AFTV..FJA300¥340202107-202411

main15785-70010iV35AFTS..VJA300¥340202107-202411

1603

9011908C56

main90119-08C56¥100

9012608052

main90126-08052¥80

9017908162

main90179-08162¥110

9155180820

main91551-80820¥80

9415180800

main94151-80800¥80

12 parts on this diagram · 2 diagrams in section
