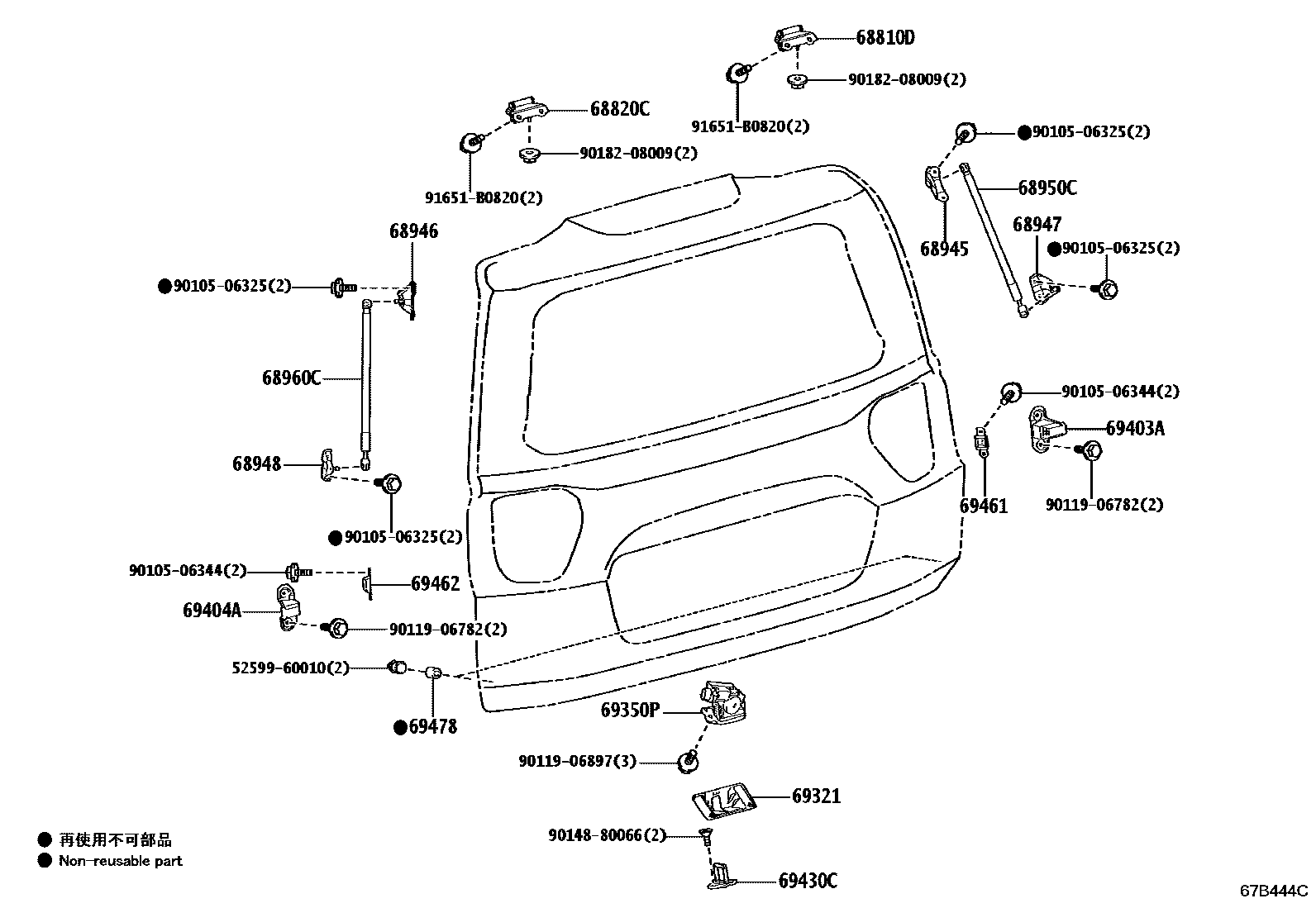

Toyota LAND CRUISER — BACK DOOR LOCK & HINGE

0001 1��(������������) 0002 1��(�����������)

68810DHINGE ASSY, BACK DOOR, RH

main68810-60060iFJA300,VJA300¥2,310202107-202411

main68810-60070iFJA300,VJA300¥2,310202107-202411

main68810-60080iFJA300,VJA300¥2,310202107-202411

68820CHINGE ASSY, BACK DOOR, LH

main68810-60060iFJA300,VJA300¥2,310202107-202411

main68810-60070iFJA300,VJA300¥2,310202107-202411

main68810-60080iFJA300,VJA300¥2,310202107-202411

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-60040iVJA300..AX,STD,VX¥670202107-202411

main68945-60050iFJA300,VJA300..GRS,ZX¥660202107-202411

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-60030iVJA300..AX,STD,VX¥670202107-202411

main68946-60040iFJA300,VJA300..GRS,ZX¥660202107-202411

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-60010iVJA300..AX,STD,VX¥660202107-202411

main68947-60020iFJA300,VJA300..GRS,ZX¥660202107-202411

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-60030iVJA300..AX,STD,VX¥660202107-202411

main68948-60040iFJA300,VJA300..GRS,ZX¥660202107-202411

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W730iVJA300..AX,STD,VX¥6,200202107-202411

68960CSTAY SET, BACK DOOR, LH

main68960-0W730iVJA300..AX,STD,VX¥6,200202107-202411

69321COVER, BACK DOOR LOCK

main69321-60040iFJA300,VJA300¥640202107-202411

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-42090iVJA300..AX,STD,VX¥8,800202107-202411

main69350-42101iFJA300,VJA300..GRS,ZX¥14,900202107-202411

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main67293-60080iFJA300,VJA300¥1,330202107-202411

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main67294-60020iFJA300,VJA300¥1,330202107-202411

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030iFJA300,VJA300¥1,120202107-202411

69461STOPPER, BACK DOOR SIDE MALE, RH

main67281-60050iFJA300,VJA300¥1,250202107-202411

69462STOPPER, BACK DOOR SIDE MALE, LH

main67282-60020iFJA300,VJA300¥1,250202107-202411

69478CUSHION, BACK DOOR LOWER STOPPER

main69478-60040iFJA300,VJA300¥190202107-202411

5259960010STOPPER, REAR BUMPER, UPPER

main52599-60010¥200

9010506325

main90105-06325¥80

9010506344

main90105-06344¥60

9011906782

main90119-06782¥60

9011906897

main90119-06897¥60

9014880066

main90148-80066¥60

9018208009

main90182-08009¥100

91651B0820

main91651-B0820¥160

24 parts on this diagram · 2 diagrams in section
