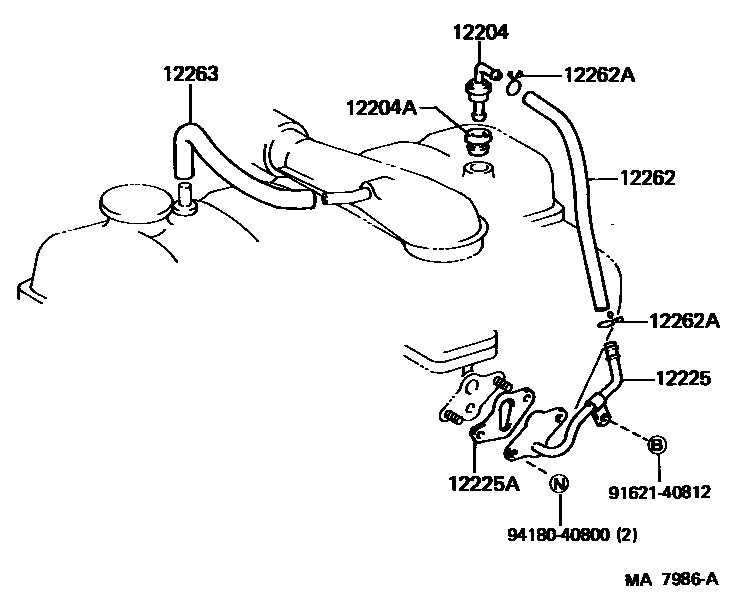

Toyota LAND CRUISER — VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

12204VALVE SUB-ASSY, VENTILATION

main12204-35010i22R..RJ7#¥4,270199008-199604

main12204-35030i22R..RJ7#¥2,120199001-199008

main12204-35040i3F..FJ7#¥2,030199001-200405

main12204-66010i1FZ#..FZJ7#¥2,030199201-199403

sub12204-35040¥2,030

main12204-66020i1FZFE..FZJ79..GEN..IV;1FZFE..FZJ71,78..LHD..GEN¥2,000199802-200808

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ73,75..(PIC,SOT)..GEN¥390199001-200808

main90480-18180i22R..RJ70¥240199001-199604

12225FLANGE, VENTILATION

main12225-61010i3F..FJ7#¥2,560199001-199208

12225AGASKET(FOR VENTILATION FLANGE)

main25628-61050i3F..FJ7#¥1,400199001-199208

12262HOSE, VENTILATION, NO.2

main12261-35020i22R..RJ7#¥1,050199001-199604

main12261-35020i22R..RJ7#..LHD..GEN¥1,050199001-199305

W(CYCLONE)

main12261-38011i22R..RJ7#..LHD..GEN¥980199305-199604

W(UPPER HOT AIR INTAKE)

main12261-38011i22R..RJ7#..LHD..GEN¥980199001-199305

main12261-61070i3F..FJ7#¥1,210199001-199208

main12262-17070i1HDFTE..HDJ7#¥1,670200108-200701

main12262-54031i2LT..LJ70,77¥660199001-199305

main12262-66010i1FZF..FZJ7#¥1,030199201-199403

main12262-66011i1FZF..FZJ70,73,75¥940199403-199911

main12262-66020i1FZFE..FZJ70,75¥1,540199208-199403

main12262-66021i1FZFE..FZJ70,73,75¥1,350199403-200405

main12262-66030i1FZFE..FZJ71,74,78,79¥840199908-200808

main12262-67010i1KZT..KZJ7#¥940199305-199604

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-15006i22R..RJ7#¥110199001-199604

main90467-15120i3F..FJ7#¥100199001-199208

main90467-18003i2LT..LJ70,77¥120199001-199305

main90467-20002i1FZ#..FZJ70,73,75¥160199403-200808

main90467-21152i1FZ#..FZJ7#¥350199201-199403

main90467-22010i1HDFTE..HDJ7#¥130200108-200701

12263HOSE, VENTILATION, NO.3

main12262-35040i22R..RJ7#¥820199001-199604

main12262-61010i3F..FJ7#¥1,090199001-199208

9162140812

main91621-40812¥100

9418040800

main94180-40800¥150

9 parts on this diagram · 10 diagrams in section
