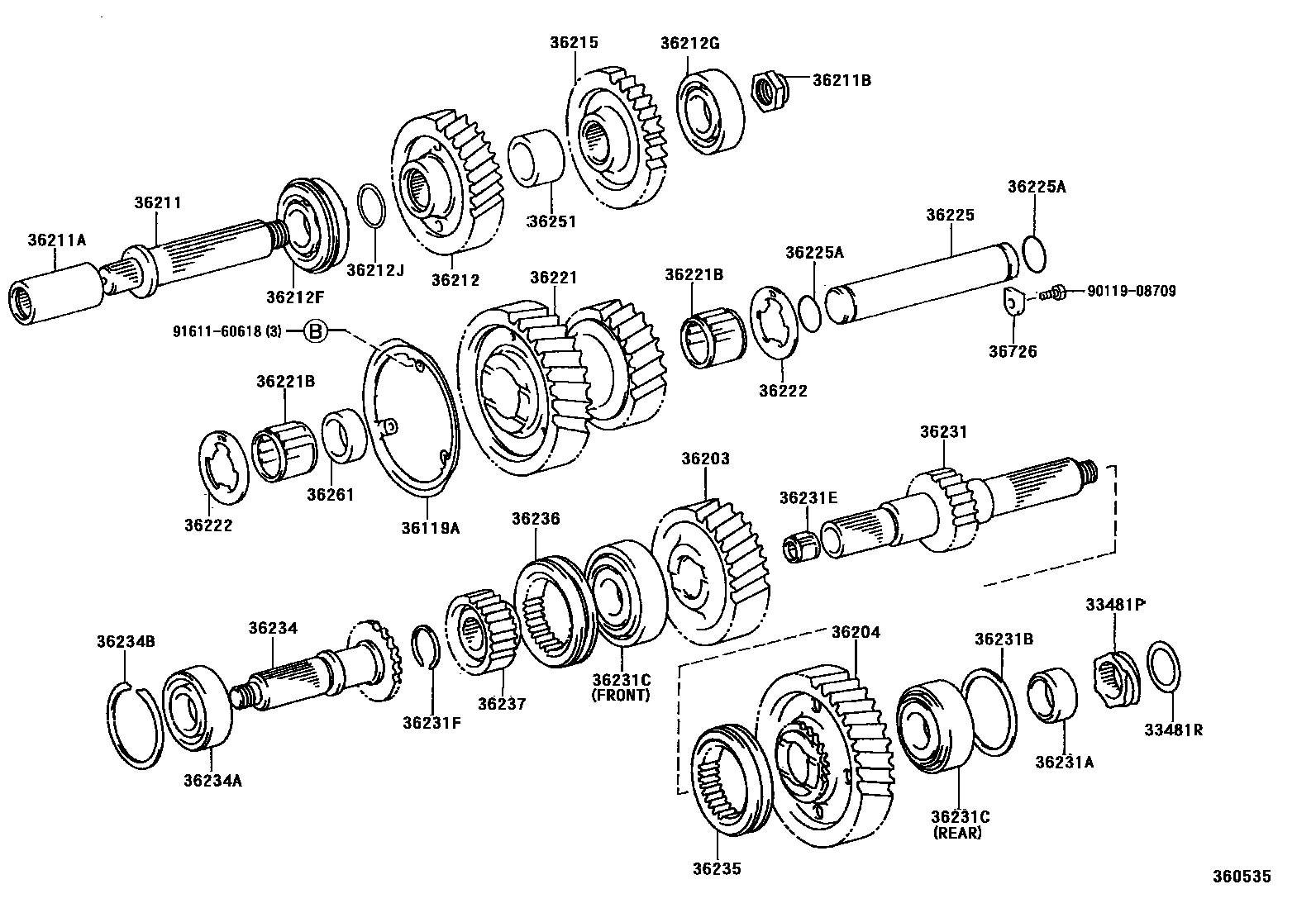

Toyota LAND CRUISER — TRANSFER GEAR

0001 1 0003 1 0004 1 0005 1 0007 1 0008 1

33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)

main33481-60051iLJ70,77¥2,160199001-199604

N=6,MARK 6:18-20,W(265/75R15 TIRE)

main33481-60051iFJ73,LJ72,79,RJ7#¥2,160199001-199604

N=6,MARK 6:18-20

main33481-60051iFJ70..5F..STD..GEN¥2,160199001-199208

N=6,MARK 6:18-20,*AXC=K082,K084,K085

main33481-60051iPZJ70,73..GEN¥2,160199001-199401

N=6,MARK 6:18-20,*AXC=K252,K254,K255

main33481-60061iHZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,PZJ7#¥1,240199001-200701

N=6,MARK 6:15-17

main33481-60071iFJ75..LHD..PIC..GEN¥1,960199001-199201

N=7,MARK 7:16-17,*AXC=K305

main33481-60081iLJ77,79;LJ70..ARL¥1,960199001-199305

N=5,MARK 5:17-19,*AXC=G142,G144,G145 & W(205R16C6 TIRE)

main33481-60081iLJ70,72..GEN¥1,960199001-199604

N=5,MARK 5:17-19

main33481-60081iLJ70,72..GEN¥1,960199001-199604

N=5,MARK 5:17-19,W(205R16C6 TIRE)

main33481-60081iLJ70,72..GEN¥1,960199001-199305

N=5,MARK 5:17-19,*AXC=G142,G144,G145

main33481-60090iFZJ70..HT..GEN;FZJ73..GEN..CBR¥2,190199201-200403

N=11,MARK 11:31-33

main33481-60100iFZJ70,75..GEN..CBU..EFI¥1,650199201-200403

N=12,MARK 12:31-33

33481RWASHER, PLATE (FOR SPEEDOMETER DRIVE GEAR)

main90201-35002iHZJ7#..HT..GEN;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU¥590199001-199910

main90201-35006iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV¥80199910-200701

36119ARECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR)

main36119-60020iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV¥540199001-200701

main36119-60040iFZJ75..SA¥630199801-200403

36203GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT

main36203-60050iHZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#..MTM¥23,200199001-200701

sub36203-60051¥14,700

main36203-60070iFZJ7#¥25,600199201-199210

sub36203-60071¥25,900

sub36247-60011¥1,760

main36203-60071iFZJ75..ARL¥25,900199210-200701

main36203-60090iFZJ73,75..(PIC,SOT)..GEN..EFI¥26,200199801-200808

main36241-60080iFJ70,73,HZJ73..4FC¥14,900199001-199201

36204GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT

main36204-60070iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV¥30,300199001-200701

sub36204-60071¥21,700

sub36119-60011¥230

main36204-60080iHZJ75..SA¥30,300199001-200007

sub36204-60110¥32,000

sub36119-60011¥230

main36204-60090iFZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU¥30,300199201-200701

main36242-60130iFJ70,73,HZJ73..4FC¥16,900199001-199201

36211SHAFT, TRANSFER INPUT

main36211-60011iRJ70..SOT¥20,800199001-199604

main36211-60021iHZJ78..LX;HZJ79..ARL..CBU¥20,900199001-200308

main36211-60030iFZJ7#..CBR¥7,900199201-199801

main36211-60040iFZJ70..EFI¥7,800199212-200701

main36211-60090iHZJ7#¥6,800200308-200701

36211AYOKE, TRANSMISSION SLEEVE

main33399-60010iRJ70..SOT¥3,030199001-199604

main33399-60020iPZJ70,73;PZJ75..4F¥3,030199001-199604

main33399-60040iHZJ79;HZJ71,78..ARL,GEN¥2,830199908-200308

36211BNUT (FOR TRANSFER INPUT SHAFT)

main90179-26002iHZJ70,75..GEN¥620199001-200007

main90179-26004iHZJ78..LX;HZJ79..ARL..CBU¥230199908-200701

36212GEAR, TRANSFER INPUT

main36212-60081iHZJ78..LX;HZJ79..ARL..CBU¥14,100199001-200701

main36212-60090iFJ70,73,HZJ73..4FC¥20,500199001-199201

main36212-60100iHDJ7#¥20,700199201-200701

main36212-60110iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥20,600199104-200007

main36212-60120iFZJ73,75..(PIC,SOT)..GEN..EFI¥8,400199801-200808

36212FBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT)

main90363-35020iPZJ75..5F¥2,230199001-200701

main90363-50003iFZJ78..GCC;FZJ71,78..RHD..GEN;FZJ74,79,HDJ78..CBU;FZJ71,HDJ79..ARL,GCC¥2,530199201-200808

36212GBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT REAR)

main90363-35013iHZJ7#..HT..GEN;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU¥1,120199001-200701

36212JRING, O (FOR TRANSFER INPUT GEAR)

main90301-34005iHZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#¥110199001-200701

36215GEAR, POWER TAKE-OFF DRIVE

main36215-60030iHZJ7#..HT..GEN;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU¥9,000199001-200701

main36215-60040iFZJ75..ARL¥6,100199212-200701

36221GEAR, TRANSFER IDLER

main36205-60010iFZJ73,75..(PIC,SOT)..GEN..EFI¥33,100199801-200808

main36221-60080iHZJ7#..HT..GEN;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU¥47,700199001-200007

main36221-60090iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV¥33,100199001-200701

main36221-60110iFZJ70,75,78,79..ARL;FZJ70,73,75,HDJ7#..CBR,TDEFI¥50,300199201-200701

36221BBEARING (FOR TRANSFER IDLER GEAR)

main90364-38012iHZJ78..LX;HZJ79..ARL..CBU¥1,530199001-200701

36222WASHER, TRANSFER IDLER GEAR SIDE THRUST

main36222-60020iHZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU¥1,220199001-200701

sub36222-60021¥760

36225SHAFT, TRANSFER IDLER GEAR

main36225-60050iPZJ75..5F;HZJ70..ARL¥4,100199001-200701

36225ARING, O (FOR TRANSFER IDLER SHAFT)

main90301-34004iHZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU¥170199001-200701

36231SHAFT, TRANSFER OUTPUT, REAR

main36231-60021iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV¥12,400199001-200701

main36231-60050iFJ70,73,HZJ73..4FC¥18,000199001-199201

36231ASPACER (FOR TRANSFER OUTPUT SHAFT)

main90560-35008iHZJ7#..HT..GEN;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU¥440199001-200701

T=17.5

36231BSHIM (FOR TRANSFER OUTPUT SHAFT)

main90564-70001iHZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#¥230199001-200701

T=0.15

main90564-70002iHZJ78..LX;HZJ79..ARL..CBU¥370199001-200701

T=0.40

main90564-70003iHZJ7#..HT..GEN;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU¥370199001-200701

T=0.50

main90564-70004iHZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#¥370199001-200701

T=0.60

main90564-70005iHZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU¥370199001-200701

T=0.70

main90564-70006iPZJ75..5F;HZJ70..ARL¥370199001-200701

T=0.80

main90564-70007iKZJ7#,LJ7#,RJ7#..HT¥370199001-200701

T=0.90

main90564-70008iKZJ7#,LJ7#,RJ7#..HT¥380199001-200701

T=1.00

main90564-70009iHZJ78..LX;HZJ79..ARL..CBU¥380199001-200701

T=1.10

main90564-70010iKZJ7#,LJ7#,RJ7#..HT¥380199001-200701

T=1.20

main90564-70011iHZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#¥370199001-200701

T=1.30

main90564-70012iKZJ7#,LJ7#,RJ7#..HT¥370199001-200701

T=1.40

main90564-70013iHZJ78..LX;HZJ79..ARL..CBU¥370199001-200701

T=1.50

36231CBEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)

main90366-35011iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV¥3,320199001-200701

FRONT

main90366-35053iHZJ75..SA¥2,600199001-200701

REAR

main90366-35054iFJ70,73,HZJ73..4FC¥2,550199001-199201

REAR

main90366-35058iFZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79¥2,250199201-200808

FRONT

main90366-38007iFZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79¥2,250199201-200808

REAR

36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)

main90364-17010iFZJ70,75..GEN..CBU..EFI¥700199001-200403

main90364-17010iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV¥700199908-200701

NO.1

main90364-42001iFZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79¥1,500199201-200701

NO.2

main90364-43005iFZJ70..SOT;FZJ75..GCC;FZJ70,73..ARL,GCC;FZJ75..RHD..IV..CBR¥1,500199201-200701

NO.3

36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)

main90520-32005iFZJ78,79..ARL¥110199201-200808

T=2.0,MARK A

main90520-32006iFZJ75..SA¥120199201-200808

T=2.1,MARK B

main90520-32007iFZJ78..GCC;FZJ71,78..RHD..GEN;FZJ74,79,HDJ78..CBU;FZJ71,HDJ79..ARL,GCC¥120199201-200808

T=2.2,MARK C

main90520-32008iFZJ73,75..(PIC,SOT)..GEN..EFI¥120199201-200808

T=2.3,MARK D

main90520-32009iFZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU¥130199201-200808

T=2.4,MARK E

main90520-33107iPZJ75..5F;HZJ70..ARL¥120199001-200701

T=2.30-2.35,MARK 11

main90520-33110iPZJ70,73;PZJ75..4F;RJ70..SOT¥190199001-200701

T=2.6-2.65,MARK 17

36234SHAFT, TRANSFER OUTPUT, FRONT

main36234-60031iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..GEN¥10,300199001-200701

W(*ELC)

main36234-60040iHZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#..MTM¥4,390199001-200701

main36234-60040iPZJ70,73¥4,390199201-199305

W(MECHANICAL WINCH)

36234ABEARING (FOR TRANSFER OUTPUT FRONT SHAFT)

main90363-35013iHZJ78..LX;HZJ79..ARL..CBU¥1,120199001-200701

36234BRING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)

main90521-75023iHZJ78..LX;HZJ79..ARL..CBU¥130199001-200701

T=1.6

main90521-84002iFZJ70..SOT;FZJ70..EFI;FZJ75..RHD..IV..CBR¥170199201-200808

T=1.7,MARK A

main90521-84003iFZJ73,75..(PIC,SOT)..GEN..EFI¥180199201-200808

T=1.8,MARK B

36235SLEEVE, TRANSFER HIGH & LOW CLUTCH

main36235-60020iHZJ75..SA¥5,800199001-200701

main36235-60030iFJ70,73,HZJ73..4FC¥8,700199001-199201

main36235-60040iFZJ75..SA¥2,470199201-200808

36236SLEEVE, FRONT DRIVE CLUTCH

main36236-60030iHZJ75..ARL,GCC,GEN;FJ7#,HZJ70,73,LJ7#,PZJ7#,RJ7#¥6,100199001-200701

W(*ELC)

main36236-60050iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV¥1,440199001-200701

main36236-60050iRJ70;FJ70..5F..STD..GEN;FJ75..LHD..PIC..GEN;PZJ70,73,RJ77..GCC,GEN¥1,440199001-199604

W(ALUMINUM WHEEL)

main36236-60060iFZJ70,75..GEN..CBU..EFI¥1,440199201-200808

36237HUB, TRANSFER CLUTCH

main36237-60020iHZJ75..SA¥7,300199001-200701

main36237-60030iFZJ70..SOT;FZJ70..EFI;FZJ75..RHD..IV..CBR¥6,800199201-199806

sub36237-60050¥2,560

main36237-60050iFZJ75..SA¥2,560199801-200808

36251SPACER, TRANSFER INPUT SHAFT

main36251-60030iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV¥750199001-200701

main36251-60050iHZJ73..4FC¥1,220199001-199108

36261SPACER, TRANSFER IDLER GEAR

main90560-38003iHZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#¥260199001-200701

36726PLATE, LOCK (FOR TRANSFER GEAR)

main36726-60020iHZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#¥170199001-200701

9011908709

main90119-08709¥90

9161160618

main91611-60618¥120

35 parts on this diagram · 6 diagrams in section
