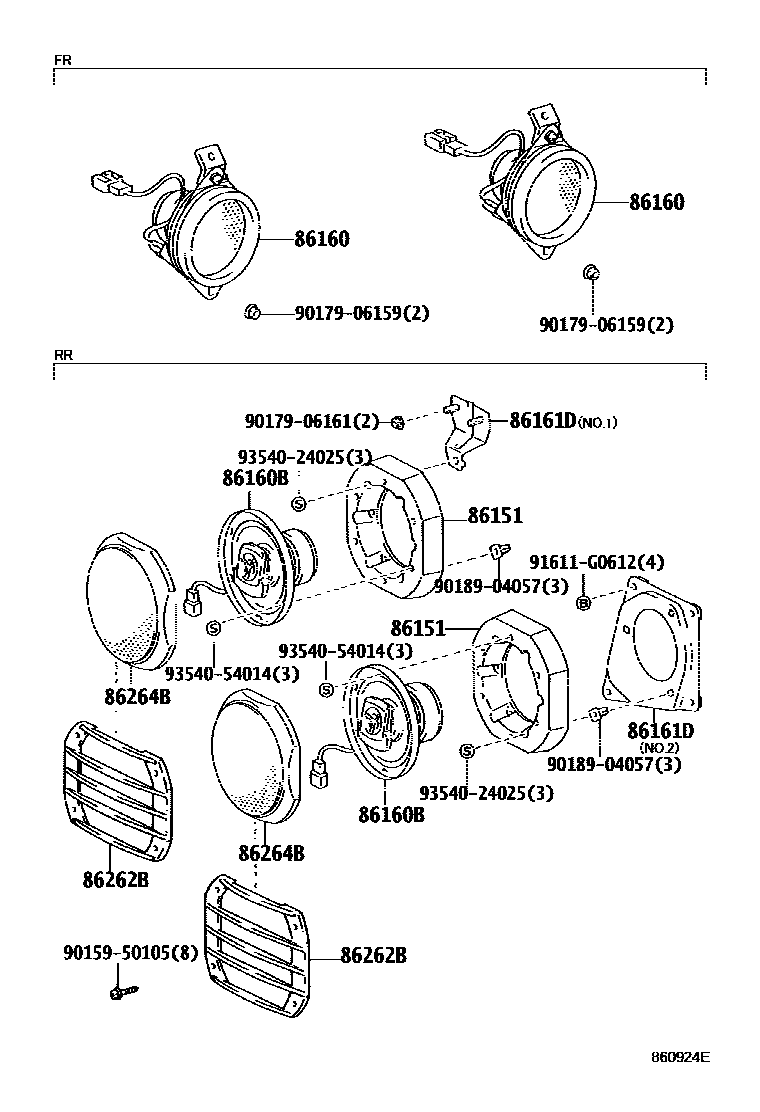

Toyota LAND CRUISER — SPEAKER

86151BOX, SPEAKER

main86151-90K01iFZJ75,HDJ78,HZJ75,78..LX..ARL¥1,720199208-200808

86160SPEAKER ASSY, FRONT NO.1

main86160-60250iFZJ79..GEN..IV;FZJ71,78..LHD..GEN¥12,600199807-200808

20W

main86160-90K00iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..GEN¥4,400199001-200701

6.3W

main86160-90K01iKZJ7#,LJ7#,RJ7#¥7,400199001-200701

10W

86160BSPEAKER ASSY, REAR

main86160-90K02iFZJ75,HDJ78,HZJ75,78..LX..ARL¥15,200199208-200808

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-90K00iFZJ75,HZJ75..LX..ARL¥1,260199208-200808

NO.1

main86161-90K01iFZJ75,HZJ75..LX..ARL¥1,570199208-200808

NO.2

86262BCOVER, SPEAKER, REAR

main86269-90K01iHZJ78..LX¥2,490199208-200808

86264BGRILLE, SPEAKER, REAR

main86269-90K00iHDJ78..LX¥3,110199208-200808

9015950105

main90159-50105¥90

9017906159

main90179-06159¥70

9017906161

main90179-06161¥70

9018904057

main90189-04057¥170

91611G0612

main91611-G0612¥70

9354024025

main93540-24025¥70

9354054014

main93540-54014¥100

13 parts on this diagram · 1 diagram in section
