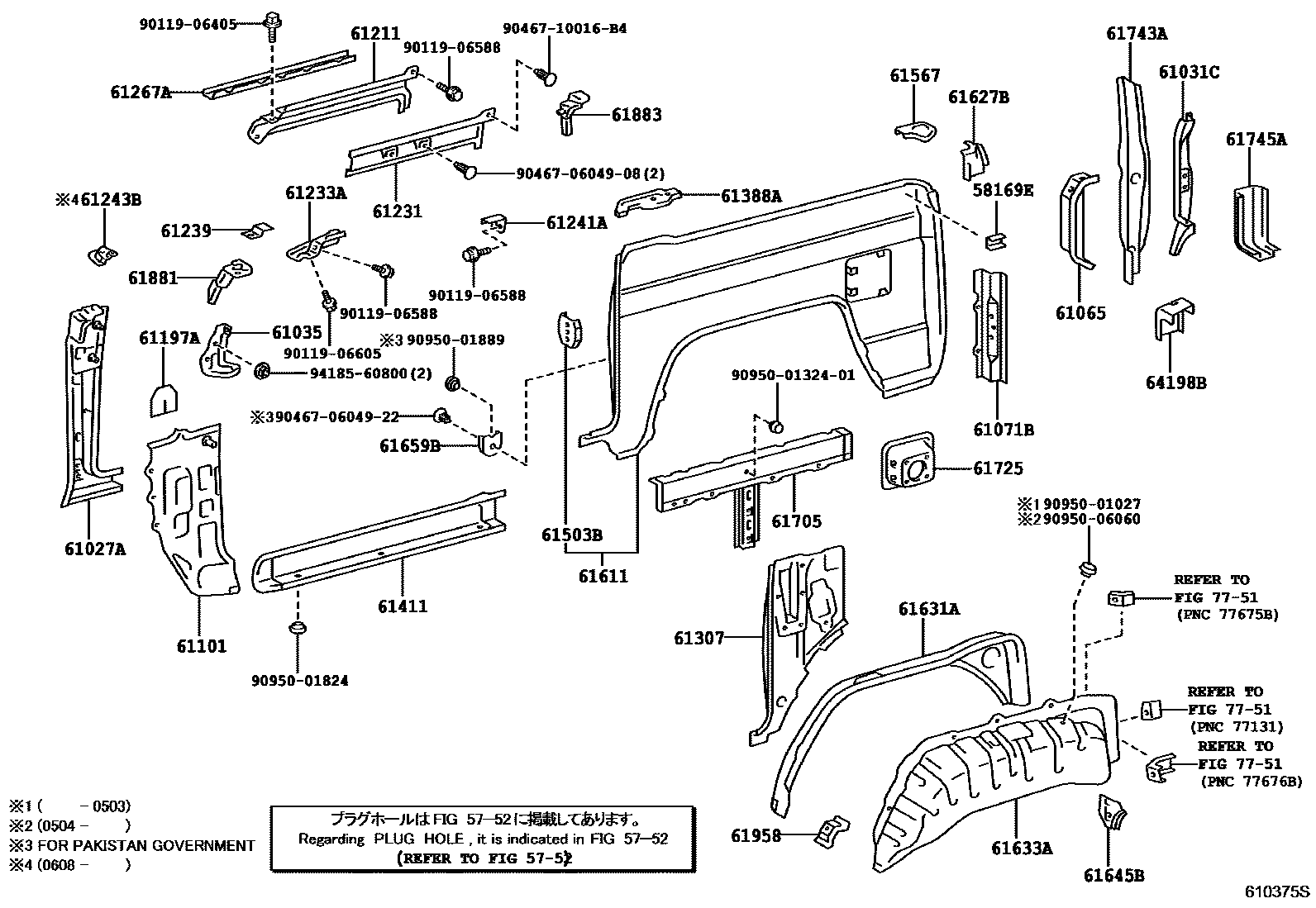

Toyota LAND CRUISER — SIDE MEMBER

0001 1RH 0002 1LH 0003 1RH 0004 1LH 0005 1RH 0006 1LH 0007 1RH 0008 1LH 0009 1RH 0010 1LH 0011 1RH 0012 1LH 0013 1RH 0014 1LH 0015 1RH 0016 1LH 0017 1RH 0018 1LH 0019 1RH 0020 1LH 0021 1 0022 1

5752

58169ERETAINER, REAR HEATER MOUNTING

main58169-90A00iFJ70,FZJ70,HZJ71,LJ72,PZJ70,RJ70..SOT¥790199001-200701

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-60010iFJ70,FZJ70,HZJ70,LJ7#,PZJ70,RJ7#..HT¥41,300199001-199208

sub61027-60011¥41,300

main61027-60011iFZJ70,HZJ70..HT..(GCC,GEN)¥41,300199305-199908

W(*PW & *EL)

main61027-60011iFZJ79..GEN..IV;FZJ71..LHD..GEN¥41,300199208-200808

main61027-60011iRJ77..LHD..LX..GEN¥41,300199004-199208

W(*EL)

main61027-60011iFJ70,LJ7#,PZJ70,RJ70..LHD..LX¥41,300199001-199201

W(*EL) OR W(*MR)

main61027-60011iRJ77..GCC¥41,300199004-199201

W(*PW) OR W(*EL) OR W(*MR)

main61027-60030iFJ73,FZJ73,HZJ73,PZJ73¥41,300199001-199208

sub61027-60031¥41,200

main61027-60031iFZJ73..CBR¥41,200199208-200608

sub61027-60032¥41,300

sub61161-90K01¥3,180

sub61173-90K00¥370

sub61243-90K00¥650

main61027-60031iFZJ73..LX¥41,200199201-199208

W(*EL)

sub61027-60032¥41,300

sub61161-90K01¥3,180

sub61173-90K00¥370

sub61243-90K00¥650

main61027-60070iFJ70,FZJ70,HZJ70,PZJ70..HT¥41,300199001-199208

W(*STAC)

sub61027-60071¥41,300

main61027-60071iFZJ79..ARL¥41,300199908-200808

W(SCHNORKEL AIR CLEANER)

sub61027-60072¥41,300

sub53963-90K01¥640

main61027-60071iFJ70,FZJ70,PZJ70..LX¥41,300199201-199208

W(*STAC & *EL) OR W(*STAC & *RCM)

sub61027-60072¥41,300

sub53963-90K01¥640

main61027-60071iFZJ70,HZJ70,PZJ70..HT¥41,300199208-199908

W(*STAC)

sub61027-60072¥41,300

sub53963-90K01¥640

main61027-60130iFJ75,FZJ75,HZJ75,PZJ75..HT¥41,300199102-199208

sub61027-60131¥41,300

main61027-60131iFZJ75,HZJ75..HT..STD¥41,300199208-200009

main61027-60131iFZJ75..LHD..HT..GEN¥41,300199501-199908

VENEZUELA SPEC

main61027-60140iFJ75,FZJ75,HZJ75,PZJ75..HT¥41,300199102-199208

W(*STAC)

main61027-60141iPZJ75..HT¥41,300199208-199501

W(*STAC)

main61027-60141iFZJ75..LHD..HT..GEN¥41,300199501-199908

VENEZUELA SPEC & W(*STAC)

main61027-60151iFZJ75,HZJ75..LX..ARL¥41,300199208-199501

main61027-60152iFZJ75,HZJ75..LX..ARL¥41,300199501-199908

main61027-60161iFZJ75,HZJ75..LX..ARL¥41,300199208-199501

W(*STAC)

main61027-60162iFZJ75,HZJ75..LX..ARL¥41,300199501-199908

W(*STAC)

main61027-60170iFZJ75,HZJ75..SA¥41,200199208-200405

sub61027-60510¥22,800

sub61161-90K01¥3,180

sub61173-90K00¥370

sub61243-90K00¥650

main61027-60170iFZJ75,HZJ75..LX¥41,200199201-199208

W(*EL)

sub61027-60510¥22,800

sub61161-90K01¥3,180

sub61173-90K00¥370

sub61243-90K00¥650

main61027-60190iFZJ75,HZJ75..HT..STD¥41,300199501-199908

main61027-60200iFZJ75,HZJ75..HT..STD¥41,300199501-199908

W(*STAC)

main61027-60340iFZJ78..GCC;FZJ78..RHD..GEN;HDJ78,HZJ78..STD¥25,900199908-200808

main61027-60350iFZJ78..GCC;FZJ78..RHD..GEN;HDJ78,HZJ78..STD¥26,000199908-200808

W(SCHNORKEL AIR CLEANER)

sub61027-60351

sub53963-90K01¥640

main61027-60360iHDJ78..LX¥26,000199908-200701

main61027-60370iHZJ78..LX¥26,000199908-200701

W(SCHNORKEL AIR CLEANER)

sub61027-60371

sub53963-90K01¥640

main61027-90K00iFJ75,HZJ75,PZJ75..HT¥41,400199001-199102

sub61027-60130¥41,300

main61027-90K02iFJ70,75,FZJ70,75,HJ75,HZJ75,LJ72,PZJ70,75,RJ70..PIC,SOT¥41,300199001-199208

sub61027-60170¥41,200

main61027-90K04iFJ75,HZJ75,PZJ75..HT¥41,400199001-199102

W(*STAC)

sub61027-60140¥41,300

61031CEXTENSION SUB-ASSY, QUARTER PANEL, REAR RH

main61031-60100iFZJ75..GEN..CBU..EFI¥15,200199903-200701

sub61031-60101¥9,400

main61031-90K01iPZJ70..HT¥23,900199001-200701

sub61031-60150¥14,900

main61031-90K03iFZJ74,HZJ71..SOT¥23,900199001-200701

main61031-90K03iPZJ70..SOT¥23,900199001-200007

BANGLADESH SPEC

main61031-90K04iPZJ75..HT¥23,700199001-199903

sub61031-60100¥15,200

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-90K01iPZJ70,73;PZJ75..4F;RJ70..SOT¥1,780199001-200808

61065HOUSING SUB-ASSY, QUARTER PANEL END, RH

main61065-90K00iHZJ78..GEN;FZJ78..GCC;FZJ78..RHD..GEN¥4,670199001-200808

61071BPANEL SUB-ASSY, ROOF SIDE, INNER REAR RH

main61071-60030iFZJ74,HZJ71..SOT¥5,200200611-200701

main61071-90K02iFZJ73..EFI¥6,500199305-200701

main61071-90K02iFZJ74..STD..GCC¥6,500200207-200308

SAUDI ARABIA SPEC & W/O(REAR SEAT)

main61071-90K02iFZJ74..STD..GEN¥6,500200109-200408

COLOMBIA CKD PACKAGE

main61071-90K02iFJ73..STD..GEN¥6,500199105-199908

COLUMBIA SPEC

main61071-90K02iFJ73,FZJ73,74,HZJ73,PZJ73..LX¥6,500199001-199501

W(FRONT SEPARATE & *FFRS)

main61071-90K03iHZJ70..SOT¥8,500199001-200610

sub61071-60030¥5,200

main61071-90K04iHZJ70..SOT199706-200611

FOR PAKISTAN GOVERNMENT

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-60060iFZJ70..SOT¥13,900199001-199604

W(*DL)

sub61101-90K14¥13,600

main61101-60060iFZJ7#,HZJ75..GCC¥13,900199308-199401

W(HEATER)

sub61101-90K14¥13,600

main61101-90K14iFZJ75..LHD..HT..GEN¥13,600199308-199501

(COLD AREA SPEC & W(HEATER)) OR W(HEATER)

main61101-90K14iFZJ75..LHD..HT..GEN¥13,600199308-199501

(COLD AREA SPEC & W(HEATER) OR W(HEATER)

main61101-90K14iFZJ75..LHD..IV;FZJ73..STD..GEN¥13,600199305-199604

W(HEATER)

main61101-90K14iFZJ73..LX..GEN;FZJ70,75..LHD..GEN..CBU¥13,600199305-199308

(COLUMBIA SPEC & W(HEATER)) OR W(HEATER)

main61101-90K14iRJ70..SOT;PZJ70,75..LHD¥13,600199001-200808

main61101-90K14iFJ75..LHD..IV;FJ73..STD..GEN¥13,600199105-199201

COLUMBIA SPEC & W(REAR HEATER)

main61101-90K16iFZJ75..IV..EFI;FZJ75..RHD..STD..(ARL,GEN)..CBU;FZJ70,HZJ75..RHD..STD..(ARL,GEN)..(CBR,DSL)¥19,500199208-199604

W(*STAC & RADIO)

main61101-90K16iFZJ70,HZJ70..ARL;FZJ75,PZJ75..RHD..GEN..IV¥19,500199305-200701

main61101-90K16iFZJ75,HZJ75..LX..ARL¥19,500199001-199604

W(*STAC)

main61101-90K16iFZJ75..IV..EFI;HZJ75..RHD..STD;FZJ75,RJ77..RHD..STD..CBU;FZJ70,HZJ70,LJ7#..RHD..GEN¥19,500199004-199604

EAST MALAYSIA SPEC

main61101-90K17iFZJ75..IV..EFI;HZJ75..RHD..STD..(ARL,GEN);FZJ75..RHD..STD..(ARL,GEN)..CBU;FZJ70,HZJ70,LJ7#,RJ77..RHD..STD..GEN¥14,000199001-199604

W(RADIO)

sub61101-90K16¥19,500

main61101-90K17iFZJ75,HZJ75,KZJ77,RJ77..RHD..LX¥14,000199305-199604

sub61101-90K16¥19,500

61197ACOVER, FRONT PILLAR, RH

main61197-90K00iFJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN¥740199001-199608

W(*AIC)

main61197-90K00iFZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#¥740199208-200808

61211RAIL, ROOF SIDE, OUTER RH

main61211-60010iLJ77,79,RJ77¥4,470199004-199604

main61211-90K00iFZJ79..GEN..IV;FZJ71..LHD..GEN¥3,250199001-200808

sub61211-60100¥2,290

main61211-90K01iHZJ70..SOT¥4,020199001-200701

main61211-90K02iFJ73,FZJ73,74,HZJ73,PZJ73..LX¥6,600199001-200701

main61211-90K03iFZJ75,HZJ75..HT¥2,900199001-200808

main61211-90K04iFZJ75..GEN..IV..EFI¥6,600199001-200405

61231RAIL, ROOF SIDE, INNER RH

main61203-60010iFZJ75,HZJ75..HT¥1,950199102-199908

main61203-90K01iFJ75,HZJ75,PZJ75..HT¥3,120199001-199102

sub61203-60010¥1,950

main61231-60020iKZJ77,LJ79,RJ77¥5,600199004-199604

sub61231-60021¥3,800

main61231-60030iFZJ78..LHD..GEN¥2,860199908-200808

main61231-60030iFZJ75..LHD..HT..GEN¥2,860199001-199908

VENEZUELA SPEC

main61231-90K00iFZJ79..GEN..IV;FZJ71..LHD..GEN¥2,600199001-200808

sub61231-60180¥1,640

main61231-90K02iFZJ75,HZJ75..SA¥2,400199001-200701

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-90K00iFZJ74;HZJ75..LHD..PIC..CBU;FJ73,FZJ73,HZJ73,PZJ73..CBR,DSL;FZJ75,HZJ75..RHD..PIC..(DSL,EFI);FJ70,75,FZJ70,75,HJ75,HZJ71,LJ72,PZJ70,75,RJ70..(PIC,SOT)..(CBR,DSL)¥1,670199001-200701

61239RETAINER, ROOF SIDE RAIL OUTER, RH

main61239-90K00iFZJ74;HZJ75..LHD..PIC..CBU;FJ73,FZJ73,HZJ73,PZJ73..CBR,DSL;FZJ75,HZJ75..RHD..PIC..(DSL,EFI);FJ70,75,FZJ70,75,HJ75,HZJ71,LJ72,PZJ70,75,RJ70..(PIC,SOT)..(CBR,DSL)¥390199001-200701

61241AGUSSET, ROOF SIDE RAIL, REAR RH

main61241-90K00iFZJ74;HZJ75..LHD..PIC..CBU;FJ73,FZJ73,HZJ73,PZJ73..CBR,DSL;FZJ75,HZJ75..RHD..PIC..(DSL,EFI);FJ70,75,FZJ70,75,HJ75,HZJ71,LJ72,PZJ70,75,RJ70..(PIC,SOT)..(CBR,DSL)¥2,680199001-200701

61243BPLATE, FRONT BODY PILLAR END, RH

main61243-90K00iHZJ71..SOT¥650200608-200701

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-60020iLJ77,79,RJ77¥2,340199004-199604

main61267-90K00iKZJ70,LJ72,RJ70..HT¥3,080199001-200808

main61267-90K01iFZJ70..SOT¥2,040199001-200701

main61267-90K02iPZJ75..HT¥3,780199001-200808

main61267-90K03iFZJ75..CBU..EFI¥12,100199909-200009

main61267-90K03iFJ75,FZJ75..LHD..HT..GEN¥12,100199001-199908

VENEZUELA SPEC

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-60070iLJ77,79,RJ77¥12,500199004-199208

sub61307-60130¥19,000

main61307-60110iFZJ70..SOT¥17,500199107-200701

main61307-60110iFJ70..SOT¥17,500199107-199201

W(PARALLEL SEAT & *SBE)

main61307-60120iFJ73,FZJ73,PZJ73..STD¥27,800199107-199208

sub61307-60121¥27,900

main61307-60120iFZJ73,PZJ73..STD..GEN¥27,800199208-199305

W(FRONT SEAT BELT(ELR))

sub61307-60121¥27,900

main61307-60121iFZJ73..STD..CBR¥27,900199208-200701

main61307-60130iLJ77,79,RJ77¥19,000199208-199604

sub61307-60131¥13,100

main61307-60140iFZJ73..STD..GEN¥27,700199305-199611

COLOMBIA SPEC

main61307-60140iFZJ73..LX..GEN¥27,700199305-199805

main61307-60150iFZJ73..EFI¥27,900199305-200701

main61307-60150iFZJ74..STD..GEN¥27,900200109-200408

COLOMBIA CKD PACKAGE

main61307-60150iFZJ74..STD..GCC¥27,900200207-200308

SAUDI ARABIA SPEC & W/O(REAR SEAT)

main61307-60150iFZJ73..STD..GEN¥27,900199305-199611

COLOMBIA SPEC & W(FRONT SEAT BELT(ELR))

main61307-60150iFZJ73..LX..GCC¥27,900199305-199908

W(FRONT SEAT BELT = *ELR)

main61307-60150iFZJ73..STD..GEN..CBR¥27,900199611-199908

COLOMBIA CKD PACKAGE & W(FRONT SEAT BELT = *ELR)

main61307-90K00iFZJ70,HZJ70..HT..(GCC,GEN)¥4,210199001-200808

main61307-90K09iFJ70,LJ72,PZJ70,RJ70..SOT¥15,400199001-199107

main61307-90K09iFZJ70..SOT¥15,400199107-199501

W(PARALLEL SEAT)

main61307-90K10iFZJ73..STD..GEN¥18,300199107-199305

COLOMBIA SPEC

main61307-90K10iFJ73,HZJ73,PZJ73¥18,300199001-199305

61388APLATE, CENTER BODY PILLAR END, RH

main61388-90K00iFZJ74,HZJ71..SOT¥1,400199001-200701

61411PANEL, ROCKER, OUTER RH

main61401-60010iLJ77,79,RJ77¥12,400199004-199604

main61401-90K00iFZJ70..SOT;FZJ70,HZJ70..ARL¥11,600199001-200808

main61401-90K01iFZJ75..CBR;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75,HZJ75..RHD..(DSL,EFI);FJ75,FZJ78,HDJ78,HJ75,PZJ75¥11,600199001-200808

main61401-90K02iFZJ74,79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV¥11,600199001-200808

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-20030iFJ7#,HZJ7#,LJ70,72,PZJ7#,RJ70..HT,SOT¥680199001-199012

main61503-60040iRJ70..SOT;PZJ7#..HT,SOT¥1,080199011-200808

61567PLATE, QUARTER PANEL END, RH

main61567-90K01iFZJ73..LX¥1,600199001-200701

main61567-90K02iFZJ73..EFI¥990199001-200701

61611PANEL, QUARTER, RH

main60161-60150iLJ79,RJ77..STD¥98,300199004-199303

sub60161-60151¥98,600

main60161-60150iLJ79..LHD..LX¥98,300199108-199303

*EX-USSR SPEC

sub60161-60151¥98,600

main60161-60151iLJ79,RJ77..STD¥98,600199303-199604

*EX-USSR SPEC

sub60161-60152¥98,300

main60161-60160iLJ79,RJ77..STD¥86,700199004-199303

W(OVER FENDER)

sub60161-60161¥98,600

main60161-60160iLJ79..LHD..LX¥86,700199108-199303

*EX-USSR SPEC & W(OVER FENDER)

sub60161-60161¥98,600

main60161-60161iLJ79,RJ77..STD¥98,600199303-199604

*EX-USSR SPEC & W(OVER FENDER)

sub60161-60162¥98,300

main60161-60161iLJ79..LHD..LX¥98,600199303-199604

W(OVER FENDER)

sub60161-60162¥98,300

main60161-60220iLJ77,79,RJ77..LX¥99,000199004-199303

sub60161-60221¥99,000

main60161-60221iLJ77,79,RJ77..LX¥99,000199303-199604

sub60161-60223¥99,000

main60161-60230iLJ77,79,RJ77..LX¥99,000199004-199303

W(OVER FENDER)

sub60161-60231¥99,000

main60161-60231iLJ77,79,RJ77..LX¥99,000199303-199604

W(OVER FENDER)

sub60161-60233¥99,000

main60161-60330iPZJ70..HT¥87,100199011-200808

sub60161-60331¥54,900

main60161-60330iFZJ70..HT..GEN¥87,100199308-199908

COLD AREA SPEC

sub60161-60331¥54,900

main60161-60350iFZJ70..HT..CBR;FZJ70,HZJ70..ARL;FJ70,FZJ71,HZJ71,LJ70,72,PZJ70,RJ70..HT¥87,100199011-200808

W(OVER FENDER)

sub60161-60351¥54,900

main60161-60360iPZJ70,RJ70..SOT¥50,100199011-200007

sub60161-60730¥31,500

sub90950-01889¥130

sub90950-01890¥170

main60161-60370iFZJ70..SOT¥50,100199011-200007

W(OVER FENDER)

sub60161-60740¥31,500

sub90950-01889¥130

sub90950-01890¥170

main60161-60380iFZJ73..LX¥57,900199012-200701

main60161-60380iFZJ73..LX..GEN¥57,900199308-199908

COLD AREA SPEC

main60161-60400iFZJ73..LX¥57,900199012-200701

W(OVER FENDER)

main60161-60410iPZJ73¥57,900199012-200701

main60161-60410iFZJ73..STD..GEN¥57,900199308-199608

COLD AREA SPEC

main60161-60420iFZJ74..STD¥57,900199012-200701

W(OVER FENDER)

main60161-60430iFJ75,FZJ75,HZJ75,PZJ75..HT¥111,000199012-199908

sub60161-60710¥111,000

sub90950-01889¥130

sub90950-01890¥170

main60161-60440iPZJ75..HT¥111,000199012-199908

W(FUEL SUB TANK)

sub60161-60720¥111,000

sub90950-01889¥130

sub90950-01890¥170

main60161-60710iHDJ78;HZJ78..STD;FZJ78..GCC,GEN¥111,000199908-200611

sub60161-60711¥69,200

main60161-60711iFZJ78..RHD;FZJ78..GCC;HDJ78,HZJ78¥69,200200612-200808

main60161-60720iFZJ78..ARL¥111,000199908-200611

W(FUEL SUB TANK)

sub60161-60721¥69,200

main60161-60721iFZJ78,HDJ78,HZJ78¥69,200200612-200701

W(FUEL SUB TANK)

main60161-60730iHZJ71..SOT¥31,500199908-200701

W(FUEL LID OPENER)

main60161-60740iHZJ71..SOT¥31,500199908-200701

main60161-60740iHZJ70¥31,500199908-200007

W(FUEL LID OPENER & OVER FENDER)

main61601-6B630iFZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV¥30,100199908-200808

main61611-60270iFJ70,HZJ70,LJ70,72,PZJ70,RJ70..HT¥87,500199001-199011

sub60161-60330¥87,100

main61611-60290iFJ70,HZJ70,LJ70,72,PZJ70,RJ70..HT¥87,500199001-199011

W(OVER FENDER)

sub60161-60350¥87,100

main61611-60300iFJ70,LJ72,PZJ70,RJ70..SOT¥50,500199001-199011

sub60161-60360¥50,100

main61611-60310iFJ70,LJ72,PZJ70,RJ70..SOT¥50,500199001-199011

W(OVER FENDER)

sub60161-60370¥50,100

main61611-60320iFJ73,HZJ73,PZJ73..LX¥58,200199001-199012

sub60161-60380¥57,900

main61611-60340iFJ73,HZJ73,PZJ73..LX¥58,200199001-199012

W(OVER FENDER)

sub60161-60400¥57,900

main61611-60350iFJ73,PZJ73..STD¥58,200199001-199012

sub60161-60410¥57,900

main61611-60360iFJ73,PZJ73..STD¥58,200199001-199012

W(OVER FENDER)

sub60161-60420¥57,900

main61611-60370iFJ75,HZJ75,PZJ75..HT¥111,000199001-199012

sub60161-60430¥111,000

main61611-60380iFJ75,HZJ75,PZJ75..HT¥111,000199001-199012

W(FUEL SUB TANK)

sub60161-60440¥111,000

61627BEXTENSION, QUARTER PANEL, UPPER REAR RH

main61627-90K00iFZJ70..SOT¥910199001-200701

main61627-90K01iFZJ74..LX¥1,470199001-200701

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-60110iFZJ71..LHD..GEN¥19,800200712-200808

sub61631-60111¥16,500

main61631-60120iFZJ78..LHD200712-200808

main61631-90K01iFZJ70..SOT;FZJ70,HZJ70..ARL¥19,800199001-200711

sub61631-60110¥19,800

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-60020iRJ70..LX¥17,400199305-199604

W(FRONT SEAT BELT = *ELR & *RW) OR W(FRONT SEAT BELT = *ELR)

sub61633-60021¥10,700

main61633-60020iKZJ70¥17,400199305-199604

W(FRONT SEAT BELT = *ELR & *RW)

sub61633-60021¥10,700

main61633-60020iFJ70,FZJ70,LJ72,PZJ70,RJ70..LX..GEN¥17,400199001-199908

W(FRONT SEAT BELT = *ELR) OR W(FRONT SEAT BELT = *ELR & *RW)

sub61633-60021¥10,700

main61633-60020iFZJ78..ARL¥17,400199305-200701

sub61633-60021¥10,700

main61633-60021iFZJ71,78..LHD..STD..GEN¥10,700200701-200808

main61633-60030iPZJ70..LX¥15,300199001-199908

W(REAR SEAT BELT)

sub61633-60031¥9,700

main61633-60030iFJ70,FZJ70,LJ70,72,PZJ70,RJ70..LHD..LX¥15,300199001-200701

W(2ND SEAT BELT)

sub61633-60031¥9,700

main61633-60030iFJ70,FZJ70,HZJ70..ARL¥15,300199001-199501

NEW ZEALAND SPEC

sub61633-60031¥9,700

main61633-60030iLJ72..LHD¥15,300199508-199604

W(FRONT SEAT BELT = *ELR)

sub61633-60031¥9,700

main61633-60050iLJ77,79,RJ77¥17,200199004-199604

main61633-60060iKZJ77;LJ79,RJ77..STD;LJ79,RJ77..LHD..LX¥17,400199305-199604

EAST MALAYSIA SPEC OR W(REAR SEAT BELT)

sub61633-60061¥10,700

main61633-60060iRJ77..RHD..LX¥17,400199004-199604

W(REAR SEAT BELT)

sub61633-60061¥10,700

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-90K00iRJ70..SOT;PZJ7#..HT,SOT¥1,000199001-200808

61659BRETAINER, REAR DOOR OPEN SWITCH SET, RH

main61659-60010iFZJ74;FZJ70..HT..CBR;FZJ70,HZJ70..ARL;FJ73,FZJ73,HZJ71,PZJ73..CBR,DSL;FJ70,FZJ71,78,HZJ73,78,LJ70,72,PZJ70,RJ70..HT¥160199001-200808

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-60110iLJ77,79,RJ77..LX..GEN¥27,800199004-199108

W(3RD *FFRS)

sub61705-60140¥27,800

main61705-60120iRJ77..GCC;LJ79,RJ77..STD¥27,800199004-199604

W(3RD PARALLEL SEAT)

main61705-60140iKZJ77,LJ79,RJ77..LX..GEN¥27,800199108-199308

W(3RD *FFRS)

sub61705-60150¥27,800

main61705-60150iKZJ77,LJ79,RJ77..LX..GEN¥27,800199308-199604

W(3RD *FFRS)

main61705-60220iFZJ70..SOT¥12,100199107-200701

W(PARALLEL SEAT)

main61705-60230iFZJ74..STD¥12,100199107-200701

W(PARALLEL SEAT)

main61705-60240iFZJ73..LX¥12,300199208-200701

W(*HSL)

main61705-60250iFZJ73¥12,300199709-200701

main61705-60250iFZJ73..LX¥12,300199501-199908

W(*RW)

main61705-60250iFZJ73..STD..GEN..CBR¥12,300199105-199908

COLOMBIA SPEC

main61705-60260iFZJ75..LHD..HT..GEN¥68,400199305-199805

W(FRONT SEAT BELT = *ELR) & VENEZUELA SPEC

main61705-60270iFZJ75..LHD..HT..GEN¥68,400199305-199903

W(FRONT SEAT BELT = *ELR & FRONT BENCH SEAT) & VENEZUELA SPEC

sub61705-60271¥68,400

main61705-60271iFZJ75..LHD..HT..GEN¥68,400199903-199908

W(FRONT SEAT BELT = *ELR & FRONT BENCH SEAT) & VENEZUELA SPEC

main61705-60330iFZJ75..LHD..HT..GEN¥68,400199502-199903

W(FRONT BENCH SEAT) & VENEZUELA SPEC

sub61705-60331¥68,400

main61705-60331iFZJ75..LHD..HT..GEN¥68,400199903-199908

W(FRONT BENCH SEAT) & VENEZUELA SPEC

main61705-60610iFZJ70..STD¥27,900199909-200106

main61705-60611iFZJ71..LHD..STD..GEN200701-200808

main61705-60620iFZJ75,HZJ75..HT..STD..ARL¥62,700199903-199908

W/O(REAR SEAT)

main61705-60630iFZJ75,HZJ75..HT..STD¥62,700199903-199908

main61705-60640iFZJ75,HZJ75..HT..GEN¥62,700199903-199908

W(*FFRS)

main61705-60650iFZJ75,HZJ75..HT..(ARL,GEN)¥68,400199903-199908

W(*FFRS & SEAT BELT)

main61705-60660iFZJ75..CBU..EFI¥68,400199909-200009

main61705-60670iHZJ78..LX¥68,500199908-200611

W(3 POINT REAR SEAT BELT)

sub61705-60671

main61705-60670iHDJ78¥68,500200108-200611

W(TRANSVERSE REAR SEAT)

sub61705-60671

main61705-60671iFZJ78,HDJ78,HZJ78..ARL,GEN200612-200701

W(3 POINT REAR SEAT BELT)

main61705-60680iHZJ78..STD;FZJ78..GCC,GEN¥62,700199908-200701

W(PARALLEL SEAT)

main61705-60680iHDJ78..STD¥62,700200108-200701

main61705-60690iHDJ78,HZJ78..STD..ARL¥62,700199908-200611

W/O(REAR SEAT)

sub61705-60691

main61705-60691iHDJ78,HZJ78..STD..ARL200612-200701

W/O(REAR SEAT)

main61705-60700iFZJ78,HZJ78..GEN¥62,700199908-200701

main61705-60710iFZJ71,HZJ71..HT..GEN¥27,900199908-200701

W(TRANSVERSE REAR SEAT)

main61705-60710iFZJ71..GCC¥27,900200207-200507

W/O(REAR SEAT) & SAUDI ARABIA SPEC

main61705-60730iFZJ71..LHD..STD..GEN¥27,900200109-200701

W(REAR WIPER)

main61705-60820iFZJ74..STD..GCC¥12,300200207-200308

W/O(REAR SEAT) & SAUDI ARABIA SPEC

main61705-90K29iFJ70,FZJ70..SOT¥12,300199001-199501

W(*FFRS)

main61705-90K31iFJ70,LJ72,PZJ70,RJ70..SOT¥8,400199001-199107

sub61705-60220¥12,100

main61705-90K33iFJ73,PZJ73..STD¥11,300199001-199107

sub61705-60230¥12,100

main61705-90K36iFJ75,FZJ75,HZJ75..HT..STD..ARL¥52,100199001-199305

W/O REAR SEAT

sub61705-60620¥62,700

main61705-90K36iFZJ75,HZJ75..HT..STD..ARL¥52,100199305-199903

W/O(REAR SEAT)

sub61705-60620¥62,700

main61705-90K38iFZJ75,HZJ75..HT..STD¥52,100199001-199903

sub61705-60630¥62,700

main61705-90K38iFZJ75,HZJ75..HT..GEN¥52,100199401-199805

W(FRONT BENCH SEAT)

sub61705-60630¥62,700

main61705-90K38iFZJ75,HZJ75..HT..GEN¥52,100199510-199608

W(PARALLEL SEAT & SEAT BELT)

sub61705-60630¥62,700

main61705-90K39iFJ75,FZJ75,HZJ75,PZJ75..HT..GEN¥52,100199001-199903

W(*FFRS)

sub61705-60640¥62,700

main61705-90K40iFZJ75,HZJ75..HT..STD..(ARL,GEN)¥52,100199510-199903

W(*FFRS & SEAT BELT)

sub61705-60650¥68,400

main61705-90K40iFJ75,FZJ75,HZJ75..HT..STD..ARL¥52,100199001-199608

W(*FFRS)

sub61705-60650¥68,400

main61705-90K40iFZJ75,HZJ75..LX..ARL¥52,100199208-199903

sub61705-60650¥68,400

main61705-90K40iFZJ75,HZJ75..HT..GEN¥52,100199401-199608

W(*FFRS & FRONT SEAT BELT = *ELR)

sub61705-60650¥68,400

main61705-90K41iFJ75,HZJ75..HT¥51,900199001-199201

W(DUAL *AIC)

main61705-90K43iFZJ75..LHD..HT..GEN¥52,100199001-199903

VENEZUELA SPEC

sub61705-60660¥68,400

main61705-90K44iPZJ75..RHD..HT¥51,900199305-199401

W(FRONT SEAT BELT = *ELR) & ZIMBABWE SPEC

main61705-90K44iPZJ75..RHD..HT¥51,900199007-199305

W(FRONT BENCH SEAT) & ZIMBABWE SPEC

main61705-90K44iPZJ75..RHD..HT¥51,900199001-199007

ZIMBABWE SPEC

main61705-90K50iFZJ70,HZJ70..ARL¥27,900199001-199501

W(*RW)

main61705-90K50iFZJ71,HZJ71..HT¥27,900199908-200701

W(3 POINT REAR SEAT BELT)

main61705-90K51iFZJ70,HZJ70..HT..STD..(GCC,GEN)¥27,900199401-199908

W(PARALLEL SEAT)

main61705-90K51iFZJ71,HZJ71..HT..STD¥27,900199908-200701

main61705-90K51iFZJ70,LJ72,PZJ70,RJ70..HT..STD..(CBR,DSL)¥27,900199001-199401

W(*RW)

main61705-90K53iLJ72..RHD;RJ70..STD¥27,800199508-199604

W(FRONT SEPARATE SEAT)

main61705-90K53iLJ72..RHD;RJ70..STD¥27,800199501-199908

W(*FFRS)

main61705-90K53iFZJ70,HZJ70,KZJ70,RJ70..LX¥27,800199001-199501

W(*RW)

main61705-90K53iFZJ70,HZJ70,KZJ70,RJ70..LX¥27,800199305-199501

NEW ZEALAND SPEC

main61705-90K53iFZJ70,HZJ70..ARL¥27,800199001-199501

W(*FFRS & *RW)

main61705-90K53iKZJ70,RJ70..LX¥27,800199501-200106

main61705-90K53iFJ70,HZJ70..ARL¥27,800199001-199305

W(*RW) & NEW ZEALAND SPEC

main61705-90K56iFJ73,FZJ73,HZJ73,PZJ73..LX¥12,300199001-199908

sub61705-60250¥12,300

main61705-90K58iFJ70,FZJ70,HZJ70,PZJ70..ARL¥27,800199001-199501

sub61705-90K50¥27,900

main61705-90K59iFZJ70,LJ72,PZJ70,RJ70..HT..STD..(CBR,DSL)¥27,800199001-199401

sub61705-90K51¥27,900

main61705-90K61iFJ70,FZJ70,LJ70,72,PZJ70,RJ70..LX¥27,800199001-199501

W(*FFRS)

sub61705-90K53¥27,800

main61705-90K61iFJ70,PZJ70..ARL¥27,800199001-199305

NEW ZEALAND SPEC

sub61705-90K53¥27,800

61725BOX, FUEL INLET

main61709-60010iFZJ78..LHD..GEN¥1,880199201-200808

main61709-60010iPZJ75..HT¥1,880199201-200701

FRONT

main61709-90K00iFZJ73..STD..CBR;FZJ70,HZJ70..HT..STD..(GCC,GEN)¥2,910199108-200701

REAR

main61709-90K00iHZJ70..SOT¥2,910199001-200808

main61709-90K00iFJ75,HZJ75,PZJ75..HT¥2,910199001-199108

W(*FST),REAR

main61709-90K00iLJ79,RJ77..STD¥2,910199004-199305

W(*OF & *RW)

main61709-90K00iHZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT¥2,910199108-199604

*EX-USSR SPEC

main61709-90K01iFJ75,HZJ75,PZJ75..HT¥3,750199108-199201

FR

main61709-90K01iFJ75,HZJ75,PZJ75..HT¥3,750199001-199108

W(*FST),FR

main61725-90K02iHZJ70..RHD..GEN¥3,250199001-200007

BANGLADESH SPEC

main61725-90K02iPZJ70..RHD..GEN¥3,250199001-200405

W(*RW)

main61725-90K02iFZJ73..STD..GEN¥3,250199305-199908

COLOMBIA SPEC

main61725-90K02iFZJ73..STD..GEN¥3,250199308-199608

COLUMBIA HI-GRADE PACKAGE OR COLD AREA SPEC

main61725-90K02iFZJ70..LX¥3,250199908-200808

main61725-90K02iFZJ74..STD..GEN¥3,250200109-200408

COLOMBIA CKD PACKAGE

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61743-60100iFZJ74;HZJ71..SOT¥7,500200606-200701

main61743-60110iFZJ78,HDJ78,HZJ78200606-200701

main61743-60120iFZJ71,HZJ71..HT¥7,500200606-200701

main61743-90K00iLJ70..ARL¥7,500199108-199201

NEW ZEALAND SPEC

sub61743-60120¥7,500

main61743-90K00iFZJ70..HT..CBR;FZJ70,HZJ70..ARL;FJ70,FZJ71,HZJ71,LJ70,72,PZJ70,RJ70..HT¥7,500199201-200605

sub61743-60120¥7,500

main61743-90K01iPZJ70,73,RJ70..SOT¥7,500199201-200605

sub61743-60100¥7,500

main61743-90K01iPZJ70..SOT¥7,500199001-199201

BANGLADESH SPEC

sub61743-60100¥7,500

main61743-90K02iFZJ78,HDJ78,HZJ78¥7,500199201-200605

sub61743-60110

main61743-90K03iFJ70,HZJ70,LJ70,72,PZJ70,RJ70..HT¥7,600199001-199201

sub61743-90K00¥7,500

main61743-90K03iLJ72..LHD..HT..STD¥7,600199201-199208

*EX-USSR SPEC

sub61743-90K00¥7,500

main61743-90K04iFJ73,HZJ73,PZJ73;FJ70,LJ72,PZJ70,RJ70..SOT¥7,600199001-199201

sub61743-90K01¥7,500

main61743-90K05iFJ75,HZJ75,PZJ75..HT¥7,600199001-199201

sub61743-90K02¥7,500

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-90K00iFZJ73¥3,250199001-200701

61881SEAL, ROOF SIDE RAIL, FRONT RH

main61881-90K00iFZJ73..STD..CBR;FJ70,73,FZJ70,74,HZJ71,LJ72,PZJ70,73,RJ70..SOT¥450199001-200701

main61881-90K01iFZJ75..GEN..IV..EFI¥820199001-200405

main61881-90K02iFZJ74..LX¥820199001-200701

61883SEAL, ROOF SIDE RAIL, REAR RH

main61883-90K00iFZJ74;HZJ71..SOT¥380199001-200701

61958BRACKET, REAR SEAT LEG, NO.1 RH

main61958-90K00iHZJ71;FZJ71..GCC;FZJ71..RHD¥950199305-200808

main61958-90K00iFZJ70..STD..CBR;FJ70,FZJ71,HZJ71,LJ72,PZJ70,RJ70..STD..(GCC,GEN)¥950199001-199305

ZIMBABWE SPEC

main61958-90K00iRJ70..SOT;PZJ70..STD¥950199305-199401

ZIMBABWE SPEC,FRONT

main61958-90K01iFZJ75..GEN..CBU..EFI¥1,850199305-200808

main61958-90K01iPZJ75..RHD..HT¥1,850199305-199401

ZIMBABWE SPEC,REAR

main61959-90K01iFZJ74..STD¥920199001-200701

64198BBRACKET, LOWER BACK RAIL, INNER SIDE RH

main64198-90K00iFZJ70..SOT;FZJ70,HZJ70..ARL¥980199001-200701

7751

9011906405

main90119-06405¥70

9011906588

main90119-06588¥120

9011906605

main90119-06605¥80

904670604908

main90467-0604908

904670604922

main90467-0604922

9046710016B4

main90467-10016B4

9095001027

main90950-01027¥160

909500132401

main90950-0132401

9095001824

main90950-01824¥110

9095001889

main90950-01889¥130

9095006060

main90950-06060¥110

9418560800

main94185-60800¥100

48 parts on this diagram · 22 diagrams in section
