Toyota LAND CRUISER — SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-17010i1HZ..HZJ7#..GCC,GEN¥626,000199001-199411

sub11400-17011¥627,000

sub91622-G1014¥130

main11400-17011i1HZ..HZJ7#..GCC,GEN¥627,000199411-199705

sub11400-17012¥628,000

sub90345-52003¥230

main11400-17012i1HZ..HZJ7#..GCC,GEN¥628,000199705-199801

sub11400-17013¥628,000

main11400-17013i1HZ..HZJ7#..GCC,GEN¥628,000199801-199805

main11400-17020i1HZ..HZJ75..4F..IV;1HZ..HZJ75..PIC..(GCC,GEN)..CBU¥626,000199001-199305

W(FRONT HEATER OR REAR HEATER)

sub11400-17021¥627,000

sub91622-G1014¥130

main11400-17020i1HZ..HZJ75..HT..GEN;1HZ..HZJ75..5F..GEN..IV¥626,000199001-199411

W(FRONT HEATER)

sub11400-17021¥627,000

sub91622-G1014¥130

main11400-17020i1HZ..HZJ7#..ARL,SA¥626,000199305-199411

W(FRONT HEATER & REAR HEATER)

sub11400-17021¥627,000

sub91622-G1014¥130

main11400-17021i1HZ..HZJ70..SOT;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..CBU¥627,000199411-199705

W(FRONT HEATER) OR KENYA SPEC

sub11400-17022¥628,000

sub90345-52003¥230

main11400-17021i1HZ..HZJ7#..HT..GEN¥627,000199411-199705

W(FRONT HEATER) & W(FRONT & REAR HEATER)

sub11400-17022¥628,000

sub90345-52003¥230

main11400-17021i1HZ..HZJ7#..HT..GEN¥627,000199411-199705

W(FRONT HEATER)

sub11400-17022¥628,000

sub90345-52003¥230

main11400-17021i1HZ..HZJ70..ARL¥627,000199411-199501

sub11400-17022¥628,000

sub90345-52003¥230

main11400-17022i1HZ..HZJ75..ARL,SA¥628,000199705-199801

W(HEATER)

sub11400-17023¥628,000

main11400-17023i1HZ..HZJ7#¥628,000199801-199805

W(HEATER)

main11400-17120i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥397,000199805-200007

W(FRONT HEATER)

main11400-17120i1HZ..HZJ79..LHD;1HZ..HZJ71,78..GEN¥397,000199908-200701

W(HEATER)

main11400-17120i1HZ..HZJ79..LHD;1HZ..HZJ71,78..GEN¥397,000199908-200701

SOUTH AFRICA SPEC OR KENYA SPEC

main11400-17120i1HZ..HZJ78,79..ARL¥397,000200108-200701

main11400-17130i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..CBU¥628,000199805-200007

sub11400-17160¥627,000

main11400-17180i1HDFTE..HDJ7#¥627,000200108-200701

main11400-17190i1HZ..HZJ7#..GCC,GEN¥396,000200404-200701

main11400-18030i1PZ..PZJ7#..GEN¥558,000199001-199401

main11400-18040i1PZ..PZJ7#..PIC,SOT¥558,000199001-199305

W(FRONT HEATER OR REAR HEATER)

main11400-18040i1PZ..PZJ70,73..ARL¥558,000199001-199501

main11400-18040i1PZ..PZJ7#..PIC,SOT¥558,000199001-199401

W(FRONT HEATER)

main11400-18040i1PZ..PZJ70,75..HT¥558,000199305-199401

W(FRONT HEATER & REAR HEATER)

main11400-35043i22R..RJ7#..GCC,GEN¥365,000199001-199604

main11400-35053i22R..RJ70..ARL¥365,000199001-199108

sub11400-35043¥365,000

main11400-54110i2LT..LJ70¥432,000199001-199004

sub11400-54130¥441,000

main11400-54120i3L..LJ72,79¥460,000199004-199604

main11400-54130i2LT..LJ70,77¥441,000199004-199305

main11400-61122i3F..FJ7#¥553,000199001-199208

main11400-66020i1FZF..FZJ73,75..LHD..GEN;1FZF..FZJ70..LHD..HT..GEN¥551,000199201-199510

EX.EMISSION CONTROL

sub11400-66021¥550,000

sub12315-66022¥7,100

sub82123-60111¥2,320

sub90910-09075¥700

main11400-66020i1FZF..FZJ70..LX;1FZF..FZJ73..GEN;1FZF..FZJ75..LHD..PIC..GEN¥551,000199510-199711

LOW OCTANE SPEC

sub11400-66021¥550,000

sub12315-66022¥7,100

sub82123-60111¥2,320

sub90910-09075¥700

main11400-66020i1FZF..FZJ70..LX;1FZF..FZJ73..GEN;1FZF..FZJ75..LHD..PIC..GEN¥551,000199510-199711

CHINESE OR LOW OCTANE SPEC

sub11400-66021¥550,000

sub12315-66022¥7,100

sub82123-60111¥2,320

sub90910-09075¥700

main11400-66021i1FZF..FZJ7#..LHD..GEN¥550,000199711-199908

CHINESE OR LOW OCTANE SPEC

main11400-66030i1FZF..FZJ7#¥551,000199201-199711

sub11400-66031¥551,000

sub12315-66022¥7,100

sub82123-60111¥2,320

sub90910-09075¥700

main11400-66031i1FZF..FZJ75..SA¥551,000199711-199911

main11400-66040i1FZFE..FZJ70¥551,000199208-199711

sub11400-66041¥553,000

sub12315-66022¥7,100

sub82123-60111¥2,320

sub90910-09075¥700

main11400-66041i1FZFE..FZJ73,75..(PIC,SOT)..GEN¥553,000199711-200405

main11400-66050i1FZFE..FZJ79..GEN..IV;1FZFE..FZJ71,78..LHD..GEN¥553,000199908-200808

main11400-67020i1KZT..KZJ7#¥494,000199305-199503

sub11400-67021¥496,000

sub13572-67041¥1,290

sub13581-67041¥2,890

sub90105-10398¥180

main11400-67021i1KZT..KZJ7#¥496,000199503-199604

sub11400-69035¥497,000

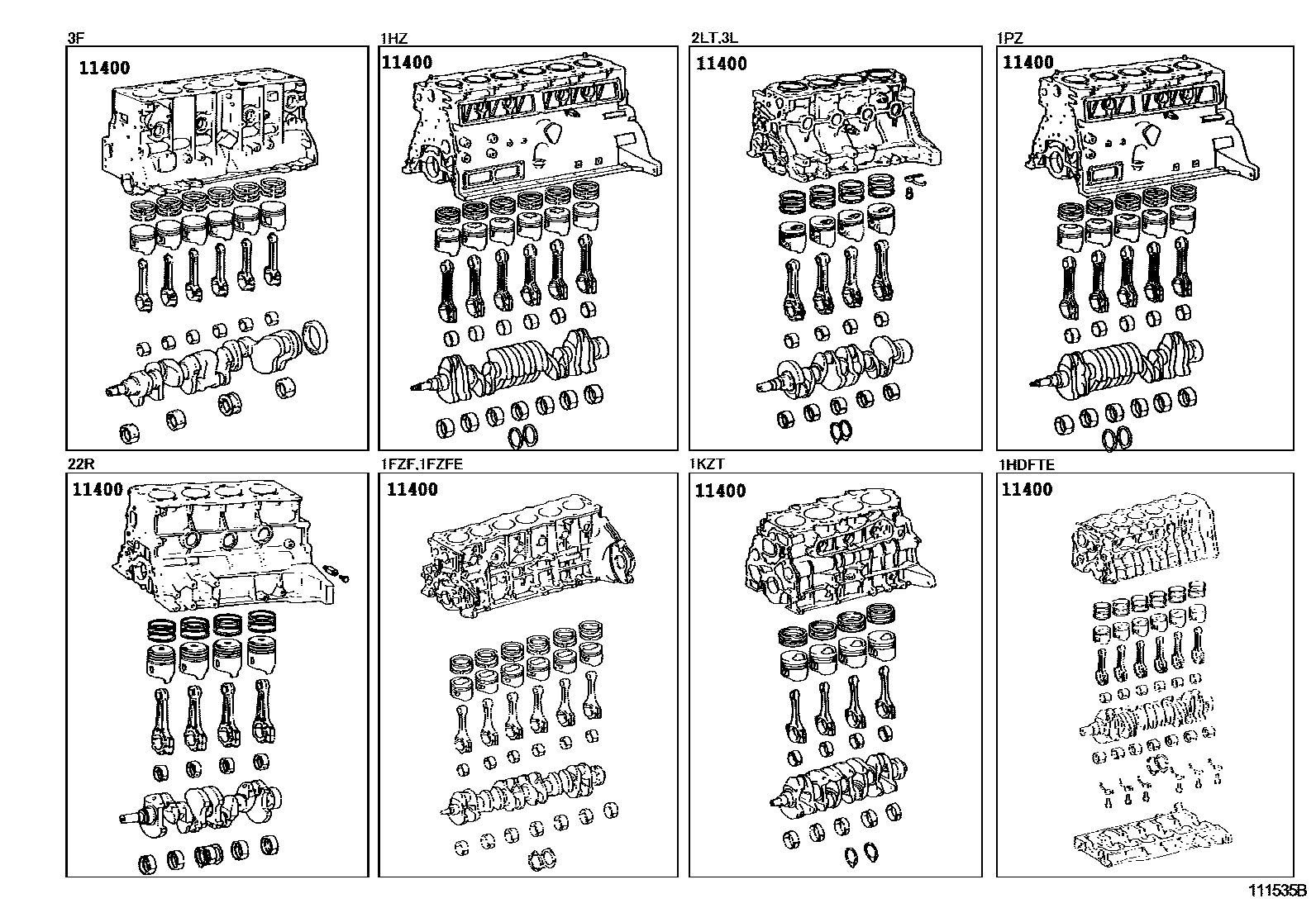

1 parts on this diagram · 1 diagram in section
