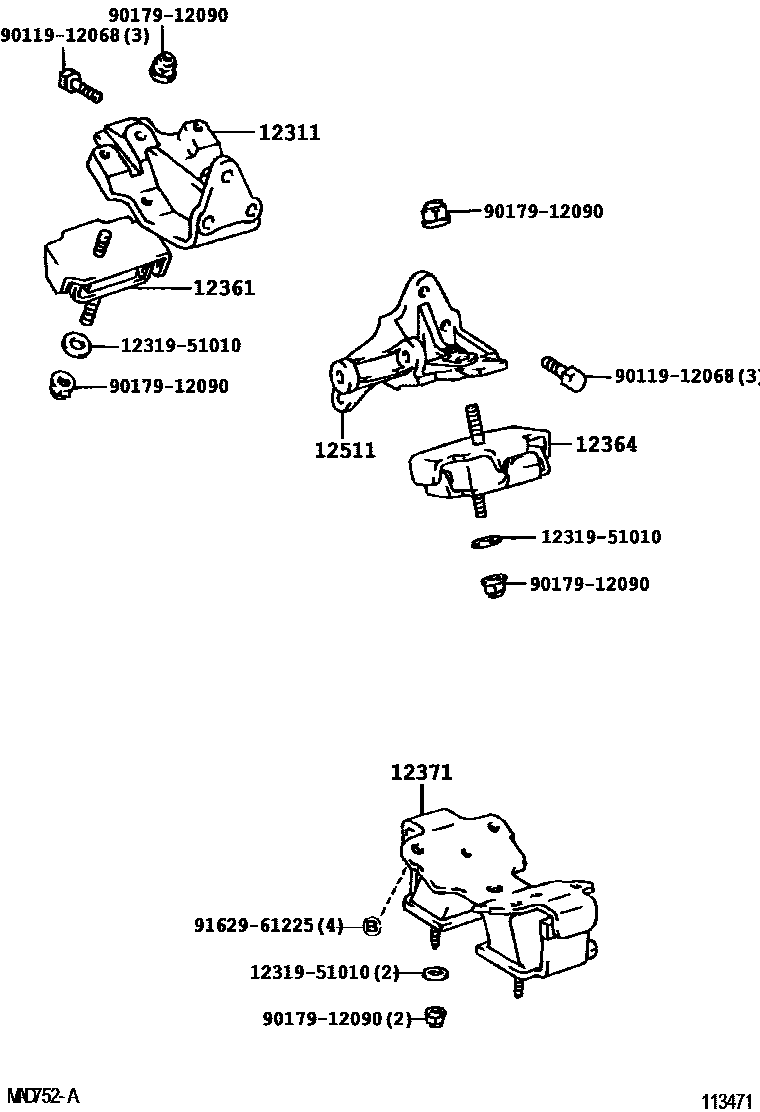

Toyota LAND CRUISER — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-35190i22R..RJ70¥7,900199001-199002

sub12301-35210¥7,800

main12301-35210i22R..RJ7#¥7,800199002-199604

main12311-17020i1HZ..HZJ7#¥5,500199001-200104

sub12311-17021¥3,420

main12311-17021i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥3,420200104-200701

main12311-54181i3L..LJ72,79..STD¥3,820199004-199305

main12311-61090i3F..FJ7#¥6,400199001-199208

main12311-66020i1FZF..FZJ75..SA¥8,500199201-200808

main12311-67020i1KZT..KZJ7#¥4,920199305-199604

sub12311-67021¥4,940

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-17020i1HZ..HZJ78..STD;1H#..HDJ7#,HZJ71;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV¥9,100199001-200701

main12361-54121i2LT,3L..LJ7#¥4,180199001-199604

main12361-58051i2H..HJ75¥9,300199001-199108

main12361-61050i3F..FJ7#¥7,900199001-199208

main12361-66020i1FZF..FZJ75..SA¥4,860199201-200808

main12361-67020i1KZT..KZJ7#¥5,500199305-199604

12364INSULATOR, ENGINE MOUNTING, FRONT LH

main12362-61010i3F..FJ7#¥7,900199001-199208

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-17010i1HZ..HZJ7#..MTM¥10,300199001-200007

main12371-17020i1HZ..HZJ73..4FC¥9,200199001-199108

main12371-17030i1PZ..PZJ7#¥9,100199001-199501

main12371-17080i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥6,400199908-200701

main12371-17120i1HDFTE..HDJ7#¥6,000200108-200701

main12371-54100i22R..RJ7#¥7,300199001-199604

main12371-58051i2H..HJ75¥10,900199001-199108

main12371-61031i3F..FJ7#..MTM¥16,200199001-199208

main12371-61041i3F..FJ70,73..4FC¥14,000199001-199201

main12371-66020i1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79¥8,400199201-200808

main12371-67041i1KZT..KZJ7#¥10,200199305-199604

12511BRACKET, ALTERNATOR, NO.1

main12511-17010i1HZ..HZJ7#¥9,400199001-199410

sub12511-17011¥9,400

main12511-17011i1HZ..HZJ70..ARL¥9,400199410-199510

sub12511-17012¥9,500

main12511-17012i1HZ..HZJ7#¥9,500199510-199801

sub12511-17013¥5,900

main12511-17013i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥5,900199801-200701

main12511-35010i22R..RJ70¥7,500199001-199604

main12511-61031i3F..FJ7#¥6,800199001-199208

main12511-66010i1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU¥5,700199201-200808

main12511-67020i1KZT..KZJ7#¥12,100199305-199604

1231951010SPACER, ENGINE FRONT SUPPORT

main12319-51010¥240

9011912068

main90119-12068¥240

9017912090

main90179-12090¥110

9162961225

main91629-61225¥230

9 parts on this diagram · 8 diagrams in section
