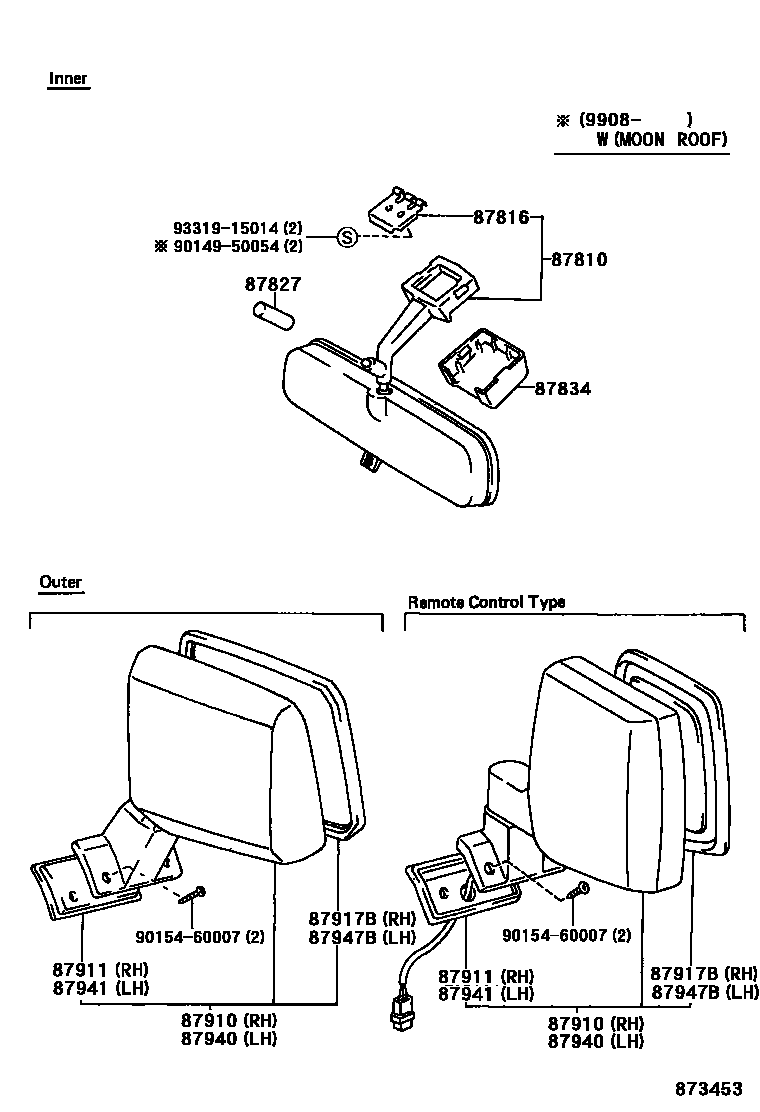

Toyota LAND CRUISER — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-90K04iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥7,100199001-200808

main87810-90K05iFZJ78,79,HZJ78..LHD..GEN..CBU¥7,100199510-200308

CHINA SPEC

main87810-90K05iFZJ71,74,78,79,HZJ79..GCC¥7,100199001-200701

main87810-90K05iFZJ79,HZJ79..RHD..GEN¥7,100200002-200701

SOUTH AFRICA SPEC

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iFJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#¥190199001-200808

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-30010iFJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#¥220199001-200808

L=44

main87828-87005iFJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#¥440199001-200808

L=49

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-18iFJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200106

IVORY,TRIM1#,4#

sub87834-20080¥260

main87834-20080-B6iHZJ78..LX;HZJ79..ARL..CBU199908-200808

LIGHT GRAY,TRIM1#,4#

sub87834-20080¥260

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-60140iHZJ75..LHD..HT;FZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU¥6,100199308-199309

CHINA SPEC

sub87910-60141¥6,200

main87910-60140iFZJ75,HZJ75..SA¥6,100199305-199309

sub87910-60141¥6,200

main87910-60141iFZJ71,74,78,79,HZJ71,78,79..GEN¥6,200199309-200701

NO PAINT REQ.

sub87910-60142¥4,230

main87910-60141iFZJ75,HZJ75..SA¥6,200199309-199508

NO PAINT REQ.,CHINA SPEC

sub87910-60142¥4,230

main87910-60142iFZJ79..IV;FZJ71,78..LHD..STD..GEN¥4,230200702-200808

NO PAINT REQ.

main87910-60150iFZJ73,75,HZJ75..LX..GCC¥10,500199305-199309

CHROME PLATED

sub87910-60151¥10,500

main87910-60151iFZJ7#,HZJ75..STD..GCC¥10,500199309-199608

PLATED

main87910-60152iFZJ71,74,78,79,HZJ79..GCC¥7,200199608-200701

PLATED

main87910-60310iLJ77,79,RJ77..LHD..LX¥23,400199004-199508

PLATED,REMOTE CONTROL TYPE

main87910-60320iLJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN¥6,100199004-199508

NO PAINT REQ.

main87910-60331iRJ77..LHD..GEN¥10,500199308-199309

CHINA SPEC

sub87910-60332¥10,600

main87910-60332iRJ77..LHD..GEN¥10,600199309-199508

NO PAINT REQ.,CHINA SPEC

sub87910-60333

main87910-60332iLJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN¥10,600199508-199604

NO PAINT REQ.

sub87910-60333

main87910-60340iKZJ77,RJ77..RHD..LX¥23,400199305-199508

PLATED

main87910-60340iLJ79..RHD..LX¥23,400199004-199508

PLATED,REMOTE CONTROL TYPE

main87910-60360iRJ77..GCC¥10,500199004-199305

sub87910-60362¥10,600

main87910-60361iRJ77..GCC¥10,500199305-199309

sub87910-60362¥10,600

main87910-60362iRJ77..GCC¥10,600199309-199604

PLATED

sub87910-60363

main87910-60460iFZJ74..STD..GEN¥19,500199508-200808

PLATED,REMOTE CONTROL TYPE

main87910-60460iFZJ73..STD..GEN..CBR¥19,500199508-199908

PLATED,COLOMBIA SPEC

main87910-60470iKZJ77,LJ79,RJ77..LHD..LX199508-199604

PLATED,REMOTE CONTROL TYPE

main87910-60480iLJ79..RHD..LX199508-199604

PLATED,REMOTE CONTROL TYPE

main87910-60480iLJ79..RHD..LX199508-199604

PLATED

main87910-60680iFZJ7#,HZJ75..STD..GCC¥4,230199608-200701

NO PAINT REQ.

main87910-60690iFZJ73,75,HZJ75..LX..GCC¥19,500199608-200701

PLATED,REMOTE CONTROL TYPE

main87910-90K00iHDJ7#;HZJ79..ARL..IV;HZJ78..STD..ARL¥6,200199001-200701

NO PAINT REQ.

main87910-90K04iFJ7#,FZJ7#,HZJ75..STD..GCC¥6,100199001-199305

PLATED

sub87910-60151¥10,500

main87910-90K09iFZJ73..STD..GEN¥25,300199001-199508

PLATED,REMOTE CONTROL TYPE

main87910-90K09iFZJ7#,HZJ7#,KZJ70,RJ70..LHD..LX¥25,300199305-199508

PLATED,COLOMVIA SPEC HI-GRADE

main87910-90K15iFJ75,FZJ75,HJ75,HZJ75..SA¥5,900199001-199305

sub87910-60142¥4,230

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-60050iLJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN¥400199004-199508

main87911-60060iLJ79..STD;KZJ77,RJ77;LJ79..LHD..LX¥400199004-199604

main87911-60060iRJ77..LHD..GEN¥400199308-199508

CHINA SPEC

main87911-60070iLJ79..LHD..LX;KZJ77,RJ77..LX¥270199004-199604

REMOTE CONTROL TYPE

main87911-90K00iHZJ75..CBU;FJ75..ARL..CBU;HZJ75..GEN..IV;FJ70,73..STD..GCC;FJ75..STD..(GCC,GEN);FJ70,73,HZJ70,73,LJ70,72,PZJ7#,RJ70..ARL,GEN¥630199001-200701

main87911-90K01iFJ7#,FZJ7#,HZJ75..STD..GCC¥440199001-199508

CHROME PLATED

main87911-90K01iKZJ70,LJ72,RJ70¥440199508-200808

main87911-90K01iHZJ75..LHD..HT;FZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU¥440199308-199508

CHINA SPEC

main87911-90K05iFZJ7#,HZJ7#,KZJ70,RJ70..LHD..LX¥440199001-200808

REMOTE CONTROL TYPE

main87911-90K05iFZJ73..STD..GEN..CBR¥440199305-200405

COLOMBIA SPEC

87917BMIRROR, OUTER REAR VIEW, RH

main87917-60460iFZJ71,74..LX..GEN¥2,740199908-200808

REMOTE CONTROL MIRROR

main87917-60680iFZJ71,74,78,79,HZJ79..GCC199908-200701

main87917-60690iFZJ74,79..LX..GCC199908-200701

REMOTE CONTROL MIRROR

main87917-90K00iHZJ75..CBU;FJ75..ARL..CBU;HZJ75..GEN..IV;FJ70,73..STD..GCC;FJ75..STD..(GCC,GEN);FJ70,73,HZJ70,73,LJ7#,PZJ7#,RJ7#..ARL,GEN¥3,290199001-200701

main87917-90K01iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#¥1,480199508-200808

main87917-90K01iFZJ75,HZJ75..SA;FZJ73,75,HZJ75,RJ77..LX..GCC¥1,480199305-199508

CHROME PLATED

main87917-90K01iHZJ75,RJ77..LHD..HT..GEN;FZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU¥1,480199308-199508

CHINA SPEC

main87917-90K03iFJ70,73,FZJ70,73,LJ70,72,PZJ70,RJ70..LX..GEN¥2,120199001-199305

REMOTE CONTROL MIRROR

sub87901-60050¥2,120

main87917-90K08iFZJ73..STD..GEN199004-199508

REMOTE CONTROL MIRROR

main87917-90K08iLJ79..RHD..LX199305-199508

COLOMBIA HI-GRADE PACKAGE

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-60250iLJ77,79,RJ77..LHD..LX¥19,300199004-199508

PLATED,REMOTE CONTROL TYPE

main87940-60260iLJ77,79,RJ77..GEN¥6,100199004-199508

NO PAINT REQ.

main87940-60271iRJ77..LHD..GEN¥10,500199308-199309

CHINA SPEC

sub87940-60272¥10,600

main87940-60272iLJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN¥10,600199508-199604

NO PAINT REQ.

sub87940-60273

main87940-60272iRJ77..LHD..GEN¥10,600199309-199508

NO PAINT REQ.,CHINA SPEC

sub87940-60273

main87940-60280iLJ77,79,RJ77..RHD..LX¥25,300199004-199508

PLATED,REMOTE CONTROL TYPE

main87940-60280iLJ79..RHD..LX¥25,300199305-199508

PLATED

main87940-60300iRJ77..GCC¥10,500199004-199305

sub87940-60302¥10,600

main87940-60301iRJ77..GCC¥10,500199305-199309

sub87940-60302¥10,600

main87940-60302iRJ77..GCC¥10,600199309-199604

PLATED

sub87940-60303

main87940-60370iFZJ75,HZJ75..SA¥6,100199305-199309

sub87940-60371¥6,200

main87940-60370iHZJ75..LHD..HT;FZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU¥6,100199308-199309

CHINA SPEC

sub87940-60371¥6,200

main87940-60371iFZJ73,75..(PIC,SOT)..GEN..EFI¥6,200199309-200701

NO PAINT REQ.

sub87940-60372¥4,230

main87940-60371iFZJ75,HZJ75..SA¥6,200199309-199508

NO PAINT REQ.,CHINA SPEC

sub87940-60372¥4,230

main87940-60372iFZJ79..IV;FZJ71,78..LHD..STD..GEN¥4,230200702-200808

NO PAINT REQ.

main87940-60380iFZJ73,75,HZJ75..LX..GCC¥10,500199305-199309

CHROME PLATED

sub87940-60381¥10,500

main87940-60381iFZJ7#,HZJ75..STD..GCC¥10,500199309-199608

PLATED

main87940-60382iFZJ7#,HZJ75..GCC¥7,200199608-200701

PLATED

main87940-60420iFZJ73..EFI¥19,500199508-200808

PLATED,REMOTE CONTROL TYPE

main87940-60420iFZJ73..STD..GEN..CBR¥19,500199508-199908

PLATED,COLOMBIA SPEC

main87940-60430iKZJ77,LJ79,RJ77..LHD..LX199508-199604

PLATED,REMOTE CONTROL TYPE

main87940-60440iKZJ77,RJ77..RHD..LX199508-199604

PLATED

main87940-60440iKZJ77,RJ77..RHD..LX199508-199604

PLATED,REMOTE CONTROL TYPE

main87940-60600iFZJ7#,HZJ75..STD..GCC¥4,230199608-200701

NO PAINT REQ.

main87940-60610iFZJ74,79..LX..GCC¥19,500199608-200701

PLATED,REMOTE CONTROL TYPE

main87940-90K00iFZJ75..LHD..IV;FZJ75..LX..EFI;FZJ75..IV..EFI;HZJ75..ARL,GEN;FZJ70,RJ70..HT..CBR;FZJ73,HZJ75..STD..GCC;FZJ73,HZJ70,KZJ70,LJ72..GEN;FZJ75..STD..(ARL,GCC,GEN)..CBU¥6,200199001-200701

NO PAINT REQ.

main87940-90K04iFJ7#,FZJ7#,HZJ75..STD..GCC¥6,100199001-199305

PLATED

sub87940-60381¥10,500

main87940-90K09iFZJ73..STD..GEN¥25,300199305-199508

PLATED,COLOMBIA SPEC

main87940-90K09iFZJ73..STD..GEN¥25,300199001-199508

PLATED,REMOTE CONTROL TYPE

main87940-90K15iFJ75,FZJ75,HJ75,HZJ75..SA¥5,900199001-199305

sub87940-60372¥4,230

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87911-60050iLJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN¥400199004-199508

main87911-60060iRJ77..GCC¥400199004-199604

main87911-60060iRJ77..LHD..GEN¥400199308-199508

CHINA SPEC

main87911-60070iLJ77,79,RJ77..LX¥270199004-199604

REMOTE CONTROL TYPE

main87911-90K00iFZJ70..CBR;HZJ75..LHD..STD..CBU;HZJ75..RHD..(ARL,GEN);FJ70,73,FZJ73..STD..GCC;FJ75,FZJ75..STD..(ARL,GCC,GEN)..CBR;FZJ70,75,78,79,HDJ7#,HZJ70,73,78,79..ARL;FJ70,73,F¥630199001-200701

main87911-90K01iFZJ70,75..GEN..CBU..EFI¥440199508-200808

main87911-90K01iHZJ78..GEN;FJ75,FZJ75,HZJ75..SA;FJ7#,FZJ73,75,HZJ75..LX..GCC;FZJ71,74,78,79,HJ75,HZJ71,79..GCC,GEN,SA¥440199001-199508

CHROME PLATED

main87911-90K01iHZJ75..LHD..HT;FZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU¥440199308-199508

CHINA SPEC

main87911-90K05iFZJ73..EFI¥440199305-200405

COLOMBIA SPEC

main87911-90K05iFZJ74..STD..GEN¥440199001-200808

REMOTE CONTROL TYPE

87947BMIRROR, OUTER REAR VIEW, LH

main87947-60250iLJ79..LHD..LX;KZJ77,RJ77..LX199004-199508

REMOTE CONTROL MIRROR

main87947-60420iFZJ74..STD..GEN¥2,740199908-200808

REMOTE CONTROL MIRROR

main87947-60600iFZJ71,74,78,79,HZJ79..GCC199908-200701

main87947-60610iFZJ74,79..LX..GCC¥2,280199908-200701

REMOTE CONTROL MIRROR

main87947-90K00iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199001-200701

main87947-90K01iFZJ75,HZJ75..SA;FZJ73,75,HZJ75,RJ77..LX..GCC¥1,480199305-199508

CHROME PLATED

main87947-90K01iHZJ75,RJ77..LHD..HT..GEN;FZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU¥1,480199308-199508

CHINA SPEC

main87947-90K01iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#¥1,480199004-200808

main87947-90K08iPZJ70..LX199001-199508

REMOTE CONTROL MIRROR

main87947-90K08iFZJ73..STD..GEN199305-199508

COLOMBIA HI-GRADE PACKAGE

9014950054

main90149-50054¥70

9015460007

main90154-60007¥120

9331915014

main93319-15014¥140

13 parts on this diagram · 1 diagram in section
