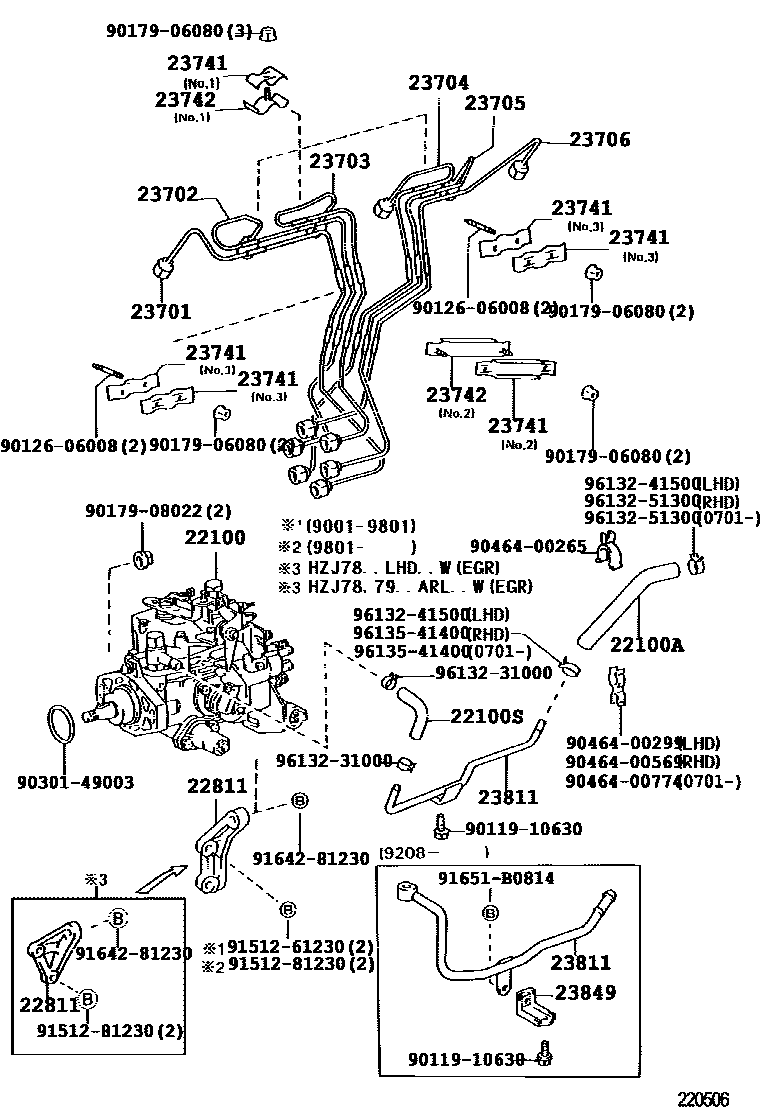

Toyota LAND CRUISER — INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1 0006 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-17050i1HZ..HZJ75..SA¥351,000199108-199208

sub22100-17060¥358,000

main22100-17050i1HZ..HZJ75..GEN¥351,000199001-199208

W(HIGH ALTITUDE COMPENSATOR)

sub22100-17060¥358,000

main22100-17060i1HZ..HZJ75..GEN¥358,000199001-199208

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP)

main22100-17070i1HZ..HZJ73..4FC¥327,000199001-199108

main22100-17200i1HZ..HZJ75..RHD..PIC..GEN..CBU¥319,000199201-199208

BANGLADESH CKD SPEC

sub22100-17100¥327,000

main22100-17200i1HZ..HZJ75..PIC..4F..CBU¥319,000199001-199201

BANGLADESH CKD SPEC

sub22100-17100¥327,000

main22100-17310i1HZ..HZJ75..STD..(GCC,GEN)¥319,000199001-199208

sub22100-17320¥327,000

main22100-17320i1HZ..HZJ75..LX;1HZ..HZJ7#..5F..ARL¥327,000199001-199208

W(TACHO METER)

main22100-17491i1HZ..HZJ75..GEN¥346,000199208-199305

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP)

main22100-17491i1HZ..HZJ75..RHD..GEN;1HZ..HZJ75..LHD..GEN..CBU¥346,000199305-199805

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP)

main22100-17491i1HZ..HZJ70..LX¥346,000199401-199501

W(HIGH ALTITUDE COMPENSATOR)

main22100-17491i1HZ..HZJ70..LX¥346,000199501-199805

W(HIGH ALTITUDE COMPENSATOR & TACHO METER)

main22100-17500i1HZ..HZJ75..STD..GCC¥319,000199305-199805

sub22100-17510¥328,000

main22100-17500i1HZ..HZJ75..STD..GCC¥319,000199208-199305

sub22100-17510¥328,000

main22100-17510i1HZ..HZJ75..ARL;1HZ..HZJ75..LX..GCC¥328,000199305-199805

main22100-17510i1HZ..HZJ7#..ARL;1HZ..HZJ75..LX..GCC¥328,000199208-199305

main22100-17510i1HZ..HZJ70..ARL¥328,000199305-199501

main22100-17680i1HZ..HZJ75..SA¥346,000199208-199305

W(HIGH ALTITUDE COMPENSATOR)

sub22100-17491¥346,000

main22100-17680i1HZ..HZJ7#..STD..GEN¥346,000199305-199805

W(HIGH ALTITUDE COMPENSATOR)

sub22100-17491¥346,000

main22100-17780i1HZ..HZJ75..RHD..PIC..GEN..CBU¥317,000199208-199305

BANGLADESH CKD SPEC

main22100-17780i1HZ..HZJ7#..RHD..(PIC,SOT)..GEN..CBU¥317,000199305-199805

BANGLADESH CKD SPEC

main22100-17790i1HZ..HZJ7#..STD..GEN¥318,000199305-199805

main22100-17790i1HZ..HZJ75..GEN¥318,000199208-199305

main22100-17800i1HZ..HZJ75..RHD..GEN;1HZ..HZJ75..LHD..GEN..CBU¥330,000199305-199805

W(TACHO METER)

main22100-17800i1HZ..HZJ75..LHD..IV¥330,000199501-199805

W(TACHO METER PICK UP)

main22100-17800i1HZ..HZJ75..GEN¥330,000199208-199305

W(TACHO METER)

main22100-17800i1HZ..HZJ70..LX¥330,000199401-199501

main22100-17A10i1HZ..HZJ78,79..ARL¥437,000200401-200701

W(EGR)

main22100-18010i1PZ..PZJ70..SOT¥296,000199001-199208

BANGLADESH CKD SPEC

sub22100-18020¥306,000

main22100-18050i1PZ..PZJ75..RHD;1PZ..PZJ75..LHD..CBU;1PZ..PZJ70,73..STD..GEN¥296,000199011-199208

sub22100-18060¥306,000

main22100-18050i1PZ..PZJ7#..STD..GEN¥296,000199001-199011

sub22100-18060¥306,000

main22100-18060i1PZ..PZJ70..LX;1PZ..PZJ70,73..ARL¥306,000199001-199208

main22100-18070i1PZ..PZJ75..RHD;1PZ..PZJ75..LHD..CBU;1PZ..PZJ70,73..STD..GEN¥330,000199011-199208

W(HIGH ALTITUDE COMPENSATOR)

sub22100-18080¥340,000

main22100-18070i1PZ..PZJ7#..STD..GEN¥330,000199001-199011

W(HIGH ALTITUDE COMPENSATOR)

sub22100-18080¥340,000

main22100-18080i1PZ..PZJ70..LX¥340,000199001-199208

W(HIGH ALTITUDE COMPENSATOR)

main22100-18131i1PZ..PZJ75..RHD;1PZ..PZJ70,73..STD;1PZ..PZJ75..LHD..CBU¥294,000199208-199305

sub22100-18141¥303,000

main22100-18131i1PZ..PZJ75..RHD;1PZ..PZJ70,73..STD;1PZ..PZJ75..LHD..CBU¥294,000199305-199401

sub22100-18141¥303,000

main22100-18141i1PZ..PZJ70..LX¥303,000199305-199401

main22100-18141i1PZ..PZJ70..LX¥303,000199208-199305

main22100-18151i1PZ..PZJ75..4F..IV¥324,000199305-199401

W(HIGH ALTITUDE COMPENSATOR)

sub22100-18161¥335,000

main22100-18151i1PZ..PZJ75¥324,000199401-199501

sub22100-18161¥335,000

main22100-18151i1PZ..PZJ75..RHD;1PZ..PZJ70,73..STD;1PZ..PZJ75..LHD..CBU¥324,000199208-199305

W(HIGH ALTITUDE COMPENSATOR)

sub22100-18161¥335,000

main22100-18161i1PZ..PZJ70..LX¥335,000199208-199305

W(HIGH ALTITUDE COMPENSATOR)

main22100-18161i1PZ..PZJ70..LX¥335,000199305-199401

W(HIGH ALTITUDE COMPENSATOR)

main22100-18180i1PZ..PZJ70..SOT¥294,000199208-199305

BANGLADESH CKD SPEC

main22100-18180i1PZ..PZJ70..SOT¥294,000199305-199401

BANGLADESH CKD SPEC

main22100-1C050i1HZ..HZJ75..RHD..PIC..GEN..CBU¥201,000199805-200007

W(TACHO METER PICK UP)

main22100-1C050i1HZ..HZJ75..ARL;1HZ..HZJ75..LX..GCC¥201,000199805-199908

W(TACHO METER PICK UP)

main22100-1C050i1HZ..HZJ78,79..GEN¥201,000199908-200701

W(TACHO METER PICK UP)

main22100-1C060i1HZ..HZJ70..LX¥361,000199805-199908

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP)

main22100-1C060i1HZ..HZJ75..RHD..PIC..GEN..CBU¥361,000199805-200002

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP)

main22100-1C060i1HZ..HZJ75¥361,000200002-200007

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP)

main22100-1C060i1HZ..HZJ78,79..GEN¥361,000199908-200002

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP)

main22100-1C060i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥361,000199908-200108

main22100-1C060i1HZ..HZJ79..ARL..IV;1HZ..HZJ78..STD..ARL¥361,000199908-200207

main22100-1C070i1HZ..HZJ78..LHD¥356,000200010-200207

CHINA SPEC

main22100-1C190i1HZ..HZJ71,78,79..GCC,GEN¥196,000199908-200701

main22100-1C190i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥196,000199805-200007

main22100-1C190i1HZ..HZJ75..GEN..IV;1HZ..HZJ7#..HT..STD..GEN;1HZ..HZJ75..LHD..PIC..STD..CBU¥196,000199805-199908

main22100-1C200i1HZ..HZJ79..ARL..IV¥351,000199908-200002

W(HIGH ALTITUDE CONPENSATOR)

sub22100-1C201¥215,000

main22100-1C200i1HZ..HZJ71,78,79..GEN¥351,000199908-200002

W(HIGH ALTITUDE COMPENSATOR)

sub22100-1C201¥215,000

main22100-1C200i1HZ..HZJ71,78,79..GEN¥351,000199908-200002

PAPUA NEW GUINEA SPEC

sub22100-1C201¥215,000

main22100-1C200i1HZ..HZJ75..SA¥351,000199805-199811

sub22100-1C201¥215,000

main22100-1C200i1HZ..HZJ75..GEN..IV;1HZ..HZJ7#..HT..STD..GEN;1HZ..HZJ75..LHD..PIC..GEN..CBU¥351,000199805-199908

W(HIGH ALTITUDE COMPENSATOR)

sub22100-1C201¥215,000

main22100-1C200i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥351,000199805-200002

W(HIGH ALTITUDE COMPENSATOR)

sub22100-1C201¥215,000

main22100-1C201i1HZ..HZJ71,78,79..GEN¥215,000200002-200701

PAPUA NEW GUINEA SPEC

main22100-1C201i1HZ..HZJ70,75¥215,000200002-200007

W(HIGH ALTITUDE COMPENSATOR)

main22100-1C201i1HZ..HZJ79..ARL..IV¥215,000200002-200701

W(HIGH ALTITUDE COMPENSATOR)

main22100-1C210i1HZ..HZJ75..RHD..PIC..GEN..CBU¥346,000199805-200007

EAST MALAYSIA CKD SPEC

sub22100-1C070¥356,000

main22100-1C220i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥310,000199805-200007

BANGLADESH CKD SPEC

sub22100-1C320¥320,000

main22100-1C240i1HZ..HZJ75..SA¥352,000199811-199911

sub22100-1C241¥342,000

main22100-1C240i1HZ..HZJ79..RHD..GEN¥352,000199908-200002

SOUTH AFRICA SPEC

sub22100-1C241¥342,000

main22100-1C241i1HZ..HZJ79..RHD..GEN¥342,000200002-200701

SOUTH AFRICA SPEC

main22100-1C320i1HZ..HZJ71,79..RHD..(PIC,SOT)..CBU¥320,000200408-200701

BANGLADESH CKD SPEC

main22100-1C350i1HZ..HZJ79..RHD..GEN¥405,000199908-200408

W(EGR)

main22100-1C370i1HZ..HZJ78,79..ARL¥437,000200207-200401

W(EGR)

main22100-1C370i1HZ..HZJ78..LHD¥437,000200207-200308

W(EGR)

main22100-1C380i1HZ..HZJ78,79..GEN¥222,000200002-200701

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP)

main22100-1C410i1HDFTE..HDJ7#¥411,000200108-200701

main22100-1C461i1HZ..HZJ78,79..LHD..GEN..CBU¥243,000200408-200701

COLD SPEC

main22100-54710i3L..LJ79..RHD..LX¥279,000199011-199305

MALAYSIA SPEC

main22100-54710i3L..LJ79..RHD..LX¥279,000199305-199604

main22100-54850i3L..LJ72,79..STD¥271,000199004-199305

sub22100-54860¥279,000

main22100-54860i3L..LJ72,79..LX¥279,000199004-199305

W(TACHO METER PICK UP)

main22100-54860i3L..LJ7#..STD;3L..LJ79..LHD..LX¥279,000199305-199604

main22100-54880i3L..LJ7#..STD;3L..LJ79..LHD..LX¥314,000199305-199604

W(HIGH ALTITUDE COMPENSATOR)

main22100-54880i3L..LJ72,79¥314,000199004-199305

W(HIGH ALTITUDE COMPENSATOR)

main22100-5B030i3L..LJ79..RHD..LX¥274,000199004-199011

MALAYSIA SPEC

main22100-5B051i3L..LJ72,79..LHD..HT..STD¥305,000199108-199305

COLD AREA SPEC OR SWEDEN SPEC

sub22100-5B420¥321,000

main22100-5B051i3L..LJ7#..LHD¥305,000199305-199604

COLD AREA SPEC

sub22100-5B420¥321,000

main22100-5B051i3L..LJ79..LHD;3L..LJ72..LHD..HT..STD¥305,000199108-199305

COLD AREA SPEC OR W(POWER STEERING)

sub22100-5B420¥321,000

main22100-5B270i2LT..LJ70,77¥371,000199001-199305

main22100-67050i1KZT..KZJ7#¥362,000199305-199604

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-17060i1PZ..PZJ7#¥740199002-199208

*H,L=300

main23271-17061i1PZ..PZJ7#¥790199305-199501

*H,L=320

main23271-17061i1PZ..PZJ7#¥790199208-199305

*H,L=320

main23271-17150i1HZ..HZJ79..ARL..IV;1HZ..HZJ79..RHD..GEN;1HZ..HZJ78..RHD..STD¥1,790199908-200308

FUEL FILTER,E+SUBFILTER 12MM

main23271-17150i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥1,790199908-200108

main23271-17150i1HZ..HZJ71;1HZ..HZJ78,79..LHD¥1,790199908-200701

main23271-17170i1HDFTE..HDJ7#¥2,960200108-200305

main23271-17180i1HZ..HZJ78,79..RHD¥1,730200303-200308

sub23271-17181¥1,720

main23271-17181i1HZ..HZJ78,79..RHD¥1,720200308-200701

FUEL FILTER,E+SUBFILTER 12MM

main23271-17190i1HDFTE..HDJ7#¥1,790200305-200701

main23271-67010i1KZT..KZJ77..RHD¥1,390199305-199604

L=500

main23271-67020i1KZT..KZJ7#..LHD¥1,550199305-199604

L=580

main90447-14068i2LT,3L..LJ7#..RHD¥1,700199001-199305

main90447-14068i3L..LJ7#..RHD¥1,700199305-199604

main90447-14069i2LT,3L..LJ7#..LHD¥2,010199001-199305

main90447-14069i3L..LJ7#..LHD¥2,010199305-199604

main95332-10030i1PZ..PZJ7#¥1,030199001-199002

L=300

main95332-10040i1HZ..HZJ7#¥1,160199208-199305

L=400(*H,L=340)

main95332-10040i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥1,160199305-200007

L=400(*H,L=340)

main95332-10040i1HZ..HZJ75..SA¥1,160199305-199911

L=400(*H,L=340)

main95332-10040i1HZ..HZJ7#¥1,160199001-199208

L=400(*H,L=320)

main95332-10040i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥1,160199305-199908

L=400(*H,L=340)

main95332-10040i1HZ..HZJ70..ARL¥1,160199305-199501

L=400(*H,L=340)

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23271-17050i1PZ..PZJ7#¥680199001-199208

main90447-12004i1KZT..KZJ7#¥1,190199305-199604

22811STAY, INJECTION PUMP, NO.1

main22811-17010i1PZ..PZJ70,73;1PZ..PZJ75..RHD;1PZ..PZJ75..LHD..CBU¥2,600199011-199208

sub22811-17011¥1,650

main22811-17010i1PZ..PZJ7#¥2,600199001-199011

sub22811-17011¥1,650

main22811-17010i1HZ..HZJ7#¥2,600199001-199305

sub22811-17011¥1,650

main22811-17010i1PZ..PZJ7#¥2,600199208-199305

sub22811-17011¥1,650

main22811-17010i1PZ..PZJ7#¥2,600199305-199501

sub22811-17011¥1,650

main22811-17010i1HZ..HZJ75;1HZ..HZJ70..GEN¥2,600199305-199505

sub22811-17011¥1,650

main22811-17011i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥1,650199908-200108

main22811-17011i1HZ..HZJ78..STD..ARL¥1,650199908-200207

main22811-17011i1HZ..HZJ79..ARL..IV;1HZ..HZJ71,78,79..GCC,GEN¥1,650199908-200701

main22811-17011i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥1,650199505-200007

main22811-17011i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥1,650199505-199908

main22811-17011i1HZ..HZJ75..SA¥1,650199505-199911

main22811-17030i1HZ..HZJ78..LHD¥770200207-200308

W(EGR)

main22811-17030i1HZ..HZJ78,79..ARL¥770200207-200701

W(EGR)

main22811-17030i1HDFTE..HDJ7#¥770200108-200701

main22811-54041i2LT,3L..LJ7#¥860199001-199305

sub22811-54042¥530

main22811-54041i3L..LJ79..RHD..LX¥860199011-199305

MALAYSIA SPEC

sub22811-54042¥530

main22811-54041i3L..LJ7#¥860199305-199604

sub22811-54042¥530

main22811-67010i1KZT..KZJ7#¥2,190199305-199604

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-17010i1HZ..HZJ75;1HZ..HZJ70..GEN¥1,880199305-199805

main23701-17010i1HZ..HZJ7#¥1,880199001-199305

main23701-17010i1HZ..HZJ70..ARL¥1,880199305-199501

main23701-17040i1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV¥1,180199908-200701

main23701-17040i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥1,180199908-200108

main23701-17040i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥1,180199805-200007

main23701-17040i1HZ..HZJ75..SA¥1,180199805-199911

main23701-17040i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥1,180199805-199908

main23701-17080i1HDFTE..HDJ7#¥3,430200108-200701

main23701-18010i1PZ..PZJ7#¥1,670199305-199501

main23701-18010i1PZ..PZJ7#¥1,670199001-199305

main23701-54140i3L..LJ7#¥1,710199305-199604

main23701-54140i2LT,3L..LJ7#¥1,710199001-199305

main23701-67020i1KZT..KZJ7#¥1,670199305-199507

sub23701-67021¥1,680

main23701-67021i1KZT..KZJ7#¥1,680199507-199604

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-17010i1HZ..HZJ75;1HZ..HZJ70..GEN¥1,880199305-199805

main23702-17010i1HZ..HZJ7#¥1,880199001-199305

main23702-17010i1HZ..HZJ70..ARL¥1,880199305-199501

main23702-17040i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥1,180199805-199908

main23702-17040i1HZ..HZJ75..SA¥1,180199805-199911

main23702-17040i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥1,180199805-200007

main23702-17040i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥1,180199908-200108

main23702-17040i1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV¥1,180199908-200701

main23702-17080i1HDFTE..HDJ7#¥3,430200108-200701

main23702-18010i1PZ..PZJ7#¥1,480199001-199305

main23702-18010i1PZ..PZJ7#¥1,480199305-199501

main23702-54140i2LT,3L..LJ7#¥1,710199001-199305

main23702-54140i3L..LJ7#¥1,710199305-199604

main23702-67020i1KZT..KZJ7#¥1,680199305-199604

sub23702-67021¥1,680

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-17010i1HZ..HZJ7#¥1,880199001-199305

main23703-17010i1HZ..HZJ75;1HZ..HZJ70..GEN¥1,880199305-199805

main23703-17010i1HZ..HZJ70..ARL¥1,880199305-199501

main23703-17040i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥1,180199805-199908

main23703-17040i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥1,180199805-200007

main23703-17040i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥1,180199908-200108

main23703-17040i1HZ..HZJ75..SA¥1,180199805-199911

main23703-17040i1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV¥1,180199908-200701

main23703-17080i1HDFTE..HDJ7#¥3,430200108-200701

main23703-18010i1PZ..PZJ7#¥1,480199305-199501

main23703-18010i1PZ..PZJ7#¥1,480199001-199305

main23703-54100i3L..LJ7#¥1,710199305-199604

main23703-54100i2LT,3L..LJ7#¥1,710199001-199305

main23703-67020i1KZT..KZJ7#¥1,670199305-199507

sub23703-67021¥1,670

main23703-67021i1KZT..KZJ7#¥1,670199507-199604

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-17010i1HZ..HZJ75;1HZ..HZJ70..GEN¥1,880199305-199805

main23704-17010i1HZ..HZJ7#¥1,880199001-199305

main23704-17010i1HZ..HZJ70..ARL¥1,880199305-199501

main23704-17040i1HZ..HZJ75..SA¥1,180199805-199911

main23704-17040i1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV¥1,180199908-200701

main23704-17040i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥1,180199908-200108

main23704-17040i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥1,180199805-200007

main23704-17040i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥1,180199805-199908

main23704-17080i1HDFTE..HDJ7#¥3,430200108-200701

main23704-18010i1PZ..PZJ7#¥1,480199305-199501

main23704-18010i1PZ..PZJ7#¥1,480199001-199305

main23704-54100i3L..LJ7#¥1,710199305-199604

main23704-54100i2LT,3L..LJ7#¥1,710199001-199305

main23704-67020i1KZT..KZJ7#¥1,680199305-199604

23705PIPE SUB-ASSY, INJECTION, NO.5

main23705-17010i1HZ..HZJ75;1HZ..HZJ70..GEN¥1,880199305-199805

main23705-17010i1HZ..HZJ7#¥1,880199001-199305

main23705-17010i1HZ..HZJ70..ARL¥1,880199305-199501

main23705-17040i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥1,180199908-200108

main23705-17040i1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV¥1,180199908-200701

main23705-17040i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥1,180199805-199908

main23705-17040i1HZ..HZJ75..SA¥1,180199805-199911

main23705-17040i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥1,180199805-200007

main23705-17080i1HDFTE..HDJ7#¥3,430200108-200701

main23705-18010i1PZ..PZJ7#¥1,480199001-199305

main23705-18010i1PZ..PZJ7#¥1,480199305-199501

23706PIPE SUB-ASSY, INJECTION, NO.6

main23706-17010i1HZ..HZJ7#¥1,880199001-199305

main23706-17010i1HZ..HZJ70..ARL¥1,880199305-199501

main23706-17010i1HZ..HZJ75;1HZ..HZJ70..GEN¥1,880199305-199805

main23706-17040i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥1,180199805-199908

main23706-17040i1HZ..HZJ75..SA¥1,180199805-199911

main23706-17040i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥1,180199805-200007

main23706-17040i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥1,180199908-200108

main23706-17040i1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV¥1,180199908-200701

main23706-17080i1HDFTE..HDJ7#¥3,430200108-200701

23741CLAMP, INJECTION PIPE, NO.1

main23741-17010i1HZ..HZJ7#¥240199001-199305

NO.1

main23741-17010i1HZ..HZJ75..SA¥240199305-199911

NO.1

main23741-17010i1PZ..PZJ7#¥240199305-199501

NO.1

main23741-17010i1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV¥240199908-200701

NO.1

main23741-17010i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥240199908-200108

NO.1

main23741-17010i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥240199305-200007

NO.1

main23741-17010i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥240199305-199908

NO.1

main23741-17020i1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV¥530199908-200701

NO.2

main23741-17020i1PZ..PZJ7#¥530199001-199305

NO.2

main23741-17020i1PZ..PZJ7#¥530199305-199501

NO.2

main23741-17020i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥530199305-199908

NO.2

main23741-17020i1HZ..HZJ75..SA¥530199305-199911

NO.2

main23741-17020i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥530199305-200007

NO.2

main23741-17020i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥530199908-200108

NO.2

main23741-17030i1PZ..PZJ7#¥350199001-199305

NO.3

main23741-17030i1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV¥350199908-200701

NO.3

main23741-17030i1HZ..HZJ70..ARL¥350199305-199501

NO.3

main23741-17030i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥350199908-200108

NO.3

main23741-17030i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥350199305-199908

NO.3

main23741-17030i1HZ..HZJ75..SA¥350199305-199911

NO.3

main23741-17030i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥350199305-200007

NO.3

main23741-17051i1HDFTE..HDJ7#¥1,190200108-200701

main23741-54010i3L..LJ7#¥1,330199305-199604

NO.1

main23741-54010i2LT,3L..LJ7#¥1,330199001-199305

NO.1

main23741-56010i2LT,3L..LJ7#¥450199001-199305

NO.2

main23741-56010i3L..LJ7#¥450199305-199604

NO.2

main23741-64030i1KZT..KZJ7#¥550199305-199604

23742CLAMP, INJECTION PIPE, NO.2

main23742-17010i1PZ..PZJ7#¥340199001-199305

NO.1

main23742-17010i1HZ..HZJ75..SA¥340199305-199911

NO.1

main23742-17010i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥340199305-199908

NO.1

main23742-17010i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥340199305-200007

NO.1

main23742-17010i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥340199908-200108

NO.1

main23742-17010i1HZ..HZJ70..ARL¥340199305-199501

NO.1

main23742-17010i1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV¥340199908-200701

NO.1

main23742-17020i1HZ..HZJ70..ARL¥700199305-199501

NO.2

main23742-17020i1PZ..PZJ7#¥700199001-199305

NO.2

main23742-17020i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥700199305-199908

NO.2

main23742-17020i1HZ..HZJ75..SA¥700199305-199911

NO.2

main23742-17020i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥700199305-200007

NO.2

main23742-17020i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥700199908-200108

NO.2

main23742-17020i1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV¥700199908-200701

NO.2

main23742-17030i1HDFTE..HDJ7#¥1,480200108-200701

main23742-54010i2LT,3L..LJ7#¥1,330199001-199305

main23742-54010i3L..LJ7#¥1,330199305-199604

main23742-67010i1KZT..KZJ7#¥380199305-199604

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-17010i1HZ..HZJ75..RHD..GEN..CBU;1HZ..HZJ75..LHD..PIC..GEN¥1,300199208-199305

W(HIGH ALTITUDE COMPENSATOR)

main23811-17010i1PZ..PZJ7#¥1,300199001-199208

main23811-17020i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥4,930199305-200007

main23811-17020i1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV¥4,930199908-200701

main23811-17020i1PZ..PZJ7#¥4,930199208-199305

main23811-17020i1PZ..PZJ7#¥4,930199305-199501

main23811-17020i1HZ..HZJ75..SA¥4,930199305-199911

main23811-17020i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥4,930199908-200108

main23811-17020i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥4,930199305-199908

main23811-17080i1HDFTE..HDJ7#¥2,690200108-200701

main23811-54150i2LT,3L..LJ7#¥2,700199001-199108

sub23811-54151¥2,690

main23811-54151i2LT,3L..LJ7#¥2,690199108-199305

main23811-54151i3L..LJ7#¥2,690199305-199604

main23811-67020i1KZT..KZJ7#¥2,110199305-199604

23849SUPPORT, FUEL

main23849-17010i1PZ..PZJ7#¥220199208-199305

main23849-17010i1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV¥220199908-200701

main23849-17010i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥220199908-200108

main23849-17010i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥220199305-200007

main23849-17010i1HZ..HZJ75..SA¥220199305-199911

main23849-17010i1PZ..PZJ7#¥220199305-199501

main23849-17010i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥220199305-199908

9011910630

main90119-10630¥110

9012606008

main90126-06008¥130

9017906080

main90179-06080¥80

9017908022

main90179-08022¥220

9030149003

main90301-49003¥170

9046400265

main90464-00265¥320

9046400299

main90464-00299¥360

9046400569

main90464-00569¥300

9046400774

main90464-00774¥310

9151261230

main91512-61230¥260

9151281230

main91512-81230¥260

9164281230

main91642-81230¥160

91651B0814

main91651-B0814¥120

9613231000

main96132-31000¥190

9613241500

main96132-41500¥90

9613251300

main96132-51300¥120

9613541400

main96135-41400¥130

31 parts on this diagram · 5 diagrams in section
