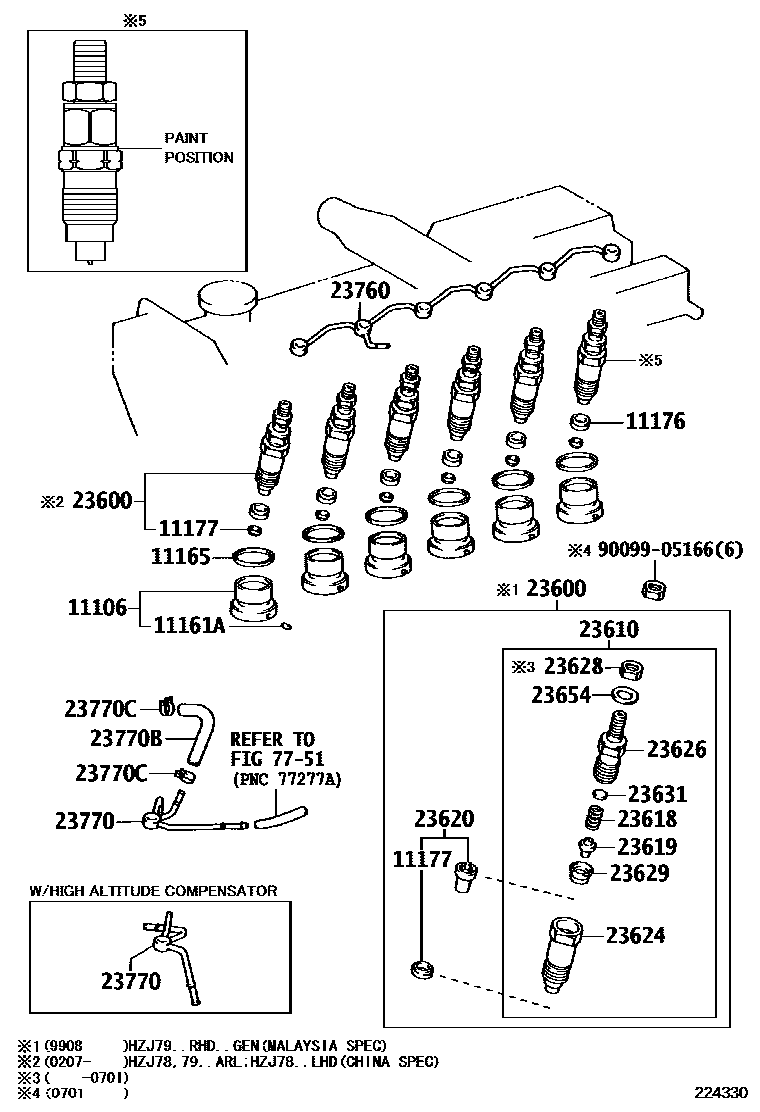

Toyota LAND CRUISER — INJECTION NOZZLE
11106CHAMBER SUB-ASSY, COMBUSTION
11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)
main90250-02046i1HZ..HZJ75..RHD;1HZ..HZJ71,78,79;1HZ..HZJ70,73..ARL;1HZ..HZJ75..LHD..CBU¥110199001-200701
11165SHIM(FOR COMBUSTION CHAMBER)
T=0.03
11176SEAT, INJECTION NOZZLE
main11176-64010i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥250199001-200701
11177GASKET, INJECTION NOZZLE SEAT
23600HOLDER & NOZZLE SET, NOZZLE
RING COLOR = GREEN
PAPUA NEW GUINEA SPEC
main23600-19075i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥10,500199805-200207
W(HIGH ALTITUDE COMPENSATOR)
RING COLOR = RED
MALAYSIA SPEC
23610HOLDER ASSY, NOZZLE
23618SPRING, NOZZLE HOLDER PRESSURE
NO.1
NO.2
23619PIN, NOZZLE HOLDER PRESSURE
23620NOZZLE ASSY
PAPUA NEW GUINEA SPEC
W(HIGH ALTITUDE COMPENSATOR)
MALAYSIA SPEC
W(*HAC)
23626BODY SUB-ASSY, NOZZLE
23628NUT(FOR RING PACKING SETTING)
23629PIECE, DISTANCE(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
T=1.28
T=0.9
T=0.975
T=1.05
T=1.125
T=1.2
T=1.275
T=1.35
T=1.425
T=1.5
T=1.575(DA=6.2)
T=0.85
T=0.875
T=0.925
T=0.95
T=1.0
T=1.025
T=1.075
T=1.1
T=1.15
T=1.175
T=1.225
T=1.25
T=1.3
T=1.325
T=1.375
T=1.4
T=1.45
T=1.475
T=1.525
T=1.65
T=1.725(DA=6.2)
T=1.8
T=1.875
T=1.95
T=2.0
T=2.1
T=2.175
T=1.6
T=1.625
T=0.900
T=0.925
T=0.950
T=0.975
T=1.000
T=1.025
main23631-64016i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199001-200701
T=1.050
main23631-64017i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199001-200701
T=1.075
T=1.100
T=1.125
T=1.675
T=1.7
T=1.75
T=1.775
T=1.825
T=1.85
T=1.9
T=1.925
T=1.975
T=2.05
T=2.075
T=2.125
T=2.15
T=2.2
T=2.025
T=1.150
T=1.175
T=1.200
main23632-64013i1HZ..HZJ75..RHD;1HZ..HZJ70,73..ARL;1HZ..HZJ79..GEN..IV;1HZ..HZJ75..LHD..CBU;1HZ..HZJ71,78,79..CBU199001-200701
T=1.225
T=1.250
T=1.275
T=1.300
main23632-64017i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199001-200701
T=1.325
T=1.350
T=1.375
T=1.400
T=1.425
T=1.450
T=1.475
main23633-64014i1HZ..HZJ75..RHD;1HZ..HZJ70,73..ARL;1HZ..HZJ79..GEN..IV;1HZ..HZJ75..LHD..CBU;1HZ..HZJ71,78,79..CBU199001-200701
T=1.500
T=1.525
T=1.550
T=1.575
T=1.600
T=1.625
T=1.650
T=1.675
T=1.700
T=1.725
T=1.750
main23634-64015i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199001-200701
T=1.775
T=1.800
T=1.825
T=1.850
T=1.875
T=1.900
T=1.925
main23635-64012i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199001-200701
T=1.950
23654WASHER(FOR RING PACKING)
23760PIPE ASSY, NOZZLE LEAKAGE
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
main23762-17011i1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ7#..HT..STD..GEN;1HZ..HZJ75..LHD..PIC..GEN..CBU¥1,520199903-200701
W(HIGH ALTITUDE COMPENSATOR)
W(HIGH ALTITUDE COMPENSATOR)
SOUTH AFRICA SPEC
W(HIGH ALTITUDE COMPENSATOR)
23770BHOSE, FUEL
L=100(*H,L=80)
L=200(*H,L=120),ID=4
main95333-04020i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥510199001-200701
L=200(*H,L=140)
23770CCLAMP OR CLIP(FOR FUEL HOSE SET)
7751
21 parts on this diagram · 5 diagrams in section
