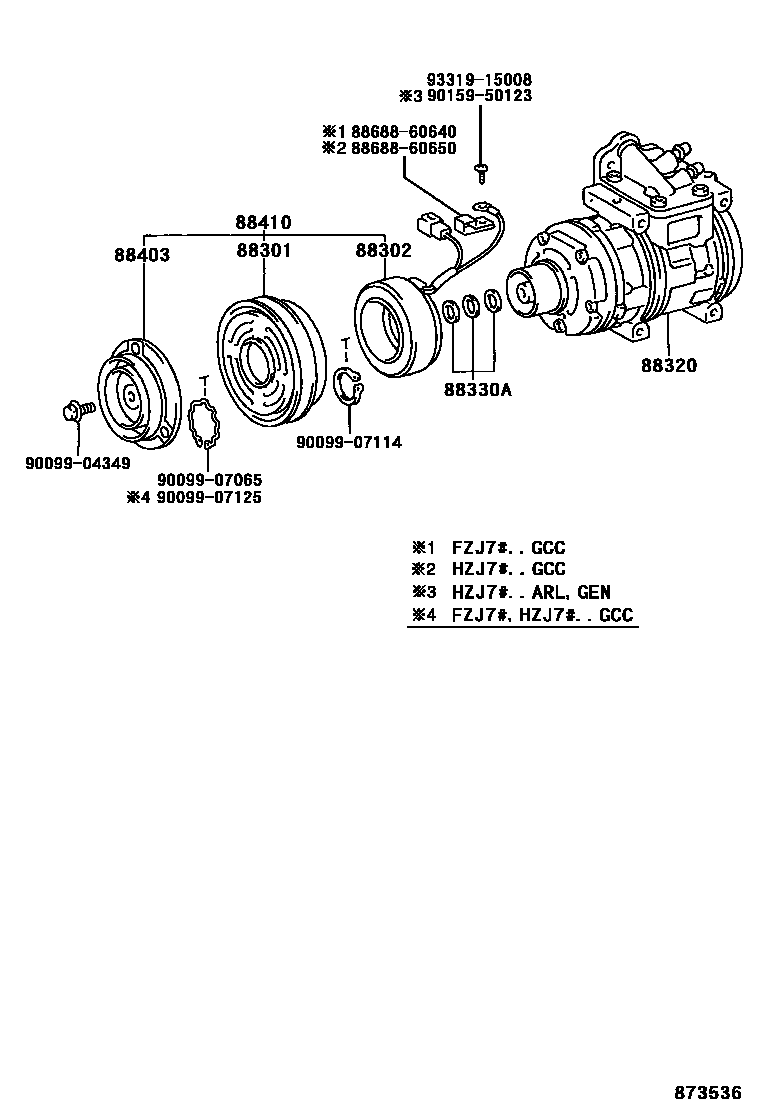

Toyota LAND CRUISER — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1MAKER OPTION 0004 1 0005 1MAKER OPTION 0006 1DEALER OPTION 0007 1 0008 1 0009 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22070iFZJ79..GEN..IV;FZJ71..LHD..GEN199201-200808

main88412-27010iFJ7#,LJ7#..ARL,GCC,GEN199001-199305

sub88412-30430

main88412-30430iLJ79..STD;KZJ7#,LJ72;LJ79..LHD..LX199305-199604

sub88412-2A060

main88412-35030iHZJ70,73..ARL;HZJ75..LHD..CBU;HZJ75..RHD..(ARL,GEN);HZJ71,78,79,PZJ7#,RJ7#199001-200701

main88412-6A020iHDJ7#200108-200608

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-20200iHZJ75,79..GCC199001-200701

main88411-22310iFZJ7#..GCC;HZJ70..GEN;HZJ75..ARL,GEN199305-199708

sub88411-2A030

main88411-26040iFZJ73199305-200808

main88411-26050iFZJ7#..ARL,GEN199201-199305

sub88411-26040

main88411-2A030iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199708-200701

main88411-2B080iHZJ7#,PZJ7#,RJ7#..ARL,GEN199108-199305

main88411-30540iFJ7#..GCC199109-199201

sub88411-3A010

main88411-35020iFJ7#..GCC199001-199109

sub88411-30540

main88411-35030iHZJ7#,PZJ7#,RJ7#..ARL,GEN199001-199305

sub88411-2B080

main88411-35050iRJ77..GCC199004-199604

main88411-35080iLJ7#199001-199305

sub88411-2A030

main88411-60060iHZJ75,PZJ70..(PIC,SOT)..4F..CBU199001-199305

BANGLADESH SPEC

sub88411-60090

main88411-60070iFJ70,73;FJ75..ARL;FJ75..GEN..CBU199001-199208

main88411-60090iPZJ70..SOT199305-200007

BANGLADESH SPEC

88320COMPRESSOR ASSY, COOLER

main88320-60340iHZJ7#,PZJ7#..ARL,GEN199001-199305

sub88320-35H91

main88320-60380iFJ7#..ARL,GEN199001-199208

sub88320-35H91

main88320-60390iFJ7#..GCC199001-199201

sub88320-35H91

main88320-60400iFJ75..HT199001-199008

*ODAC

sub88320-60401

main88320-60401iFJ75..HT199008-199201

*ODAC

main88320-60410iHZJ75..GCC199001-199305

sub88320-35H91

main88320-60420iLJ7#199001-199305

sub88320-35H91

main88320-60430iRJ7#..ARL,GEN199001-199305

sub88320-35H91

main88320-60440iRJ77..GCC199004-199305

sub88320-35H91

main88320-60470iFZJ7#..ARL,GEN199201-199305

sub88320-60H90

main88320-60480iFZJ7#..GCC199201-199305

sub88320-60H90

main88320-60500iKZJ7#199305-199604

sub88320-35H92¥0

main88320-60510iLJ7#..STD;LJ79..LHD..LX199305-199604

sub88320-35H92¥0

main88320-60520iRJ7#..HT..GEN199305-199604

sub88320-35H92¥0

main88320-60530iRJ77..GCC199305-199604

sub88320-35H92¥0

main88320-60540iFZJ73199305-200808

main88320-60550iFZJ7#..GCC199305-200701

main88320-60560iHZJ78,79..ARL199305-200701

main88320-60570iHZJ75..GCC199305-200701

main88320-60700iHDJ7#200108-200701

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iFJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN199001-200808

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iFJ75..ARL;FJ75..GEN..CBU;FJ70,73,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN199001-199305

main88403-30290iHZJ78..ARL,GEN;FZJ71,74,78,79,HDJ7#,HZJ71,79199305-200808

88410CLUTCH ASSY, MAGNET

main88410-22270iFZJ7#..GCC¥36,900199201-199305

main88410-22480iLJ79..STD;KZJ7#,LJ72;LJ79..LHD..LX¥36,900199305-199604

main88410-26110iFZJ73,75..(PIC,SOT)..EFI¥36,900199305-200808

main88410-35040iFJ7#..GCC¥37,100199001-199201

main88410-35070iRJ77..GCC¥36,900199004-199305

main88410-35120iHZJ7#,PZJ7#,RJ7#..ARL,GEN¥36,900199001-199305

main88410-60190iFJ75..HT..(GCC,GEN)¥37,200199001-199201

*ODAC

sub88410-35160¥37,400

main88410-60220iFJ7#..ARL,GEN¥37,100199001-199208

sub88410-35310¥36,800

main88410-60230iHZJ75,PZJ70..(PIC,SOT)..4F..CBU¥37,100199001-199305

BANGLADESH SPEC

sub88410-60340¥36,700

main88410-60240iHZJ75..GCC¥37,100199001-199305

sub88410-60350¥36,800

main88410-60250iLJ7#¥37,100199001-199305

sub88410-22480¥36,900

main88410-60290iFZJ7#..ARL,GEN¥37,100199201-199305

main88410-60310iHZJ75..ARL;HZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU¥36,700199305-200701

main88410-60330iFZJ71,74,78,79..GCC¥36,900199305-200701

main88410-60340iPZJ70..SOT¥36,700199305-200007

BANGLADESH SPEC

main88410-60350iHZJ75..GCC¥36,800199305-200701

main88410-60360iRJ77..GCC¥36,700199305-199604

main88410-6A010iHDJ7#¥41,300200108-200701

8868860640BRACKET, COOLER DIAPHRAGM

main88688-60640

8868860650BRACKET, COOLER DIAPHRAGM

main88688-60650

9009904349

main90099-04349

9009907065

main90099-07065¥90

9009907114

main90099-07114

9009907125

main90099-07125¥250

9015950123

main90159-50123

9331915008

main93319-15008¥170

14 parts on this diagram · 9 diagrams in section
