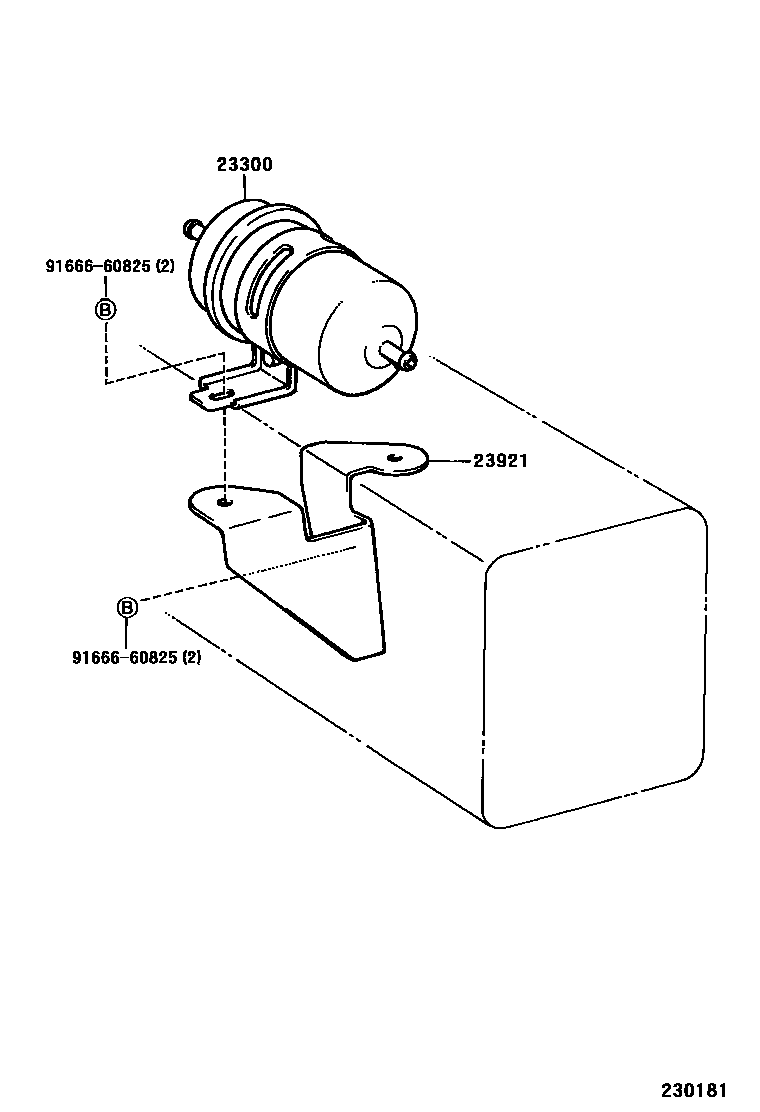

Toyota LAND CRUISER — FUEL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1W(PRE FILTER) 0006 1W(PRE FILTER) 0008 1 0009 1W(PRE FILTER) 0010 1 0011 1 0012 1 0014 1W(PRE FILTER) 0016 1 0017 1 0018 1W(PRE FILTER) 0019 1

23300FILTER ASSY, FUEL

main23300-35060i22R..RJ7#¥1,170199001-199604

main23300-61060i3F..FJ7#¥4,200199001-199208

main23300-66020i1FZF..FZJ70,73,75¥1,400199201-199911

23921SUPPORT, FUEL FILTER

main23904-17040i1HZ..HZJ75..ARL;1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥2,170199001-200007

W(PRE FILTER)

sub23904-17050¥2,170

main23904-17050i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥2,170199908-200701

W(PRE FILTER)

main23921-17030i1HZ..HZJ71,78,79..LHD¥2,950199001-200701

main23921-35080i22R..RJ7#¥1,010199001-199604

main23921-54160i1KZT..KZJ7#..LHD¥3,400199001-199604

main23921-54320i3L..LJ7#..RHD¥2,410199001-199604

main23921-58010i1HZ..HZJ75..ARL;1HZ..HZJ7#..RHD..HT..GEN;1HZ..HZJ75..RHD..GEN..IV¥2,950199001-200701

main23921-61041i3F..FJ7#¥1,670199001-199208

9166660825

main91666-60825¥210

3 parts on this diagram · 16 diagrams in section
