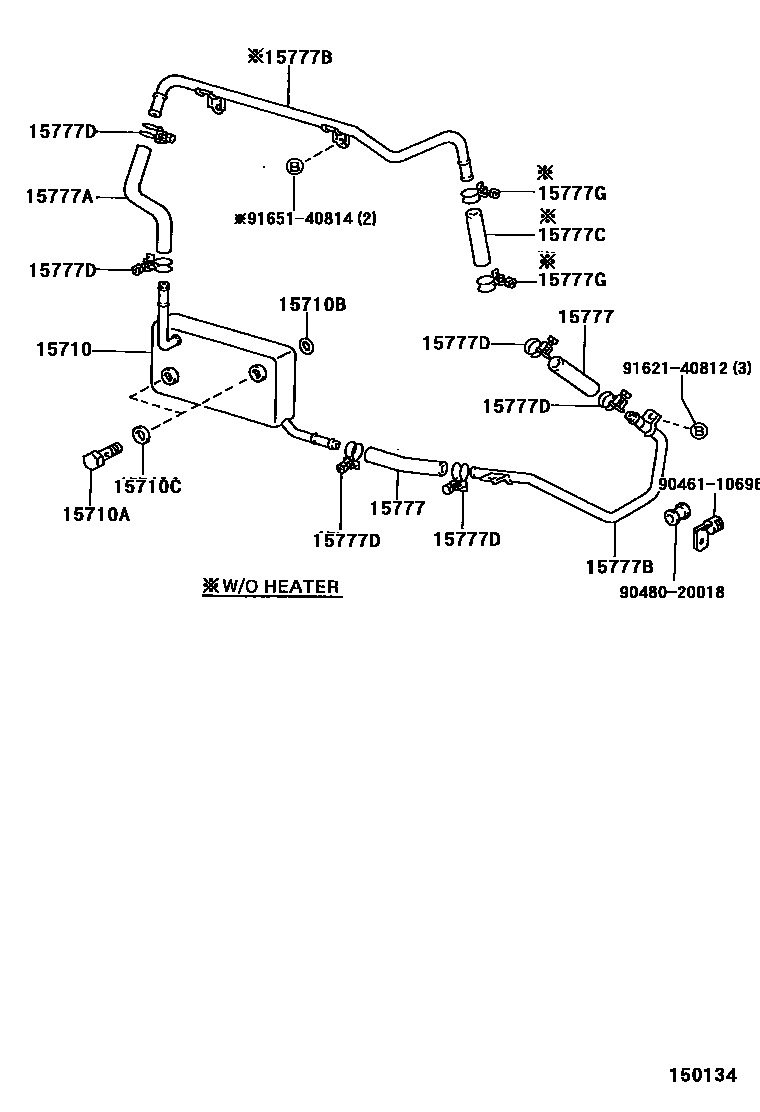

Toyota LAND CRUISER — ENGINE OIL COOLER

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1

15710COOLER ASSY, OIL

main15710-17010i1PZ..PZJ7#¥46,000199001-199501

sub15710-17011¥29,000

main15710-17020i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU¥49,100199001-200104

sub15710-17021¥30,900

main15710-17021i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU¥30,900200104-200701

main15710-54030i1FZFE..FZJ71,74,78,79¥42,400199201-200302

main15710-54050i3L..LJ7#¥29,600199001-199604

main15710-61010i3F..FJ75..LHD..IV;3F..FJ70,75..(HT,SOT)..5F..GEN¥58,000199001-199208

W(OIL COOLER)

main15710-61010i3F..FJ70,75..GEN..CBU¥58,000199201-199208

VENEZUELA SPEC

main15710-66020i1FZFE..FZJ71,74,78,79¥42,700200302-200808

main15710-67040i1KZT..KZJ7#¥49,100199305-199604

15710ABOLT, UNION(FOR OIL COOLER)

main90401-18083i3F..FJ70,75..GEN..CBU¥730199201-199208

VENEZUELA SPEC

main90401-18083i3F..FJ73..LHD;3F..FJ70..4F,4FC;3F..FJ70,75..GCC;3F..FJ75..RHD..GEN;3F..FJ75..LHD..HT..4F;3F..FJ75..LHD..PIC..GEN..CBU¥730199001-199208

VENEZUELA SPEC & W(OIL COOLER)

15710BRING, O(FOR OIL COOLER)

main90301-21176i3F..FJ73..LHD;3F..FJ70..4F,4FC;3F..FJ70,75..GCC;3F..FJ75..RHD..GEN;3F..FJ75..LHD..HT..4F;3F..FJ75..LHD..PIC..GEN..CBU¥400199001-199208

VENEZUELA SPEC & W(OIL COOLER)

main90301-21176i3F..FJ75..GEN..IV¥400199201-199208

VENEZUELA SPEC

15710CGASKET(FOR OIL COOLER)

main15134-17010i1FZFE..FZJ71,74,78,79¥300199201-200808

main15785-54010i2LT,3L..LJ7#¥360199001-199604

main90430-18012i3F..FJ75..LHD..IV;3F..FJ70,75..(HT,SOT)..5F..GEN¥140199001-199105

W(OIL COOLER)

main90430-18027i3F..FJ75..GEN..IV¥120199105-199208

W(OIL COOLER)

main90430-18027i3F..FJ70,75..GEN..CBU¥120199201-199208

VENEZUELA SPEC

15777HOSE, OIL COOLER

main90445-24039i3F..FJ73..LHD;3F..FJ70..4F,4FC;3F..FJ70,75..GCC;3F..FJ75..RHD..GEN;3F..FJ75..LHD..HT..4F;3F..FJ75..LHD..PIC..GEN..CBU¥670199002-199201

L=105,PIPE TO WATER PUMP

main90445-24039i3F..FJ70,75..GEN..CBU¥670199002-199208

L=105,VENEZUELA SPEC & W(OIL COOLER),PIPE TO WATER PUMP

main90445-24039i3F..FJ70,75..GEN..CBU¥670199201-199208

L=105,VENEZUELA SPEC,PIPE TO WATER PUMP

main99556-30210i3F..FJ70,75..GEN..CBU¥470199001-199208

*H,L=210,VENEZUELA SPEC & W(OIL COOLER),PIPE TO OIL COOLER

sub99556-30300¥640

main99556-30210i3F..FJ73..LHD;3F..FJ70..4F,4FC;3F..FJ70,75..GCC;3F..FJ75..RHD..GEN;3F..FJ75..LHD..HT..4F;3F..FJ75..LHD..PIC..GEN..CBU¥470199001-199002

*H,L=210,PIPE TO WATER PUMP

sub99556-30300¥640

main99556-30210i3F..FJ73..LHD;3F..FJ70..4F,4FC;3F..FJ70,75..GCC;3F..FJ75..RHD..GEN;3F..FJ75..LHD..HT..4F;3F..FJ75..LHD..PIC..GEN..CBU¥470199001-199002

*H,L=210,VENEZUELA SPEC & W(OIL COOLER),PIPE TO WATER PUMP

sub99556-30300¥640

main99556-30210i3F..FJ73..LHD;3F..FJ70..4F,4FC;3F..FJ70,75..GCC;3F..FJ75..RHD..GEN;3F..FJ75..LHD..HT..4F;3F..FJ75..LHD..PIC..GEN..CBU¥470199001-199201

*H,L=210,PIPE TO OIL COOLER

sub99556-30300¥640

main99556-30210i3F..FJ75..GEN..IV¥470199201-199208

*H,L=210,VENEZUELA SPEC,PIPE TO OIL COOLER

sub99556-30300¥640

15777AHOSE, OIL COOLER

main15777-61030i3F..FJ73..LHD;3F..FJ70..4F,4FC;3F..FJ70,75..GCC;3F..FJ75..RHD..GEN;3F..FJ75..LHD..HT..4F;3F..FJ75..LHD..PIC..GEN..CBU¥1,670199001-199208

VENEZUELA SPEC & W(OIL COOLER)

main15777-61030i3F..FJ75..GEN..IV¥1,670199201-199208

VENEZUELA SPEC

15777BPIPE, OIL COOLER

main15770-61030i3F..FJ75..GEN..IV¥6,200199201-199208

VENEZUELA SPEC,LOWER

main15770-61030i3F..FJ70,75..GEN..CBU¥6,200199001-199208

W(OIL COOLER),LOWER

main15772-61010i3F..FJ7#..GCC,GEN¥6,200199001-199208

W(OIL COOLER),UPR

15777CHOSE, OIL COOLER

main99556-30100i3F..FJ73..LHD;3F..FJ70..4F,4FC;3F..FJ70,75..GCC;3F..FJ75..RHD..GEN;3F..FJ75..LHD..HT..4F;3F..FJ75..LHD..PIC..GEN..CBU¥220199001-199208

VENEZUELA SPEC & W(OIL COOLER)

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main96112-10250i3F..FJ75..GEN..IV¥240199001-199208

VENEZUELA SPEC & W(OIL COOLER)

main96112-10250i3F..FJ75..GEN..IV¥240199201-199208

VENEZUELA SPEC

15777GCLAMP OR CRIP, HOSE

main96112-10250i3F..FJ73..LHD;3F..FJ70..4F,4FC;3F..FJ70,75..GCC;3F..FJ75..RHD..GEN;3F..FJ75..LHD..HT..4F;3F..FJ75..LHD..PIC..GEN..CBU¥240199001-199208

VENEZUELA SPEC & W(OIL COOLER)

9046110696

main90461-10696¥330

9048020018

main90480-20018¥190

9162140812

main91621-40812¥100

9165140814

main91651-40814¥180

14 parts on this diagram · 6 diagrams in section
