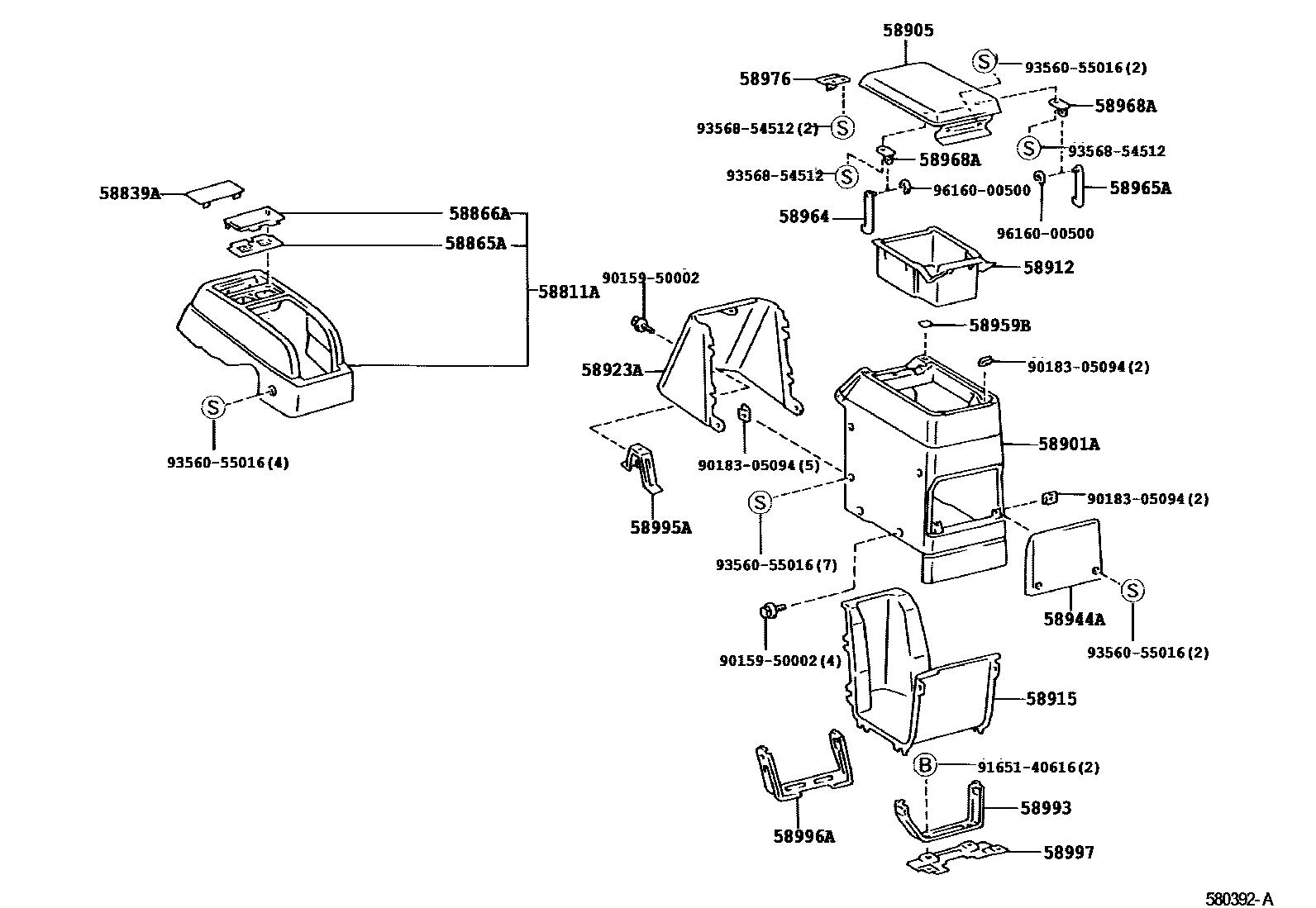

Toyota LAND CRUISER — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

58811ABOX, CONSOLE, FRONT

main58810-90K00-13iFJ70,73..4FC199001-199201

BLUISH GRAY,TRIM1#

sub58810-90K00¥13,400

main58810-90K00-16iFJ70,73..4FC199001-199201

SABLE,TRIM4#

sub58810-90K00¥13,400

main58810-90K01-13iHZJ73..4FC199001-199108

BLUISH GRAY,TRIM1#

sub58810-90K01¥11,800

main58810-90K01-16iHZJ73..4FC199001-199108

SABLE,TRIM4#

sub58810-90K01¥11,800

main58811-60220-B0iHDJ7#..LX;FZJ79,HZJ79..GCC;FZJ79,HZJ79..RHD..CBU200209-200701

BLUISH GRAY,TRIM1#

main58811-60220-E0iHDJ7#..LX;FZJ79,HZJ79..GCC;FZJ79,HZJ79..RHD..CBU200209-200701

OAK,TRIM4#

58839ACOVER, CONSOLE BOX HOLE

main58839-90K00iFJ70,73,HZJ73..4FC¥910199001-199201

58865ALENS, FRONT CONSOLE BOX, NO.1

main58865-90K00iFJ70,73,HZJ73..4FC¥580199001-199201

58866ALENS, FRONT CONSOLE BOX, NO.2

main58866-90K00iFJ70,73,HZJ73..4FC¥360199001-199201

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-60110-B1iFZJ79..GEN..IV199908-200808

LT.GRAY,TRIM1#,4#

main58911-60160-B0iHDJ7#..LX;FZJ79,HZJ79..GCC;FZJ79,HZJ79..RHD..CBU200209-200701

BLUISH GRAY,TRIM1#,NO.2

main58911-60160-E0iHDJ7#..LX;FZJ79,HZJ79..GCC;FZJ79,HZJ79..RHD..CBU200209-200701

OAK,TRIM4#,NO.2

main58911-90K00-13iFZJ70..LX..EFI199001-200405

BLUISH GRAY,TRIM1#

sub58911-90K00¥17,400

main58911-90K00-16iFZJ70,KZJ7#,LJ7#..GEN;FZJ73,HZJ70,RJ7#..HT..(GCC,GEN)199001-199501

SABLE,TRIM4#

sub58911-90K00¥17,400

main58911-90K00-B0iFZJ71..LHD..STD..GEN199908-200808

BLUISH GRAY,TRIM1#

sub58911-90K00¥17,400

main58911-90K00-E0iFZJ71..LX199501-200808

OAK,TRIM4#

sub58911-90K00¥17,400

main58911-90K01-13iFZJ70,73,HZJ70..HT..GEN199001-199908

W(REAR HEATER),BLUISH GRAY,TRIM1#

sub58911-90K01¥17,400

main58911-90K01-16iPZJ70..HT199001-199501

W(REAR HEATER),SABLE,TRIM4#

sub58911-90K01¥17,400

main58911-90K01-B0iFZJ71..LHD..GEN199908-200802

W(REAR HEATER),BLUISH GRAY,TRIM1#

sub58911-90K01¥17,400

main58911-90K01-E0iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..GEN199501-200802

W(REAR HEATER),OAK,TRIM4#

sub58911-90K01¥17,400

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58951-90K00-13iFZJ73..EFI199001-200405

BLUISH GRAY,TRIM1#

sub58951-90K00¥4,700

main58951-90K00-16iPZJ70..HT199001-199501

SABLE,TRIM4#

sub58951-90K00¥4,700

main58951-90K00-B0iFZJ71..LX199908-200808

BLUISH GRAY,TRIM1#

sub58951-90K00¥4,700

main58951-90K00-E0iFZJ71..RHD;FZJ74,HZJ71..HT199501-200808

OAK,TRIM4#

sub58951-90K00¥4,700

58912BOX, REAR CONSOLE, NO.2

main58912-90K00-13iKZJ7#,LJ7#,RJ7#199001-200405

BLUISH GRAY,TRIM1#

sub58912-90K00¥1,740

main58912-90K00-16iFJ70..LX..GCC;PZJ70..HT..GEN;FJ70,FZJ70..GEN;FJ73,FZJ73,HZJ73,LJ7#,PZJ73,RJ7#..HT199001-199501

SABLE,TRIM4#

sub58912-90K00¥1,740

main58912-90K00-B0iFZJ74..STD..GEN199908-200808

BLUISH GRAY,TRIM1#

sub58912-90K00¥1,740

main58912-90K00-E0iFZJ74..STD..GEN199501-200808

OAK,TRIM4#

sub58912-90K00¥1,740

58915PANEL, BOX BOTTOM

main58915-90K00iPZJ70..HT¥1,630199001-200808

58923APANEL, CONSOLE REAR END

main58923-90K00-13iKZJ77,LJ7#,RJ77..RHD199001-199908

BLUISH GRAY,TRIM1#

sub58923-90K00¥1,870

main58923-90K00-16iFZJ70,HZJ70,KZJ77,LJ7#,RJ77..RHD..HT..GEN199001-199501

SABLE,TRIM4#

sub58923-90K00¥1,870

main58923-90K00-B0iFZJ71,HZJ71..RHD..HT199908-200701

BLUISH GRAY,TRIM1#

sub58923-90K00¥1,870

main58923-90K00-E0iFZJ71,HZJ71..RHD..HT199501-200701

OAK,TRIM4#

sub58923-90K00¥1,870

main58923-90K01-13iKZJ7#,LJ7#,RJ7#..LHD..HT199001-200405

BLUISH GRAY,TRIM1#

sub58923-90K01¥1,870

main58923-90K01-16iPZJ70..LHD199001-199501

SABLE,TRIM4#

sub58923-90K01¥1,870

main58923-90K01-B0iFZJ71..LX199908-200808

BLUISH GRAY,TRIM1#

sub58923-90K01¥1,870

main58923-90K01-E0iFZJ71..LX199501-200808

OAK,TRIM4#

sub58923-90K01¥1,870

58944ACOVER, CONSOLE, REAR

main58944-90K00-13iFZJ73..LX;FZJ73..STD..GEN..CBR;FZJ70,HZJ70..LHD..GEN199001-199908

BLUISH GRAY,TRIM1#

sub58944-90K00¥940

main58944-90K00-16iPZJ70..RHD..HT199001-199501

SABLE,TRIM4#

sub58944-90K00¥940

main58944-90K00-B0iFZJ74..STD..GEN199908-200808

BLUISH GRAY,TRIM1#

sub58944-90K00¥940

main58944-90K00-E0iFZJ70..LX..EFI199501-200808

OAK,TRIM4#

sub58944-90K00¥940

main58944-90K01-13iFJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..HT..GEN199001-199908

W(REAR HEATER),BLUISH GRAY,TRIM1#

sub58944-90K01¥940

main58944-90K01-16iFJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..HT..GEN199001-199501

W(REAR HEATER),SABLE,TRIM4#

sub58944-90K01¥940

main58944-90K01-B0iFZJ71..LHD..GEN199908-200802

W(REAR HEATER),BLUISH GRAY,TRIM1#

sub58944-90K01¥940

main58944-90K01-E0iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..GEN199501-200802

W(REAR HEATER),OAK,TRIM4#

sub58944-90K01¥940

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010iFZJ71..LHD..STD..GEN¥100199001-200808

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-30030iFJ70..LX..GCC;PZJ70..HT..GEN;FZJ70..GEN..CBR;FJ70,FZJ71..GEN;FJ73,FZJ73,74,HZJ71,73,LJ7#,PZJ73,RJ7#..HT¥390199001-200808

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58964-90K00iFJ70..LX..GCC;PZJ70..HT..GEN;FZJ70..GEN..CBR;FJ70,FZJ71..GEN;FJ73,FZJ73,74,HZJ71,73,LJ7#,PZJ73,RJ7#..HT¥390199001-200808

58968ABRACKET, CONSOLE DOOR STOPPER

main58968-89101iFZJ70..SOT¥490199001-200808

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20010iFJ70..LX..GCC;PZJ70..HT..GEN;FZJ70..GEN..CBR;FJ70,FZJ71..GEN;FJ73,FZJ73,74,HZJ71,73,LJ7#,PZJ73,RJ7#..HT¥1,540199001-200808

sub58908-12080¥970

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-90K00iFJ70..LX..GCC;PZJ70..HT..GEN;FZJ70..GEN..CBR;FJ70,FZJ71..GEN;FJ73,FZJ73,74,HZJ71,73,LJ7#,PZJ73,RJ7#..HT¥720199001-200808

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-90K00iFJ70..LX..GCC;PZJ70..HT..GEN;FZJ70..GEN..CBR;FJ70,FZJ71..GEN;FJ73,FZJ73,74,HZJ71,73,LJ7#,PZJ73,RJ7#..HT¥630199001-200808

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-90K00iFJ70..LX..GCC;PZJ70..HT..GEN;FZJ70..GEN..CBR;FJ70,FZJ71..GEN;FJ73,FZJ73,74,HZJ71,73,LJ7#,PZJ73,RJ7#..HT¥1,130199001-200808

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-90K00iFJ70..LX..GCC;PZJ70..HT..GEN;FZJ70..GEN..CBR;FJ70,FZJ71..GEN;FJ73,FZJ73,74,HZJ71,73,LJ7#,PZJ73,RJ7#..HT¥1,030199001-200808

9015950002

main90159-50002¥70

9018305094

main90183-05094¥90

9165140616

main91651-40616¥60

9356055016

main93560-55016¥70

9356854512

main93568-54512¥70

9616000500

main96160-00500¥100

25 parts on this diagram · 3 diagrams in section
