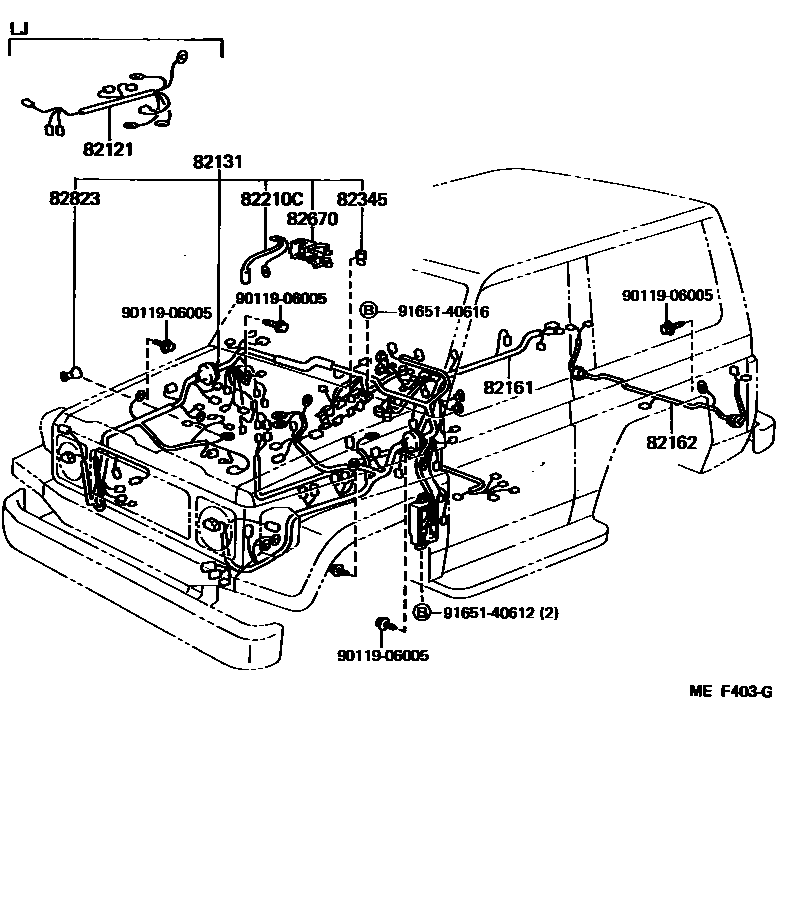

Toyota LAND CRUISER — WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

82121WIRE, ENGINE

main82121-90K01iLJ7#¥5,300198411-198607

main82121-90K03iLJ7#¥5,300198607-198801

main82121-90K05iLJ7#¥9,400198801-199001

main82121-90K06iRJ7#..EFI¥39,200198812-199001

82131WIRE, COWL

main82131-90087iLJ7#..LHD..LX¥154,000198810-199001

AUSTRIA SPEC

main82131-90088iRJ7#..EFI¥135,000198812-199001

main82131-90312iBJ70,73,75..LHD..(LX,STD)¥153,000198708-198808

main82131-90314iBJ75..CBU¥153,000198708-198808

SWEDEN SPEC

main82131-90316iBJ70..RHD¥118,000198708-198808

main82131-90322iBJ71¥143,000198708-199001

main82131-90330iLJ70..RHD..VX¥118,000198801-199001

main82131-90333iLJ7#..LHD¥135,000198801-199001

main82131-90334iLJ73¥143,000198801-199001

NORWAY SPEC

main82131-90335iLJ70..RHD..LX¥118,000198801-199001

main82131-90344iBJ70,73,75..LX,STD¥154,000198808-199001

main82131-90346iBJ75¥127,000198808-199001

SWEDEN SPEC

main82131-90K05iBJ7#198411-198510

main82131-90K16iLJ70198411-198510

main82131-90K20iRJ70198411-198510

main82131-90K29iLJ70198411-198510

NORWAY SPEC

main82131-90K30iBJ73;BJ75..PIC198411-198510

NORWAY SPEC

main82131-90K38iRJ7#198510-198608

main82131-90K44iLJ7#198510-198608

main82131-90K45iLJ70..HT198510-198608

NORWAY SPEC

main82131-90K82iBJ70,73,75..STD198510-198608

main82131-90K83iBJ75198510-198608

SWEDEN SPEC

main82131-90K90iBJ71198510-198608

main82131-90L00iRJ70198602-198608

NORWAY SPEC

main82131-90L04iRJ70¥135,000198608-198708

main82131-90L05iRJ70¥135,000198608-198708

NORWAY SPEC

main82131-90L11iLJ7#..LHD¥135,000198608-198708

main82131-90L12iLJ70..RHD¥143,000198608-198708

NORWAY SPEC

main82131-90L13iLJ70..RHD¥118,000198608-198708

main82131-90L45iBJ70,73,75..LHD..(LX,STD)¥153,000198608-198708

main82131-90L46iBJ75..CBU¥153,000198608-198708

SWEDEN SPEC

main82131-90L48iBJ70..RHD¥118,000198608-198708

main82131-90L54iBJ71¥143,000198608-198708

main82131-90L71iRJ70..CBR¥135,000198708-199001

main82131-90L72iRJ70..CBR¥135,000198708-199001

NORWAY SPEC

main82131-90L78iLJ7#..LHD¥135,000198708-198801

main82131-90L79iLJ70..RHD¥143,000198708-198801

NORWAY SPEC

main82131-90L80iLJ70..RHD¥118,000198708-198801

82161WIRE, FLOOR

main82161-90K03iBJ70,LJ70,RJ70198411-198510

main82161-90K10iBJ75..PIC198411-198510

main82161-90K16iBJ73198411-198510

main82161-90K17iBJ75..HT¥14,600198411-198510

main82161-90K18iBJ70,71,LJ70,RJ70198510-198608

main82161-90K19iBJ70,71,LJ70,RJ70¥35,000198608-198708

W/*RW OR RR HEATER

main82161-90K19iBJ70,71,LJ70,RJ70..HT¥35,000198510-198608

W/SUN ROOF

main82161-90K25iBJ73,LJ73,RJ73¥26,900198510-198708

main82161-90K30iBJ75..HT¥22,900198510-198708

main82161-90K33iBJ75..PIC¥6,200198510-198708

main82161-90K39iBJ70,LJ70,RJ70..STD¥26,900198608-198708

main82161-90K42iBJ70,LJ70,RJ70..STD¥39,200198708-199001

main82161-90K43iBJ70,71,LJ70,RJ70..CBR,DSL,TD¥39,200198708-199001

W/*RW OR RR HEATER

main82161-90K43iBJ70,71,LJ70,RJ70..CBR,DSL,TD¥39,200198708-199001

W/ALTI METER & THERMO METER

main82161-90K47iBJ73,LJ73¥30,300198708-199001

main82161-90K50iBJ75..HT¥30,300198708-199001

main82161-90K53iBJ75..PIC¥25,700198708-199001

main82161-90K56iRJ70..EFI¥39,200198812-199001

main82161-90K57iRJ73¥39,200198812-199001

82162WIRE, FLOOR, NO.2

main82162-90K01iBJ73,LJ70,RJ70198411-198510

12V

main82162-90K03iBJ7#..HT198411-198510

24V

main82162-90K06iBJ75..PIC198411-198510

main82162-90K13iLJ7#,RJ70..LHD¥9,400198510-198708

main82162-90K14iBJ7#..LHD..HT..STD¥9,400198510-198708

main82162-90K21iBJ75..PIC¥25,300198510-198708

main82162-90K31iLJ70..RHD¥9,400198608-198708

main82162-90K32iBJ70..RHD¥9,400198608-198708

main82162-90K39iLJ7#,RJ70..LHD..(CBR,TD)¥16,500198708-199001

main82162-90K40iBJ70,73,75..LHD..HT..STD¥16,500198708-199001

main82162-90K45iLJ70..RHD..LX¥16,500198708-199001

main82162-90K46iBJ70..RHD¥16,500198708-198808

main82162-90K47iBJ75..PIC¥25,700198708-199001

main82162-90K52iLJ70..RHD..VX¥16,500198801-199001

main82162-90K54iRJ7#..EFI¥25,700198812-199001

82210CFUSIBLE LINK

main90982-08115iBJ71¥640198510-199001

L=110,G,INTAKE HEATER

main90982-08206iBJ70,73,75..LX,STD¥780198808-199001

GLOW RESISTER,GLOW RESISTER

main90982-08231iRJ7#..CBR198411-199001

main90982-08232iBJ7#,LJ7#..LX,STD,VX¥610198510-199001

BATTERY,BATTERY

main90982-08233iBJ70,73,75,LJ70¥620198411-198608

main90982-08236iBJ70,73,75..LX,STD¥1,070198808-199001

BATTERY

main90982-08258iRJ7#..EFI¥610198812-199001

82345DIODE

main82345-12050iBJ7#,LJ7#..LX,STD¥790198411-199001

CONNECTOR=2 POLE

main82345-32020iBJ7#,LJ7#,RJ70..LHD..(LX,STD,VX)¥1,030198411-199001

CONNECTOR=3 POLE

82670BLOCK ASSY, JUNCTION, NO.1

main82670-90K00iRJ7#..EFI¥590198812-199001

NO.2

main82670-90K00iBJ7#,LJ7#..LX,STD,VX¥590198411-199001

main82670-90K01iBJ70,73,75..LX,STD¥580198808-199001

main82671-28010iRJ7#..EFI¥670198908-199001

NO.1

main82671-28020iRJ7#..EFI¥790198812-198908

NO.1

82823CAP, TERMINAL, NO.1

main82823-12020iLJ70..LHD..VX;BJ71,LJ7#,RJ70..(LX,STD)..(CBR,TD)¥320198411-199001

ALTERNATOR

main82823-17010iRJ7#..EFI¥700198812-199001

ALTERNATOR

main82823-22060iBJ70,73,75..LX,STD¥910198808-199001

ALTERNATOR

main82823-30060iLJ70..RHD..VX¥780198810-199001

ALTERNATOR

main82823-32020iLJ70..RHD..VX¥350198801-198810

ALTERNATOR

main82823-90300iLJ70..LHD..VX;BJ7#,LJ7#,RJ7#..LX,STD¥220198411-199001

MAGNET SW.(WINCH)

9011906005

main90119-06005¥80

9165140612

main91651-40612¥70

9165140616

main91651-40616¥60

11 parts on this diagram · 6 diagrams in section
