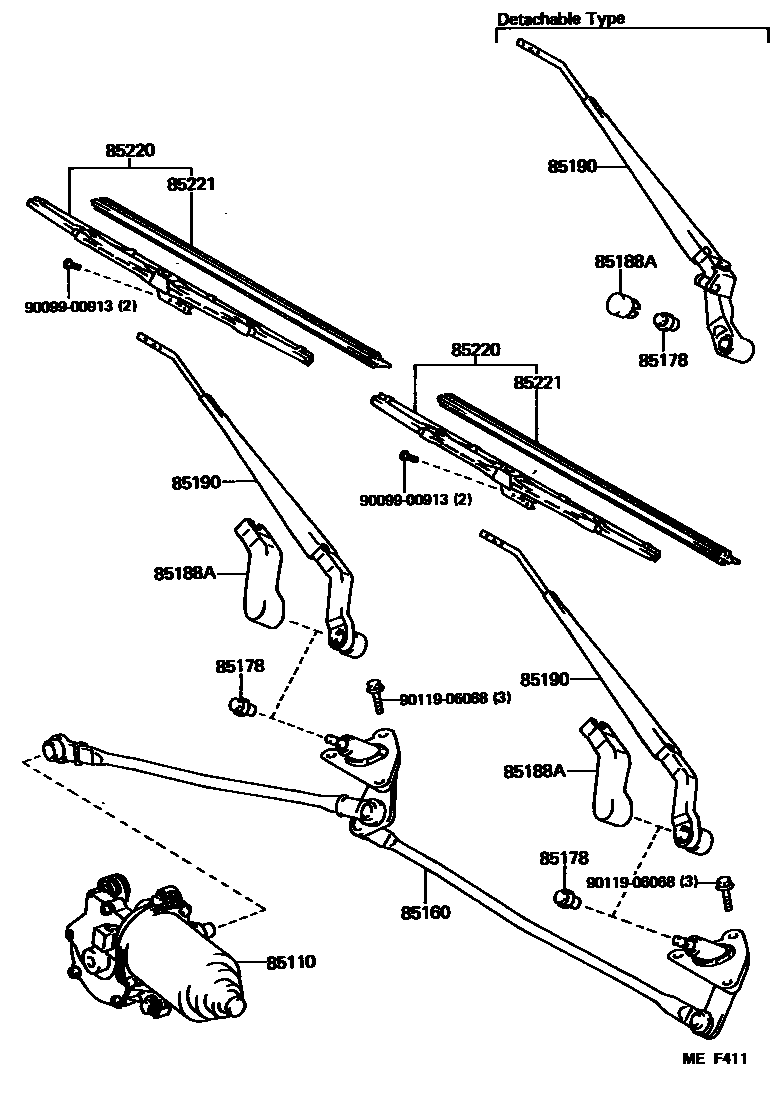

Toyota LAND CRUISER — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-90K00iLJ70..RHD¥24,200198608-198708

sub85110-90K08¥27,100

main85110-90K01iBJ70..RHD¥24,200198608-198708

sub85110-90K09¥27,100

main85110-90K02iLJ70,RJ70..HT¥24,200198411-198708

12V

sub85110-90K10¥27,100

main85110-90K03iBJ7#..LHD..(LX,STD)¥24,200198411-198708

24V

sub85110-90K11¥27,100

main85110-90K08iLJ70..RHD¥27,100198708-199001

main85110-90K09iBJ70..RHD¥27,100198708-198808

main85110-90K10iBJ73,LJ7#,RJ70..LHD¥27,100198708-199001

12V

main85110-90K11iBJ7#..LHD..(LX,STD)¥27,100198708-199001

24V

85160LINK ASSY, WINDSHIELD WIPER

main85160-90K01iBJ73,LJ73,RJ73;BJ75,LJ70..PIC,SOT¥10,800198411-199001

sub85150-60160¥10,300

main85160-90K02iBJ70,LJ70..RHD¥10,800198608-199001

sub85150-60130¥10,300

main85160-90K04iBJ70,71,75,LJ70,RJ70..LHD..HT¥10,900198411-199001

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08016iBJ7#,LJ70,RJ70¥230198411-199001

85188ACAP, WINDSHIELD WIPER PIVOT, NO.2

main85261-90K00iLJ70..SOT;BJ73,LJ73,RJ73¥300198411-199001

W/*DTY

main85261-90K01iBJ70,LJ70..RHD¥580198608-199001

main85261-90K02iBJ7#,LJ70,RJ70..LHD..(STD,VX)¥580198411-199001

W/*FTY

85190ARM ASSY, WINDSHIELD WIPER

main85190-90K01iLJ70..SOT;BJ73,LJ73,RJ73¥4,650198411-199001

W/*DTY,LH

main85190-90K02iBJ70,LJ70..RHD¥3,790198608-199001

RH

main85190-90K03iBJ70,71,75,LJ70,RJ70..LHD..HT¥3,790198411-199001

LH

main85190-90K05iBJ73;BJ75..PIC¥3,580198411-199001

W/*FTY,LH

main85210-90K01iLJ70..SOT;BJ73,LJ73,RJ73¥5,100198411-199001

W/*DTY,RH

main85210-90K02iBJ70,LJ70..RHD¥3,580198608-199001

LH

main85210-90K03iBJ70,71,75,LJ70,RJ70..LHD..HT¥3,790198411-199001

RH

main85210-90K05iBJ73,LJ73,RJ73..STD¥4,020198411-199001

W/*FTY,RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12490iLJ70..SOT;BJ73,LJ73,RJ73¥2,280198411-199001

W/*DTY,LH

sub85220-12500¥2,520

main85220-12500iBJ7#,LJ70,RJ7#..LHD..STD¥2,520198411-199001

W/*FTY,LH

main85220-12570iBJ70,LJ70..RHD¥2,510198608-199001

RH

sub85212-37010¥2,280

main85220-22350iLJ70..SOT;BJ73,LJ73,RJ73¥2,100198411-199001

W/*DTY,RH

sub85212-60030¥2,090

main85220-22450iBJ7#,LJ70,RJ7#..LHD¥2,100198411-199001

W/*FTY,RH

sub85212-60030¥2,090

main85220-22470iBJ70,LJ70..RHD¥2,100198608-199001

LH

sub85220-22481¥2,100

85221BLADE, WINDSHIELD WIPER

main85221-12210iBJ7#,LJ7#,RJ7#..LHD¥720198411-199001

LH

sub85214-12H90¥680

main85221-12230iBJ70,LJ70..RHD¥680198608-199001

RH

sub85214-12H90¥680

main85221-22090iBJ7#,LJ7#,RJ7#..LHD¥580198411-199001

RH

sub85214-12H90¥680

main85221-89103iBJ70,LJ70..RHD¥580198608-199001

LH

sub85214-12H90¥680

9009900913

main90099-00913¥170

9011906068

main90119-06068¥130

9 parts on this diagram · 1 diagram in section
