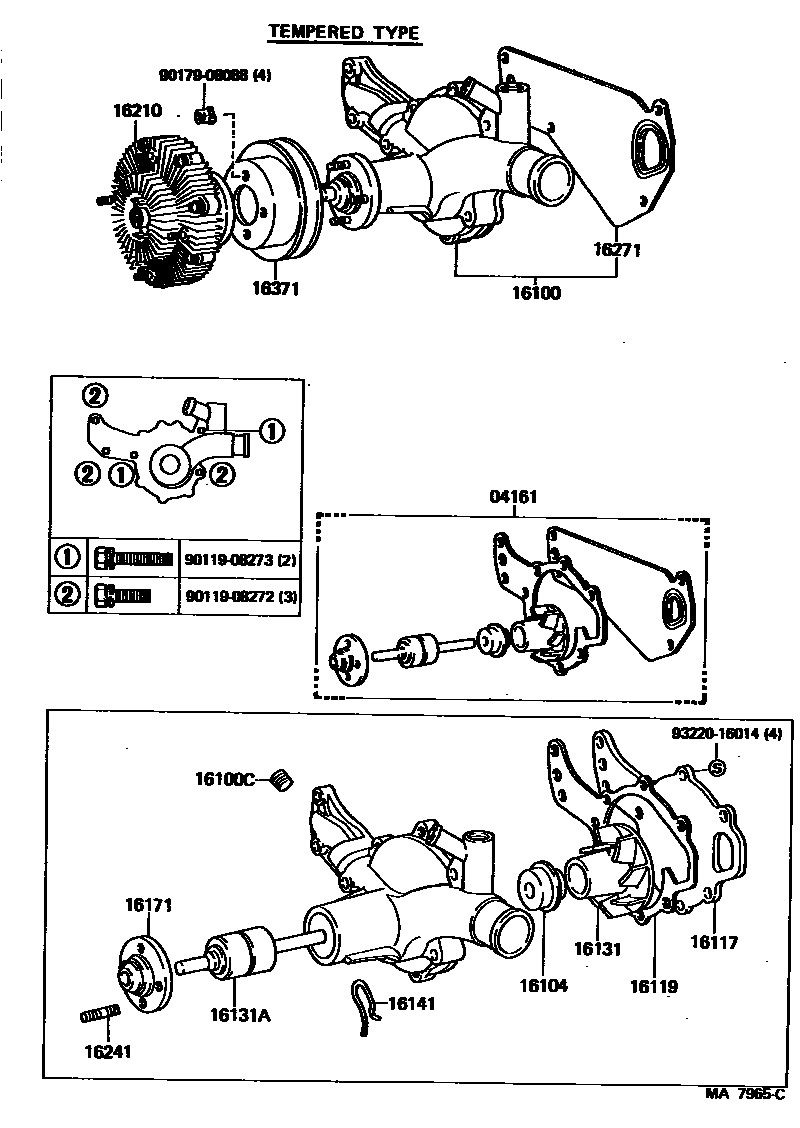

Toyota LAND CRUISER — WATER PUMP

0001 1 0003 1 0004 1 0005 1

04161PUMP KIT, WATER

main04161-56080i13BT..BJ71¥6,600198411-199001

sub04161-56081

16100PUMP ASSY, ENGINE WATER

main16100-39345i22R..RJ7#¥12,500198411-198812

sub16100-39346¥10,500

main16100-39346i22R#..RJ7#¥10,500198812-199001

main16100-59105i13BT..BJ71¥16,600198411-199001

main16100-59137i2L#..LJ7#¥11,300198411-199001

sub16100-59138¥11,200

main16100-59185i3B..BJ70,73,75¥14,200198808-199001

sub16100-59186¥14,900

16100CPLUG, W/HEAD TAPER SCREW

main15184-15010i13BT,3B..BJ7#¥450198411-199001

16104SEAL SET, WATER PUMP

main16104-52011i3B..BJ7#¥4,920198411-198507

sub16104-52012¥4,650

main16104-52013i13BT,3B..BJ7#¥4,710198507-199001

16117PLATE, WATER PUMP

main16117-56040i13BT..BJ71¥1,650198411-199001

main16117-58010i3B..BJ70,73,75¥1,010198808-199001

16119GASKET, WATER PUMP BODY

main16119-56040i13BT,3B..BJ7#¥640198411-199001

sub16119-56041¥550

16131ROTOR, WATER PUMP

main16131-56040i13BT,3B..BJ7#198411-199001

16131ABEARING, WATER PUMP

main90369-38001i13BT,3B..BJ7#¥3,050198411-199001

16141WIRE, WATER PUMP BEARING RETAINING

main16141-76010i13BT..BJ71¥330198411-199001

16171SEAT, WATER PUMP PULLEY

main16171-35010i22R#..RJ7#¥1,760198503-199001

main16171-38022i22R..RJ70¥1,780198411-198503

main16171-54011i2L#..LJ7#¥1,900198411-199001

main16171-61071i13BT,3B..BJ7#¥1,780198411-199001

16210COUPLING ASSY, FLUID

main16210-38060i22R#..RJ7#¥29,100198411-199001

main16210-54070i2L#..LJ7#¥29,000198411-199001

main16210-54190i3B..BJ73..VM¥38,300198904

W/AIR CONDITIONER

sub16210-54200¥36,200

main16210-56040i13BT,3B..BJ7#..LX,STD¥32,400198411-199001

main16210-58012i3B..BJ73..VM¥38,300198510-198703

main16210-58020i3B..BJ73..VM198703-198708

sub16210-58021¥35,200

main16210-58021i3B..BJ73..VM¥35,200198708-199001

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-13020i2L#..LJ7#¥380198411-199001

main16198-41170i13BT,3B..BJ7#¥230198411-199001

main16241-28020i22R#..RJ7#¥330198411-199001

16271GASKET, WATER PUMP

main16271-54012i2L#..LJ7#¥920198411-198912

sub16271-54013¥870

main16271-54014i2LT..LJ7#¥850198912

main16271-56020i13BT,3B..BJ7#¥1,470198411-198808

sub16271-56030¥930

main16271-56030i13BT,3B..BJ7#¥930198808-199001

sub16271-56031¥930

16371PULLEY, FAN

main16173-35020i22R#..RJ7#¥2,520198411-199001

main16371-54020i2L#..LJ7#¥4,680198411-199001

main16371-56040i13BT,3B..BJ7#¥3,370198411-199001

main16371-58030i3B..BJ70,73,75¥3,230198808-199001

9011908272

main90119-08272¥190

9011908273

main90119-08273¥210

9017908088

main90179-08088¥160

9322016014

main93220-16014¥80

18 parts on this diagram · 4 diagrams in section
